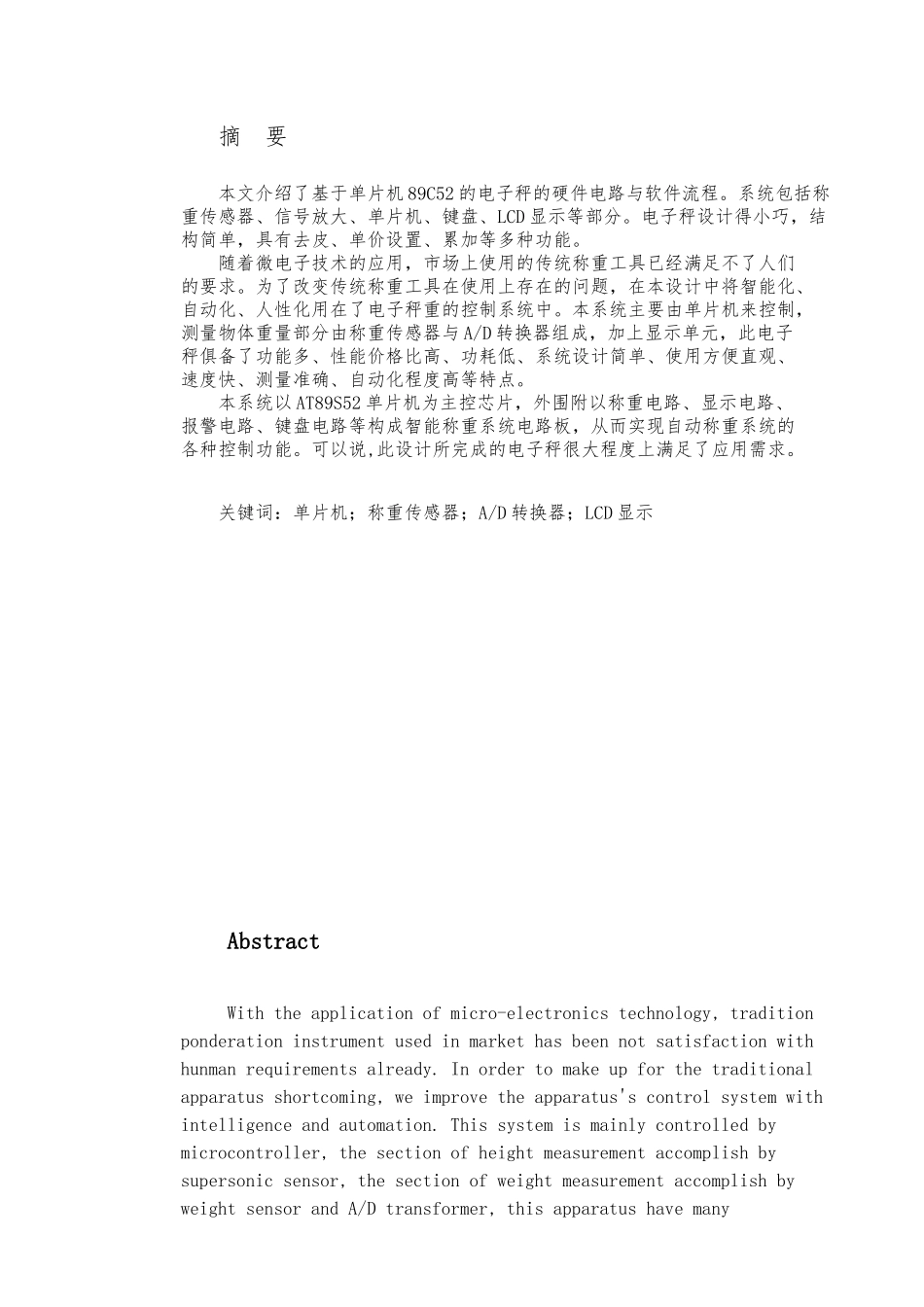

摘 要本文介绍了基于单片机 89C52 的电子秤的硬件电路与软件流程。系统包括称重传感器、信号放大、单片机、键盘、LCD 显示等部分。电子秤设计得小巧，结构简单，具有去皮、单价设置、累加等多种功能。随着微电子技术的应用，市场上使用的传统称重工具已经满足不了人们的要求。为了改变传统称重工具在使用上存在的问题，在本设计中将智能化、自动化、人性化用在了电子秤重的控制系统中。本系统主要由单片机来控制，测量物体重量部分由称重传感器与 A/D 转换器组成，加上显示单元，此电子秤俱备了功能多、性能价格比高、功耗低、系统设计简单、使用方便直观、速度快、测量准确、自动化程度高等特点。本系统以 AT89S52 单片机为主控芯片，外围附以称重电路、显示电路、报警电路、键盘电路等构成智能称重系统电路板，从而实现自动称重系统的各种控制功能。可以说,此设计所完成的电子秤很大程度上满足了应用需求。关键词：单片机；称重传感器；A/D 转换器；LCD 显示AbstractWith the application of micro-electronics technology, tradition ponderation instrument used in market has been not satisfaction with hunman requirements already. In order to make up for the traditional apparatus shortcoming, we improve the apparatus's control system with intelligence and automation. This system is mainly controlled by microcontroller, the section of height measurement accomplish by supersonic sensor, the section of weight measurement accomplish by weight sensor and A/D transformer, this apparatus have many characteristic such as having more function, consume less energy, small and move easily, low price, measure precisely, the speed is quick, automatic work without people and so on.The system is mainly controlled by the microcontroller AT89S52, the periphery is consist of the circuit of clock and calendar, the circuit of measure height and weight, the circuit of display and print, all of these comprise the circuit board of the intelligent apparatus of height and weight. It can achieve all function...
