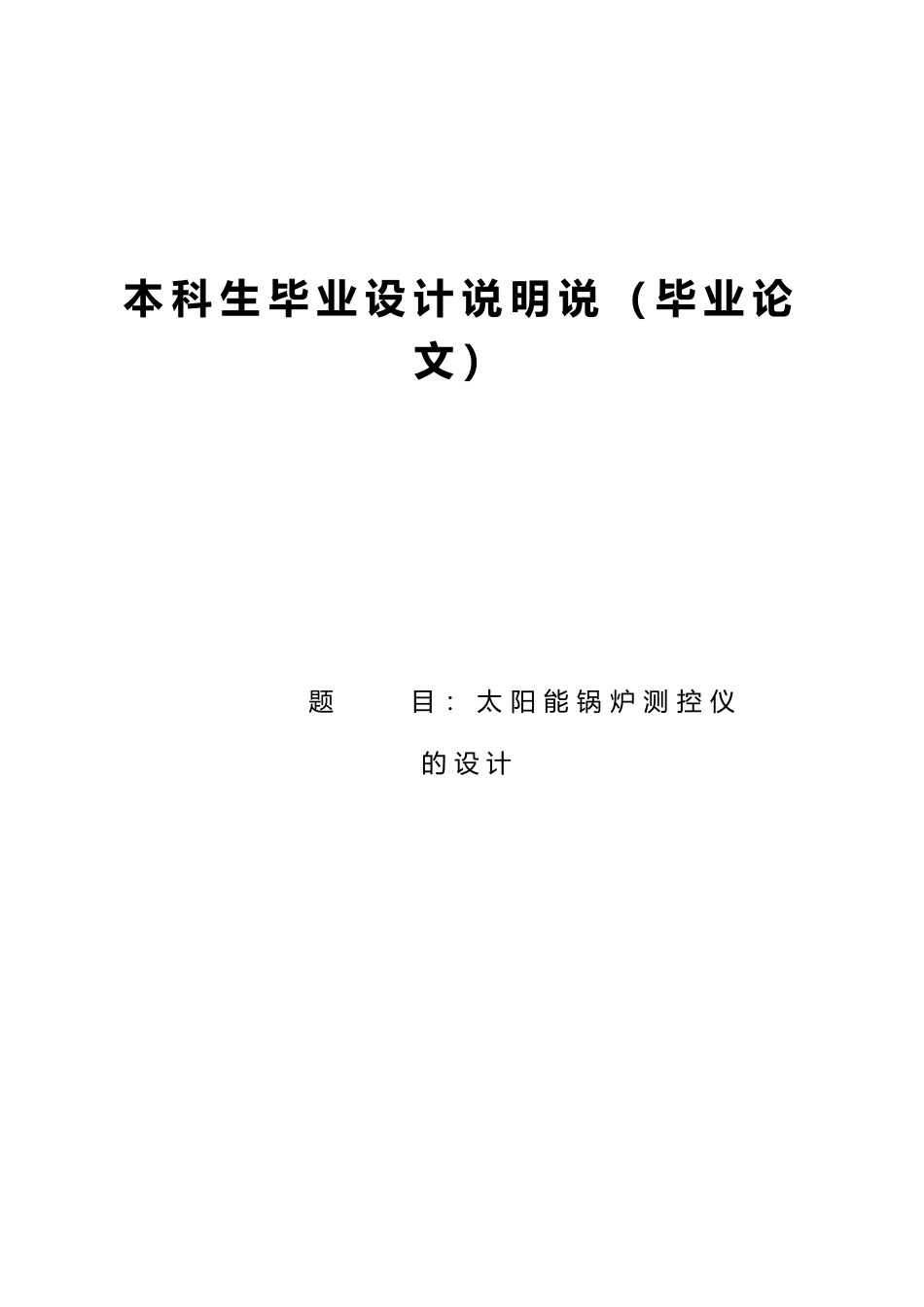

本 科 生 毕 业 设 计 说 明 说 ( 毕 业 论文 )题 目 : 太 阳 能 锅 炉 测 控 仪的 设 计太 阳 能 锅 炉 测 控 仪 的 设 计摘 要本 文 旨 在 设 计 一 种 基 于 PLC 的 太 阳 能 锅 炉 热 水的 测 控 系 统 。 PLC 技 术 广 泛 应 用 于 各 种 自 动 化 领 域 ,本 设 计 采 纳 西 门 子 PLC S7-200 CPU226挂 载 EM231模 拟 量扩 展 模 块 和 EM222数 字 量 扩 展 模 块 加 上 LED 显 示 屏 、传 感 器 、 控 制 面 板 等 组 成 太 阳 能 锅 炉 的 测 控 系 统 ,能 为 太 阳 能 锅 炉 的 控 制 监 测 系 统 提 供 安 全 可 靠 的保 障 。本 设 计 有 两 重 要 部 分 :第 一 部 分 : 太 阳 能 锅 炉 测 控 系 统 的 硬 件 设 计 ;包 括 PLC 、 扩 展 模 块 、 传 感 器 等 器 件 的 选 型 以 与PLC 的 接 线 、 LED 屏 、 控 制 面 板 的 设 计 等 。第 二 部 分 : 太 阳 能 锅 炉 测 控 系 统 的 软 件 设 计 ;包 括 系 统 的 控 制 思 路 和 手 动 控 制 程 序 、 上 水 程 序 、温 差 循 环 程 序 、 锅 炉 辅 助 加 热 程 序 、 防 冻 程 序 、报 警 程 序 等 程 序 流 程 图 。关 键 词 : 太 阳 能 锅 炉 ; PLC S7-200 ; 测 控 仪Design Of Solar Energy Boiler Control InstrumentAbstractThis article aims to design a control system of solar hot water boiler based on PLC. Automation in the field of PLC technology is widely used in industry, measure and control system of the design adopts Siemens PLC S7-200 CPU226 mount EM231 analog expansion module and EM222 digital quantity expansion module and LED display, sensor, control panel solar boiler, control and monitoring system for solar energy boiler to provide safe and reliable guarantee.This article has two important parts:The first part: the hardware design of solar energy boiler control system; includi...
