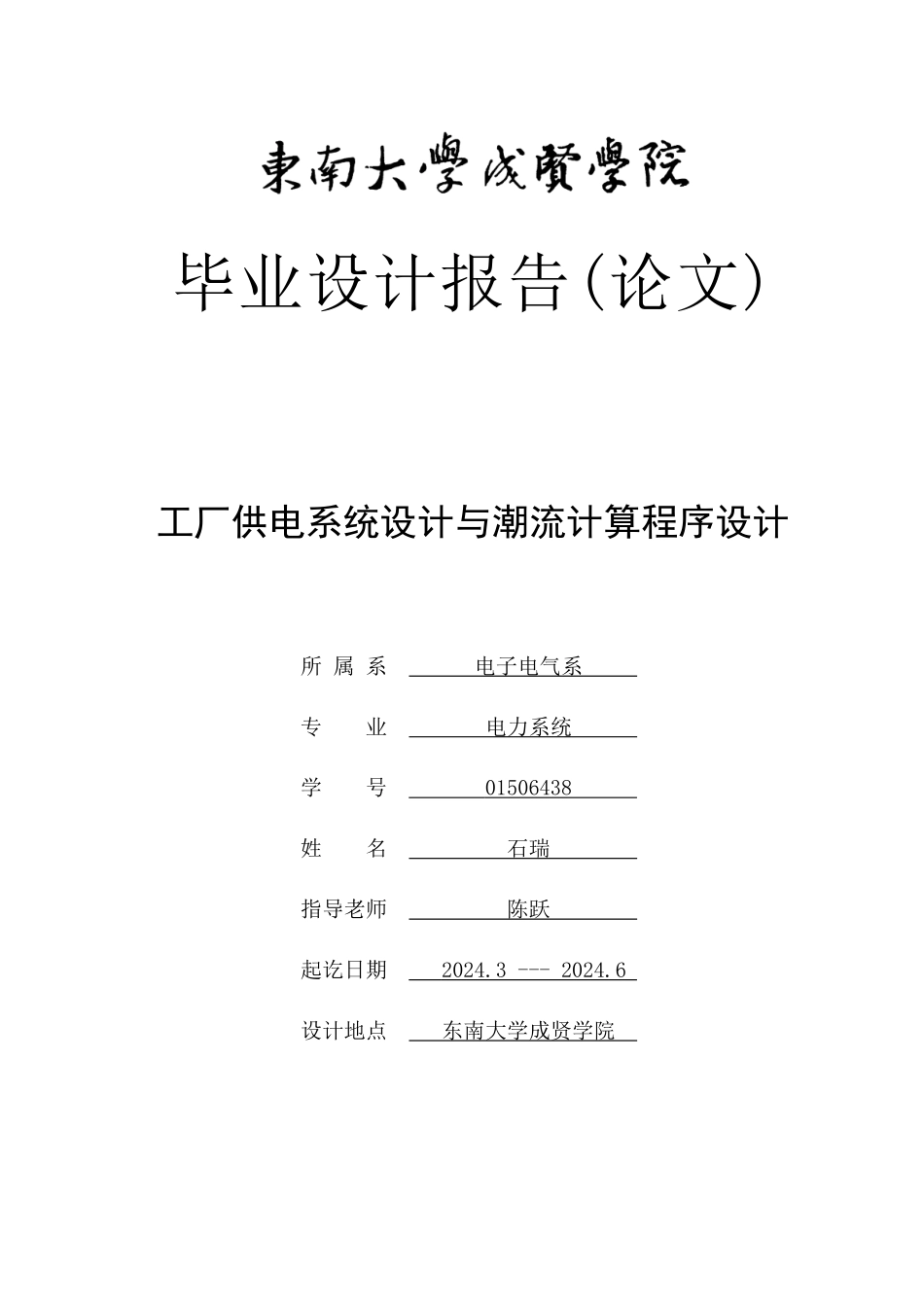

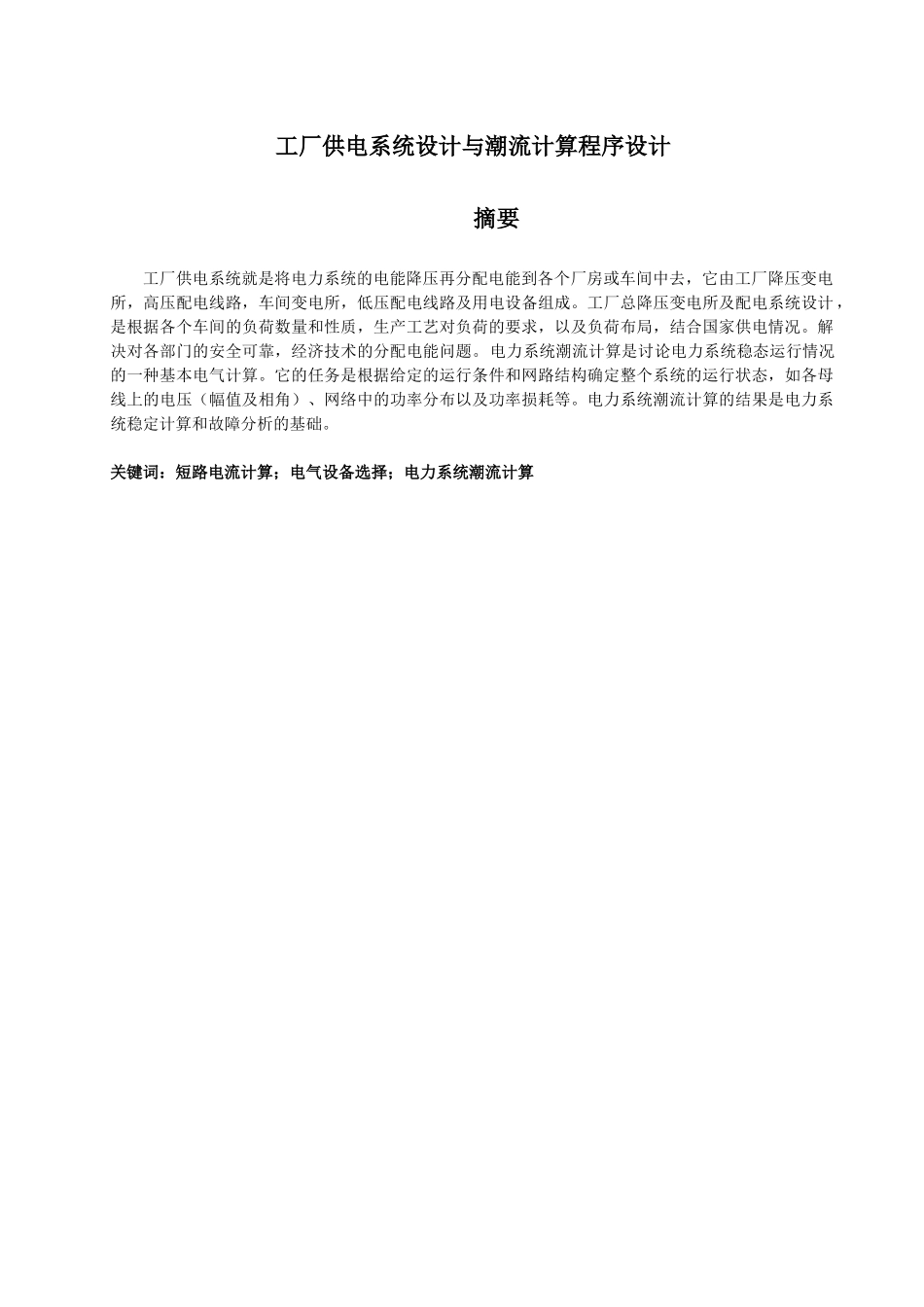

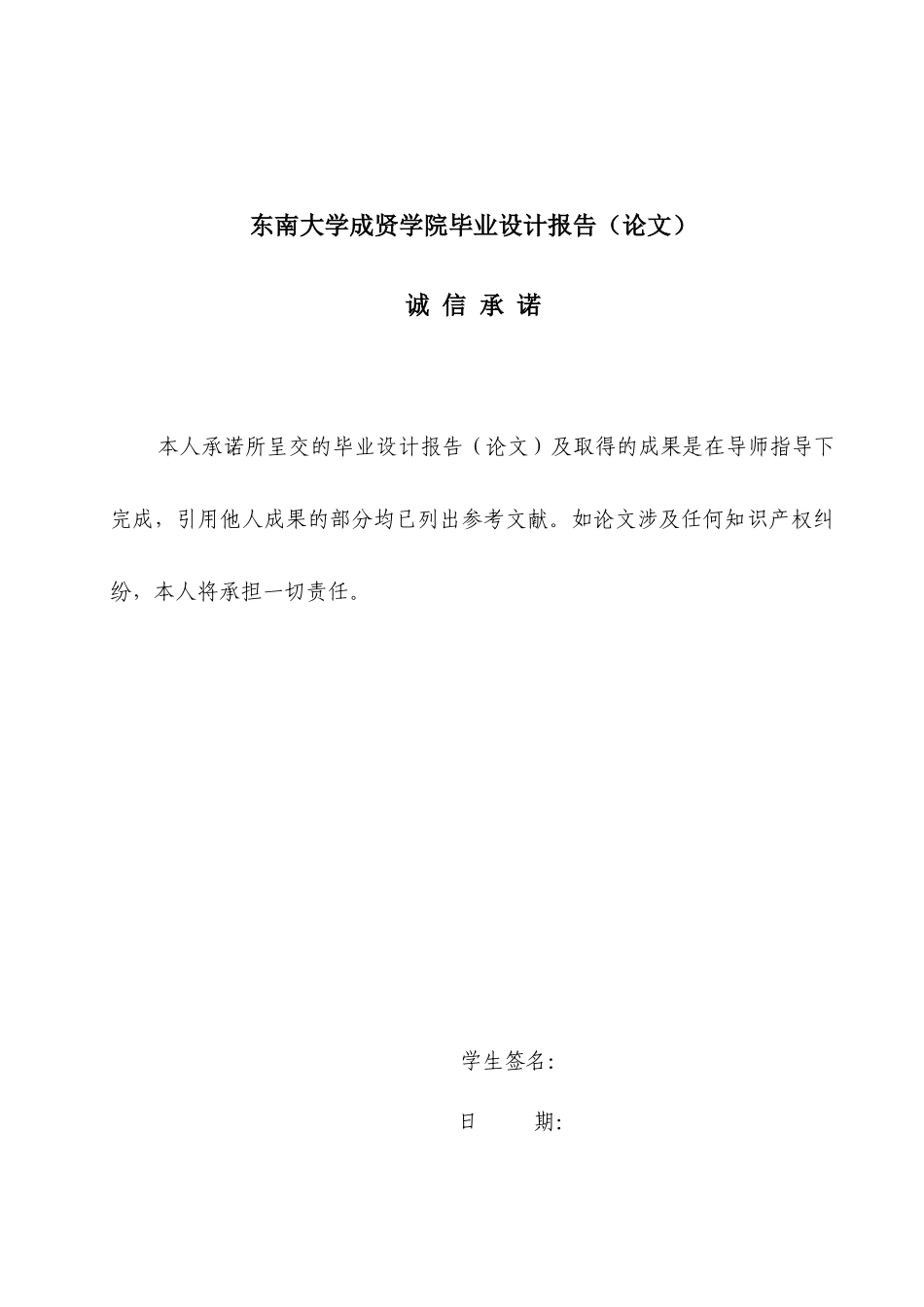

毕业设计报告(论文) 工厂供电系统设计与潮流计算程序设计所 属 系 电子电气系 专 业 电力系统 学 号 01506438 姓 名 石瑞 指导老师 陈跃 起讫日期 2024.3 --- 2024.6 设计地点 东南大学成贤学院 东南大学成贤学院毕业设计报告(论文)诚 信 承 诺本人承诺所呈交的毕业设计报告(论文)及取得的成果是在导师指导下完成,引用他人成果的部分均已列出参考文献。如论文涉及任何知识产权纠纷,本人将承担一切责任。 学生签名: 日 期:工厂供电系统设计与潮流计算程序设计摘要工厂供电系统就是将电力系统的电能降压再分配电能到各个厂房或车间中去,它由工厂降压变电所,高压配电线路,车间变电所,低压配电线路及用电设备组成。工厂总降压变电所及配电系统设计 ,是根据各个车间的负荷数量和性质,生产工艺对负荷的要求,以及负荷布局,结合国家供电情况。解决对各部门的安全可靠,经济技术的分配电能问题。电力系统潮流计算是讨论电力系统稳态运行情况的一种基本电气计算。它的任务是根据给定的运行条件和网路结构确定整个系统的运行状态,如各母线上的电压(幅值及相角)、网络中的功率分布以及功率损耗等。电力系统潮流计算的结果是电力系统稳定计算和故障分析的基础。关键词:短路电流计算;电气设备选择;电力系统潮流计算Factory power supply system design and flow calculation program designAbstract:The factory power supply system is to decline the electric power of electric power system to press to assign electric power again to go to in each factory premises or the car, it is decline by the factory to press a substation, the high pressure goes together with electric wire road, car substation, the low pressure goes together with electric wire road and uses electricity equipments to constitute. The factory always declines to press a substation and goes together with an electricity system design, is the request which produces a craft to the burden according to burden amount and property of each car, and burden layout, combine a national power supply circumstance. Resolve the safe credibility to each secti...
