熟料破碎机的设计说明

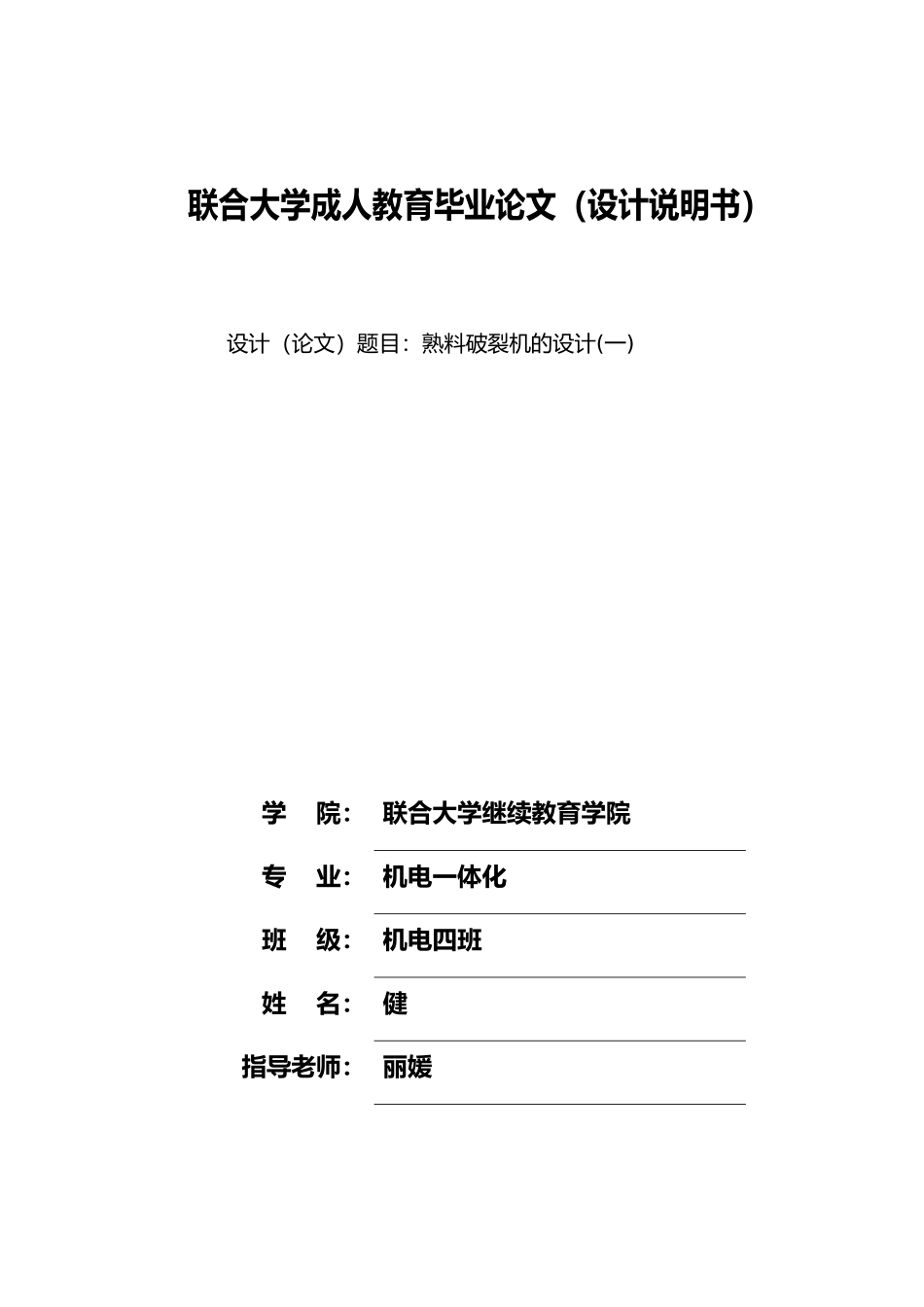

熟料破碎机的设计说明_第1页
1/77
熟料破碎机的设计说明_第2页
2/77

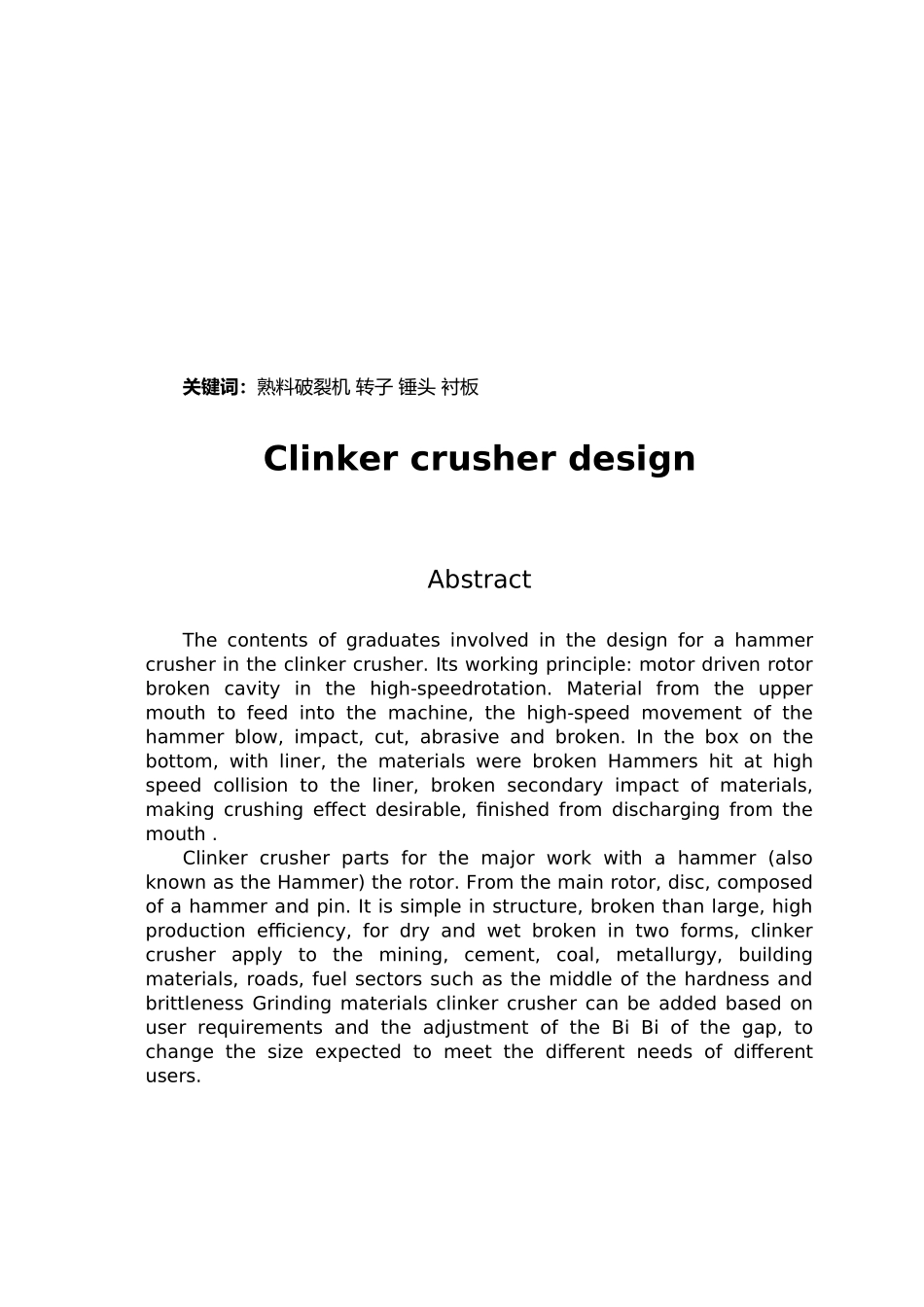

熟料破碎机的设计说明_第3页
3/77
联合大学成人教育毕业论文(设计说明书)设计(论文)题目:熟料破裂机的设计(一)学 院: 联合大学继续教育学院专 业: 机电一体化班 级: 机电四班姓 名: 健指导老师: 丽媛2024 年 12 月 18 日熟料破裂机的设计摘 要本毕业设计容为一种锤式破裂机中的熟料破裂机。其工作原理为:电动机带动转子在破裂腔高速旋转。物料自上部给料口给入机,受高速运动的锤头的打击、冲击、剪切、研磨作用而破裂。在箱体的上、下部,设有衬板,破裂物料被锤头击中高速运动时撞击到衬板,破裂的物料二次撞击,使得破裂效果更为理想,成品从出料口排出。熟料破裂机的主要工作部件为带有锤子(又称锤头)的转子。转子由主轴、圆盘、销轴和锤子组成。它具有结构简单,破裂比大,生产效率高等特点,可作干、湿两种形式破裂,熟料破裂机适用于矿山、水泥、煤炭、冶金、建材、公路、燃化等部门,对中等硬度与脆性物料进行破裂,熟料破裂机可根据用户要否加上蓖条和调整蓖条间隙,改变出料粒度,以满足不同用户的不同需求。关键词:熟料破裂机 转子 锤头 衬板Clinker crusher designAbstractThe contents of graduates involved in the design for a hammer crusher in the clinker crusher. Its working principle: motor driven rotor broken cavity in the high-speedrotation. Material from the upper mouth to feed into the machine, the high-speed movement of the hammer blow, impact, cut, abrasive and broken. In the box on the bottom, with liner, the materials were broken Hammers hit at high speed collision to the liner, broken secondary impact of materials, making crushing effect desirable, finished from discharging from the mouth . Clinker crusher parts for the major work with a hammer (also known as the Hammer) the rotor. From the main rotor, disc, composed of a hammer and pin. It is simple in structure, broken than large, high production efficiency, for dry and wet broken in two forms, clinker crusher apply to the mining, cement, coal, metallurgy, building materials, roads, fuel sectors such as the middle of t...
