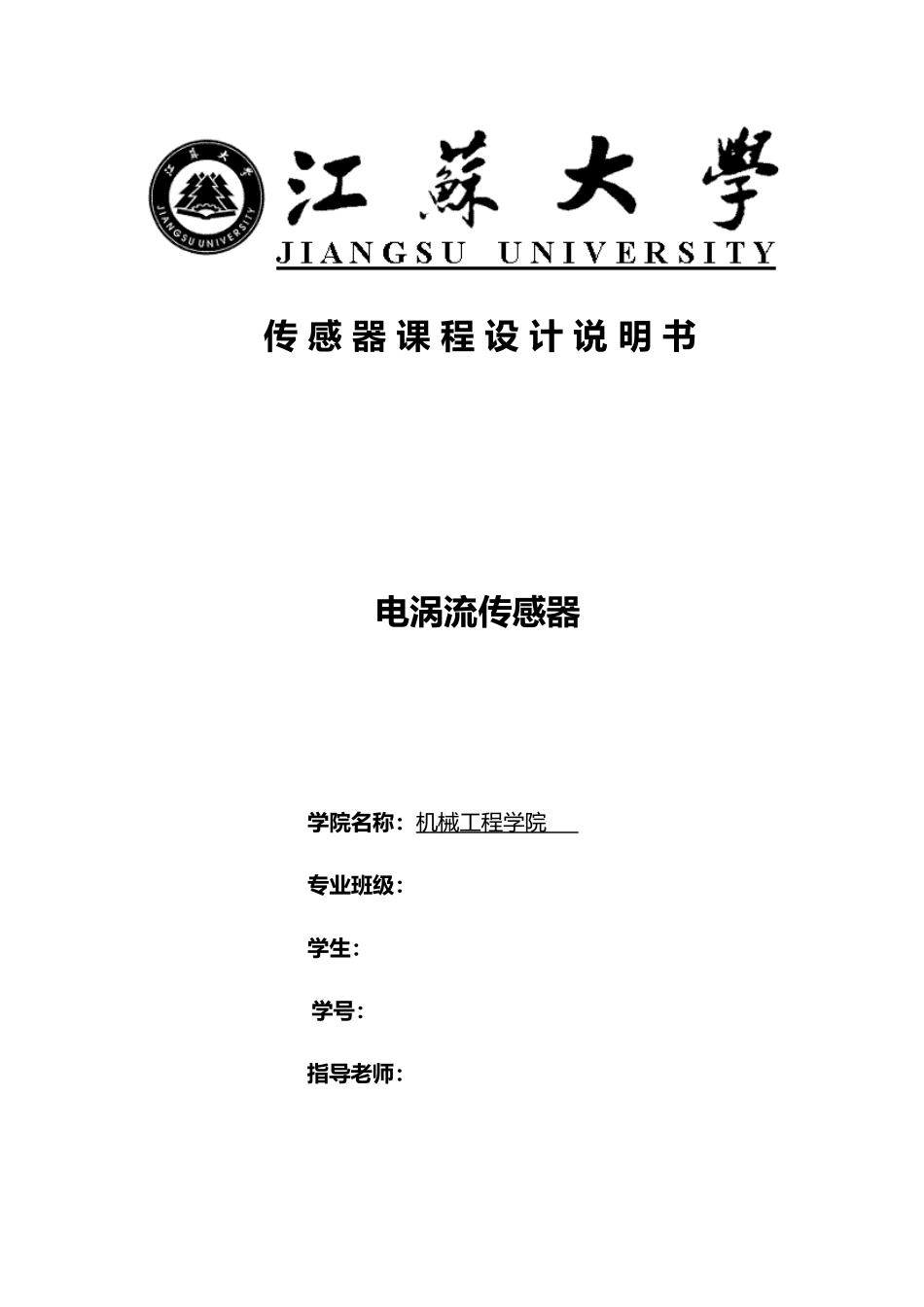

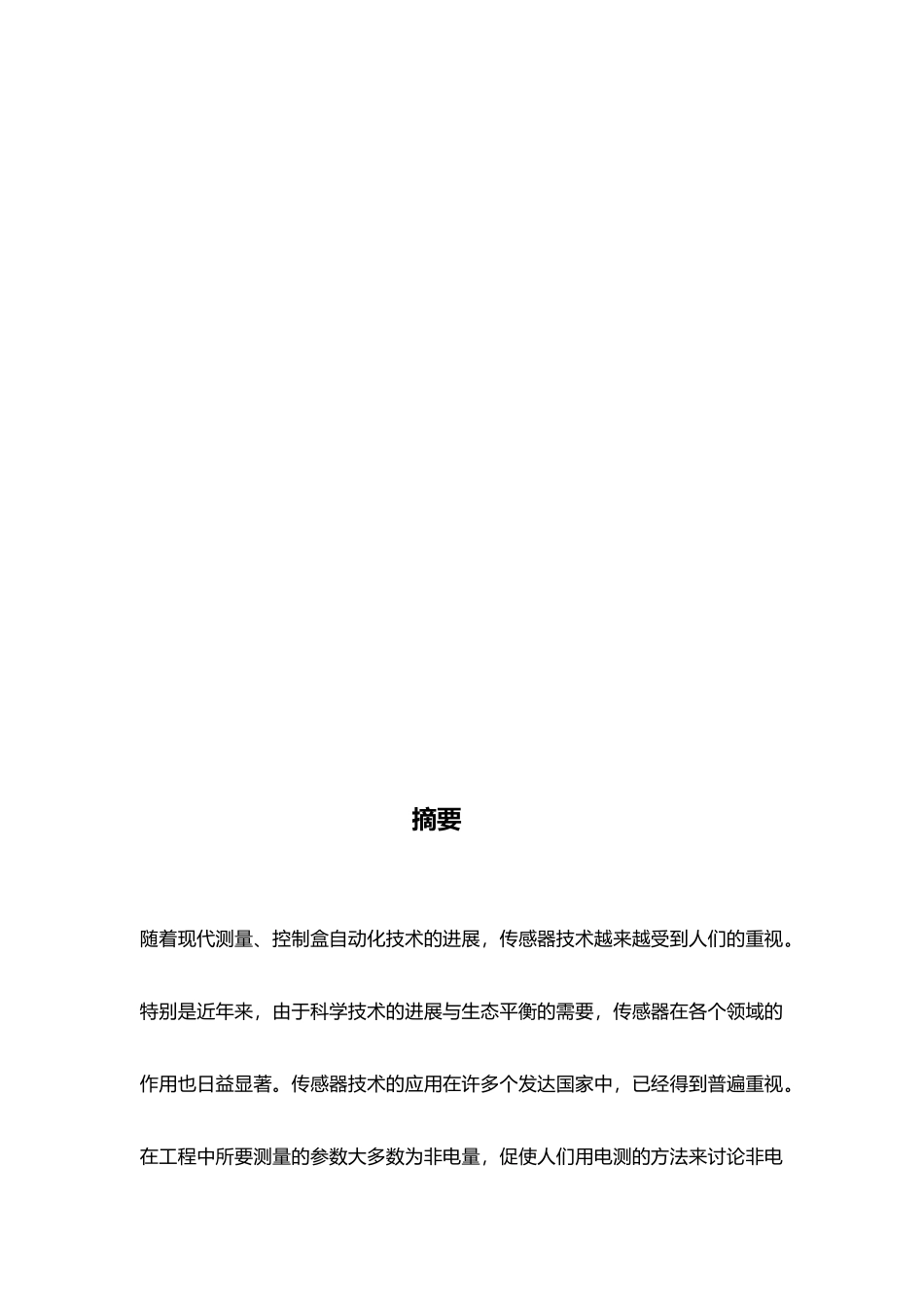

传 感 器 课 程 设 计 说 明 书电涡流传感器学院名称：机械工程学院 专业班级：学生：学号： 指导老师：2024 年 1 月目录摘要 2设计任务书 3电涡流位移传感器设计 4一、总体设计方案 4二、电涡流传感器的基本原理 52.1 电涡流传感器工作原理 52.2 电涡流传感器等效电路分析 52.3 电涡流传感器测量电路原理 7三、实验波形与实验数据 123.1 电涡流透射式 123.2 电涡流反射式 16个人小结 18致 18摘要随着现代测量、控制盒自动化技术的进展，传感器技术越来越受到人们的重视。特别是近年来，由于科学技术的进展与生态平衡的需要，传感器在各个领域的作用也日益显著。传感器技术的应用在许多个发达国家中，已经得到普遍重视。在工程中所要测量的参数大多数为非电量，促使人们用电测的方法来讨论非电量，与讨论用电测的方法测量非电量的仪器仪表，讨论如何能正确和快速的非电量技术。电涡流传感器已成为目前电测技术中非常重要的检测手段，广泛的应用于工程测量和科学实验中。关键词：电涡流式传感器 传感器技术 电量非电量 Abstract：With modern measurement, control box of automation technology development, the sensor technology is more and more attention by people. Especially in recent years, due to the development of science and technology and ecological balance the need, sensor in various fields are also increasingly significant role. The sensor technology application in many developed countries, has been paid attention to. In the project in measured parameters for the most power, the power to urge people to approach to the power, and the research method of the electricity measurement of electric instruments, to study how to correct and fast the power technology. The eddy current sensor has become the electrical measurement technology is very important means of detection, widely used in engineering survey and scientific experiments. Key words：Eddy current sensor, sensor technology ,non-power electrical measurement techniques,设计任务书电涡流传感器能静态和动态地非接触、高线性度、...
