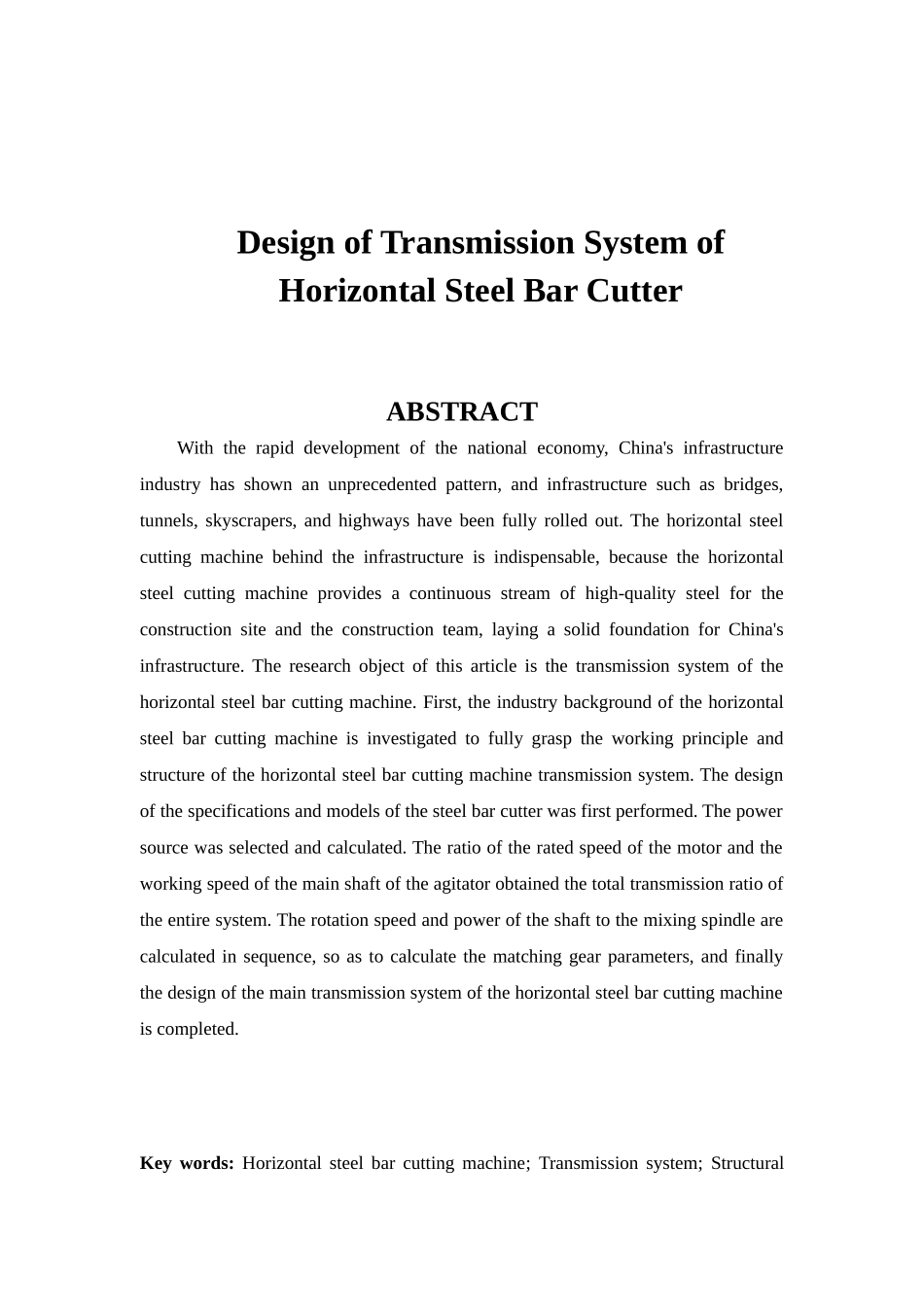

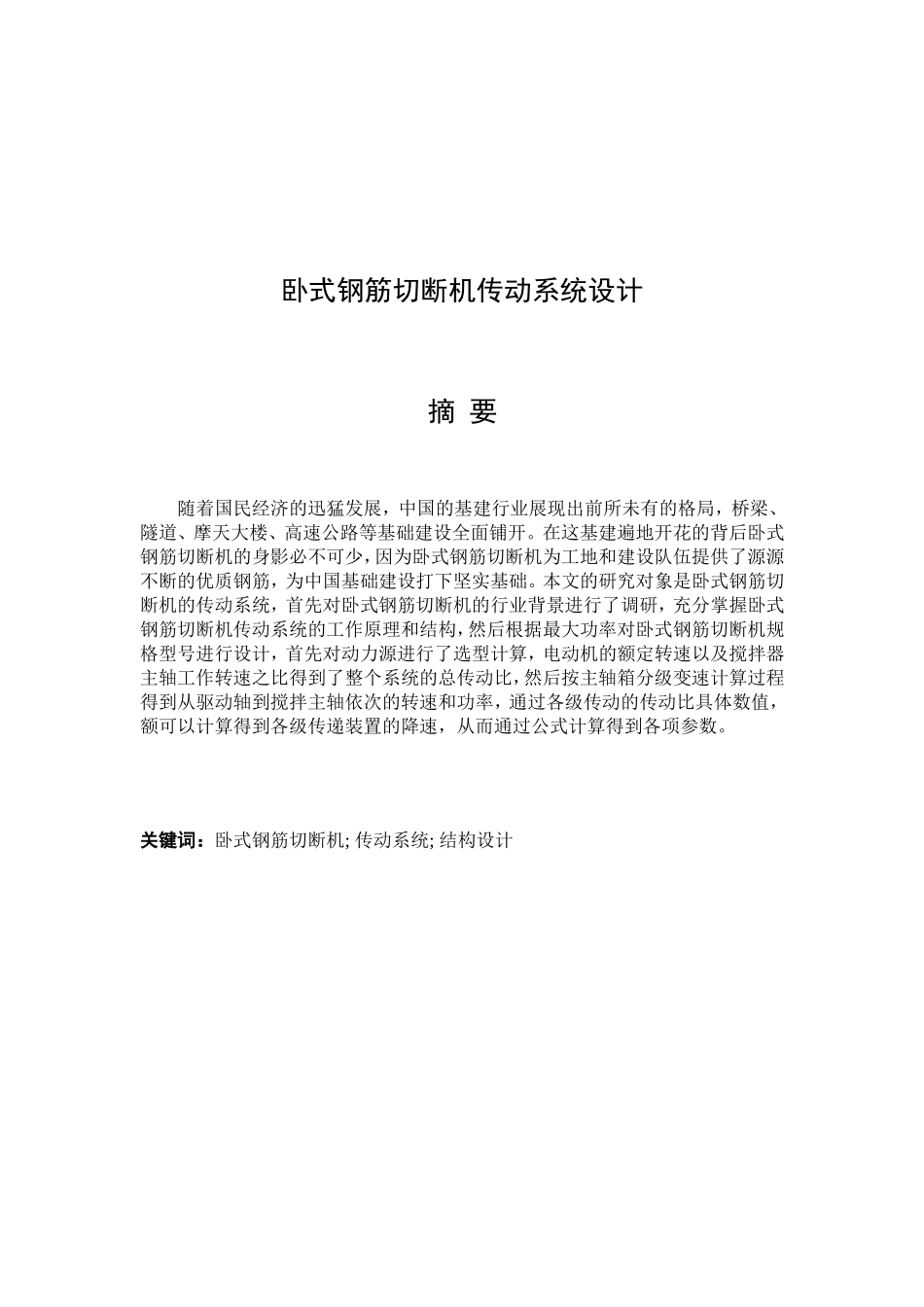

卧式钢筋切断机传动系统设计 摘 要随着国民经济的迅猛发展，中国的基建行业展现出前所未有的格局，桥梁、隧道、摩天大楼、高速公路等基础建设全面铺开。在这基建遍地开花的背后卧式钢筋切断机的身影必不可少，因为卧式钢筋切断机为工地和建设队伍提供了源源不断的优质钢筋，为中国基础建设打下坚实基础。本文的研究对象是卧式钢筋切断机的传动系统，首先对卧式钢筋切断机的行业背景进行了调研，充分掌握卧式钢筋切断机传动系统的工作原理和结构，然后根据最大功率对卧式钢筋切断机规格型号进行设计，首先对动力源进行了选型计算，电动机的额定转速以及搅拌器主轴工作转速之比得到了整个系统的总传动比，然后按主轴箱分级变速计算过程得到从驱动轴到搅拌主轴依次的转速和功率，通过各级传动的传动比具体数值，额可以计算得到各级传递装置的降速，从而通过公式计算得到各项参数。关键词：卧式钢筋切断机; 传动系统; 结构设计 Design of Transmission System of Horizontal Steel Bar CutterABSTRACT With the rapid development of the national economy, China's infrastructure industry has shown an unprecedented pattern, and infrastructure such as bridges, tunnels, skyscrapers, and highways have been fully rolled out. The horizontal steel cutting machine behind the infrastructure is indispensable, because the horizontal steel cutting machine provides a continuous stream of high-quality steel for the construction site and the construction team, laying a solid foundation for China's infrastructure. The research object of this article is the transmission system of the horizontal steel bar cutting machine. First, the industry background of the horizontal steel bar cutting machine is investigated to fully grasp the working principle and structure of the horizontal steel bar cutting machine transmission system. The design of the specifications and models of the steel bar cutter was first performed. The power source was selected and calculated. The ratio of the rated speed of the motor and the...
