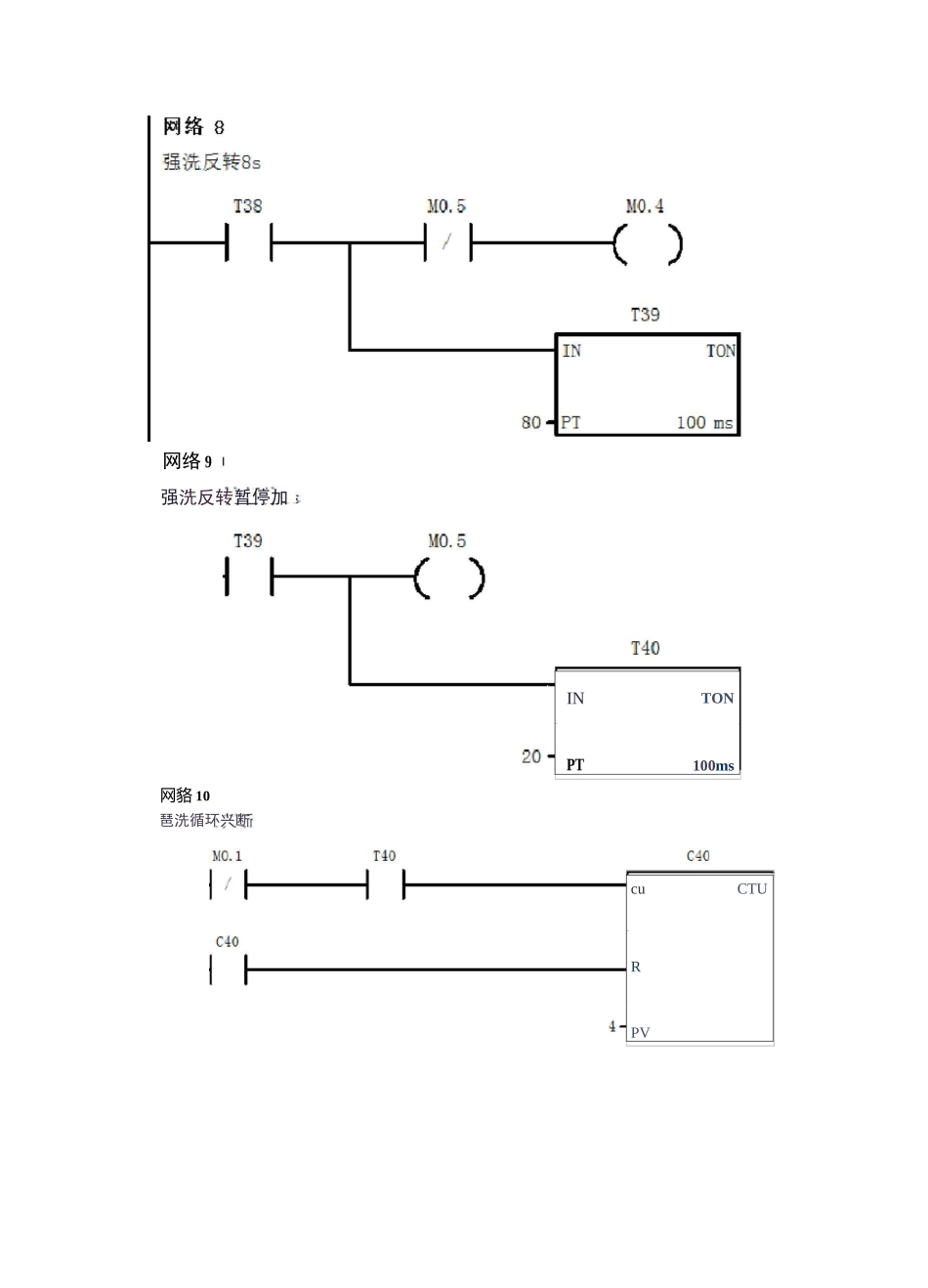

网络 611,1<)111T37玳TOK80--T1001115财络1强诜正转暂停対INTONPI100ms网络 9网貉 10强洗反转暂停加琶洗循环兴断INTONPT100mscuCTURPV网络 14弱洗反转暂停氐T43ML.1TI_)T44INTON50-PTWOms4药貓一呵ICLOIT45TONS.Network1 系统启停和手动停止LDI0.0OM0.0ANC20ANI0.1ANT46=M0.0Network2启动/停止 LDI0.0LDC20CTUC20,2Network3进水LDM0.0ANI0.2ANQ0.3ANQ0.4ANQ0.5=Q0.0Network4强/弱洗选择 LDI0.3LDC30CTUC30,2Network5 强/弱洗控制LDI0.3OM0.1ANC30=M0.1Network6强洗正转 8sLDNM0.1ANT40AI0.2LPSANM0.3=M0.2LPPTONT37,80Network7强洗正转暂停 2sLDT37=M0.3TONT38,20Network8强洗反转 8sLDLPSANT38M0.5=M0.4LPPTONT39,80Network9强洗反转暂停 2sLDT39=M0.5TONT40,20Network10强洗循环判断LDNALDCTUM0.1T40C40C40,4Network11弱洗正转 2sLDANLPSANM0.1T44M0.7=M0.6LPPTONT41,20Network12弱洗暂停 5sLDT41=M0.7TONT42,50Network13弱洗反转 2sLDLPSANT42M1.1=M1.0LPPTONT43,20Network14弱洗反转暂停 5sLDT43=M1.1TONT44,50Network15 弱洗循环判断LDM0.1AT44LDC50CTUC50,2Network16排水LDI0.4OC40OC50OQ0.3ANI0.1ANT45=Q0.3Network17脱水LDI0.5AQ0.3ANT45=Q0.4=M1.2Network18脱水计时 10sLDQ0.4TONT45,100Network19大循环判断LDT45LDC60CTUC60,3Network20报警LDC60OQ0.5ANT46ANI0.1=Q0.5Network21报警计时 10sLDQ0.5TONT46,100Network22LDM0.2OM0.6OM1.2=Q0.1Network23LDM0.4OM1.0=Q0.2ENDI/O 分配表输入输出序号主令I序号对象Q1启/停按钮 SF2I0.01进水电磁阀 MB1Q0.02停止按钮 SF3I0.12洗衣机正转接触器 QA1Q0.13咼水位开关 BG1I0.23洗衣机反转接触器 QA2Q0.24强/弱洗按钮 SF110.34排水电磁阀 MB2Q0.35低水位开关 BG2I0.45脱水电磁离合器Q0.46手动排水开关 SF4I0.56报警蜂鸣器 PBQ0.5
