单立柱巷道式堆垛机机械设计说明书

单立柱巷道式堆垛机机械设计说明书_第1页
1/32
单立柱巷道式堆垛机机械设计说明书_第2页
2/32
单立柱巷道式堆垛机机械设计说明书_第3页
3/32

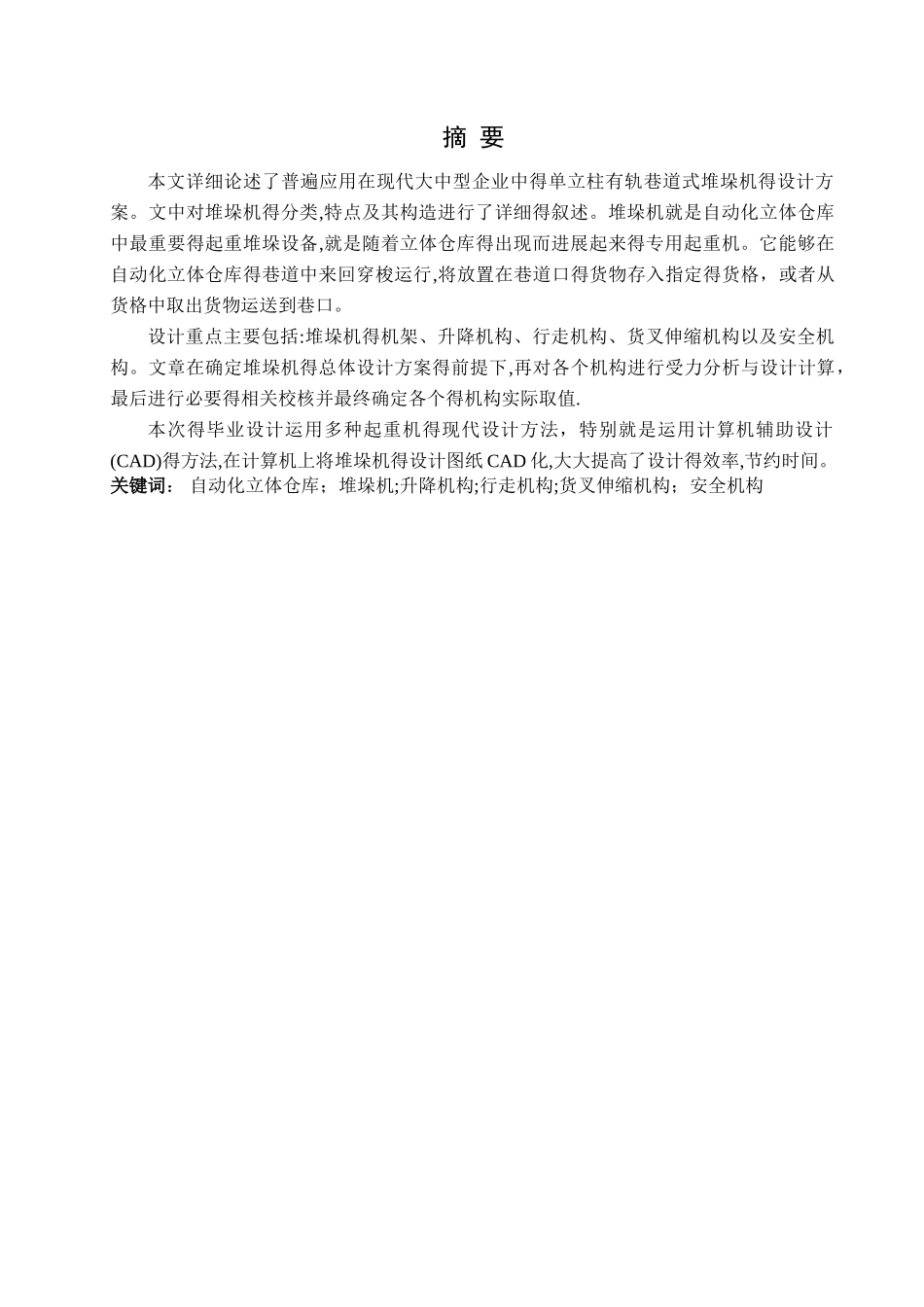

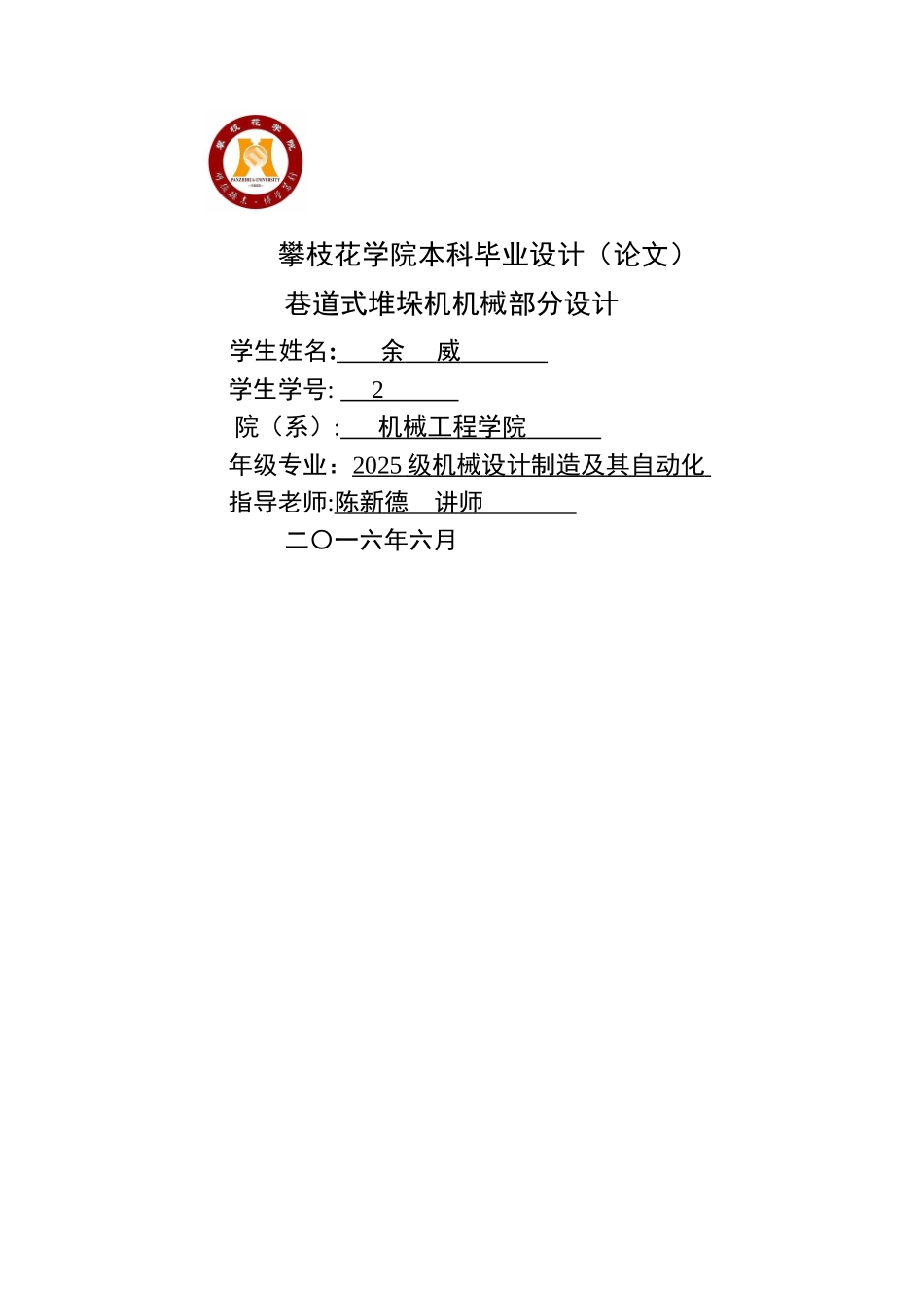

攀枝花学院本科毕业设计(论文) 巷道式堆垛机机械部分设计 学生姓名: 余 威 学生学号: 2 院(系): 机械工程学院 年级专业:2025 级机械设计制造及其自动化 指导老师:陈新德 讲师 二〇一六年六月摘 要本文详细论述了普遍应用在现代大中型企业中得单立柱有轨巷道式堆垛机得设计方案。文中对堆垛机得分类,特点及其构造进行了详细得叙述。堆垛机就是自动化立体仓库中最重要得起重堆垛设备,就是随着立体仓库得出现而进展起来得专用起重机。它能够在自动化立体仓库得巷道中来回穿梭运行,将放置在巷道口得货物存入指定得货格,或者从货格中取出货物运送到巷口。设计重点主要包括:堆垛机得机架、升降机构、行走机构、货叉伸缩机构以及安全机构。文章在确定堆垛机得总体设计方案得前提下,再对各个机构进行受力分析与设计计算,最后进行必要得相关校核并最终确定各个得机构实际取值.本次得毕业设计运用多种起重机得现代设计方法,特别就是运用计算机辅助设计(CAD)得方法,在计算机上将堆垛机得设计图纸 CAD 化,大大提高了设计得效率,节约时间。关键词: 自动化立体仓库;堆垛机;升降机构;行走机构;货叉伸缩机构;安全机构 ABSTERCTThis article has discussed the design of the single—pillar type of Narrow—Aisle Stacker Crane which has been universally used in modern most enterprises in detail 、 This article described the kinds of stakers, features and the structure in detail、 Stacker cranes is the most important part of the automation three-dimensional storehouse among the take heavy crane pile up equipment, it can in the tunnel of automation cube in the shuttle operation of round trip, will locate in tunnel the goods of mouth stock goods shelf; or opposite take out the goods transit in goods shelf go to tunnel mouth、 The design focus mainly include: The stacker's rack, walk organization, fork telescoping mechanism and safe organization 、 Under the premise of overall design scheme of stacking crane, then for organization analyze by force condition calculate、 Finally, check nuclear necessarily and...
