基于51单片机的日历时钟显示系统设计毕业论文

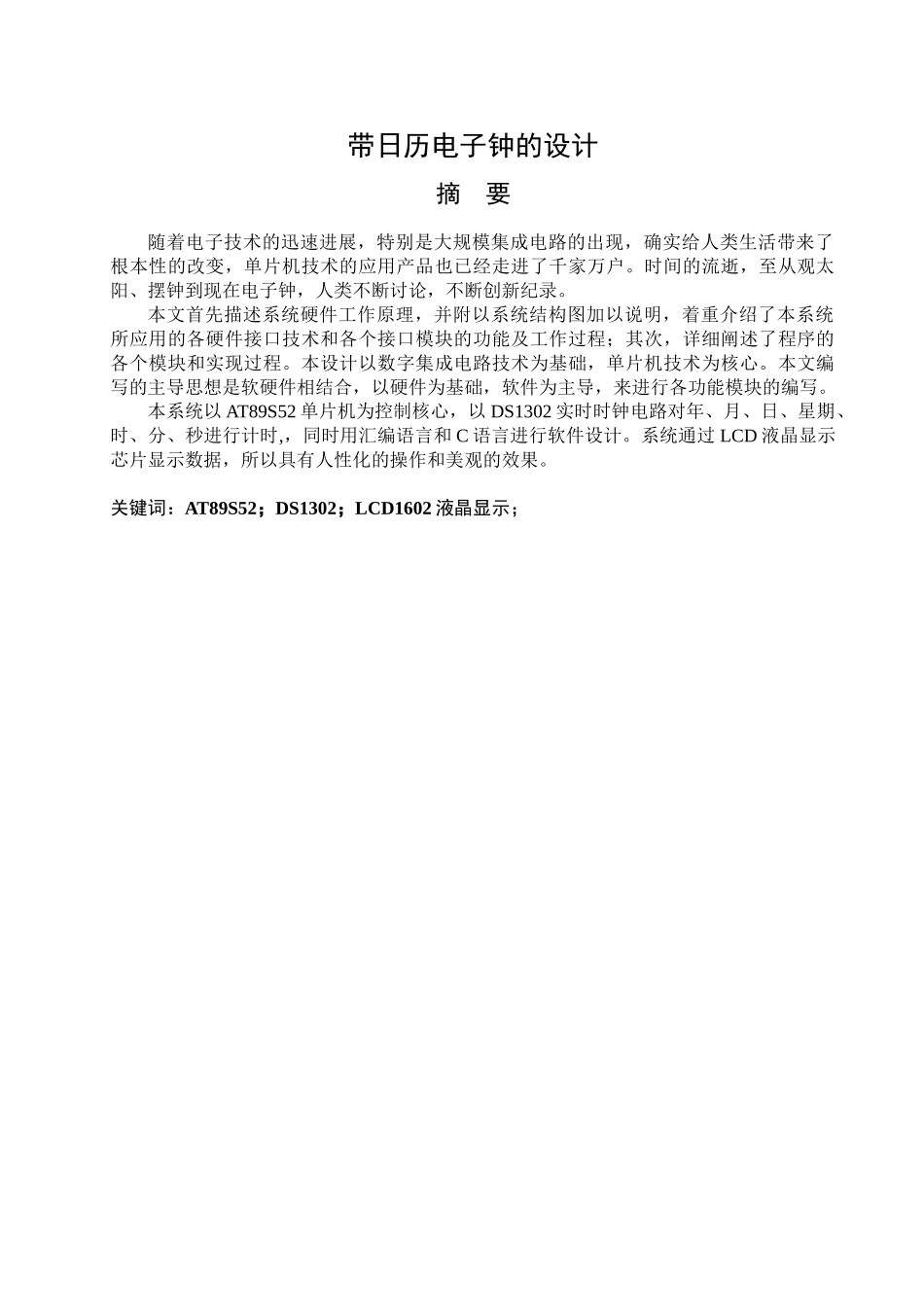

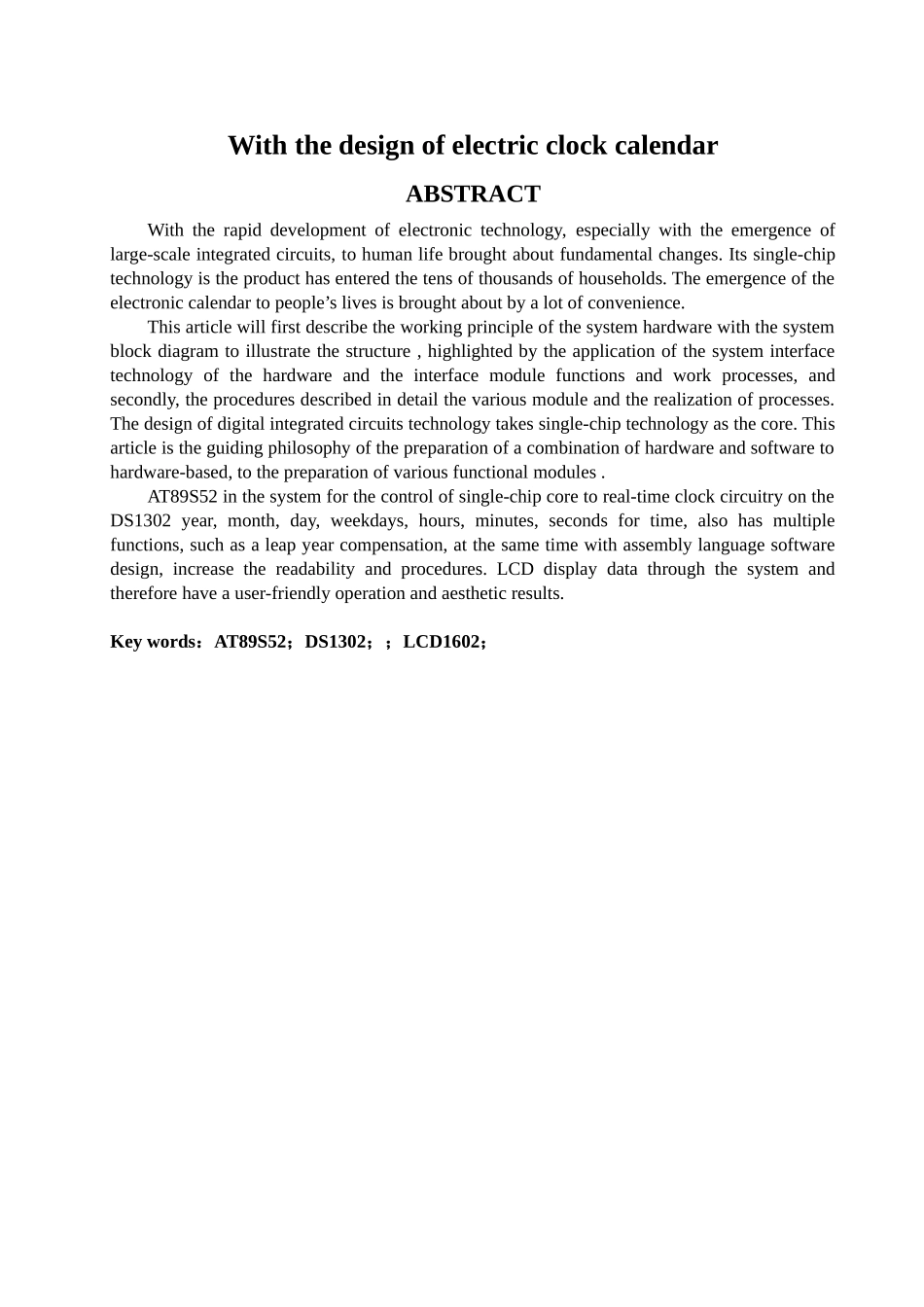

带日历电子钟的设计摘 要随着电子技术的迅速进展，特别是大规模集成电路的出现，确实给人类生活带来了根本性的改变，单片机技术的应用产品也已经走进了千家万户。时间的流逝，至从观太阳、摆钟到现在电子钟，人类不断讨论，不断创新纪录。本文首先描述系统硬件工作原理，并附以系统结构图加以说明，着重介绍了本系统所应用的各硬件接口技术和各个接口模块的功能及工作过程；其次，详细阐述了程序的各个模块和实现过程。本设计以数字集成电路技术为基础，单片机技术为核心。本文编写的主导思想是软硬件相结合，以硬件为基础，软件为主导，来进行各功能模块的编写。本系统以 AT89S52 单片机为控制核心，以 DS1302 实时时钟电路对年、月、日、星期、时、分、秒进行计时,，同时用汇编语言和 C 语言进行软件设计。系统通过 LCD 液晶显示芯片显示数据，所以具有人性化的操作和美观的效果。关键词：AT89S52；DS1302；LCD1602 液晶显示；With the design of electric clock calendarABSTRACTWith the rapid development of electronic technology, especially with the emergence of large-scale integrated circuits, to human life brought about fundamental changes. Its single-chip technology is the product has entered the tens of thousands of households. The emergence of the electronic calendar to people’s lives is brought about by a lot of convenience.This article will first describe the working principle of the system hardware with the system block diagram to illustrate the structure , highlighted by the application of the system interface technology of the hardware and the interface module functions and work processes, and secondly, the procedures described in detail the various module and the realization of processes. The design of digital integrated circuits technology takes single-chip technology as the core. This article is the guiding philosophy of the preparation of a combination of hardware and software to hardware-based, to the preparation of various functional modules .AT89S52 in ...
