基于单片机喷泉控制电路的设计与仿真—-毕业论文设计

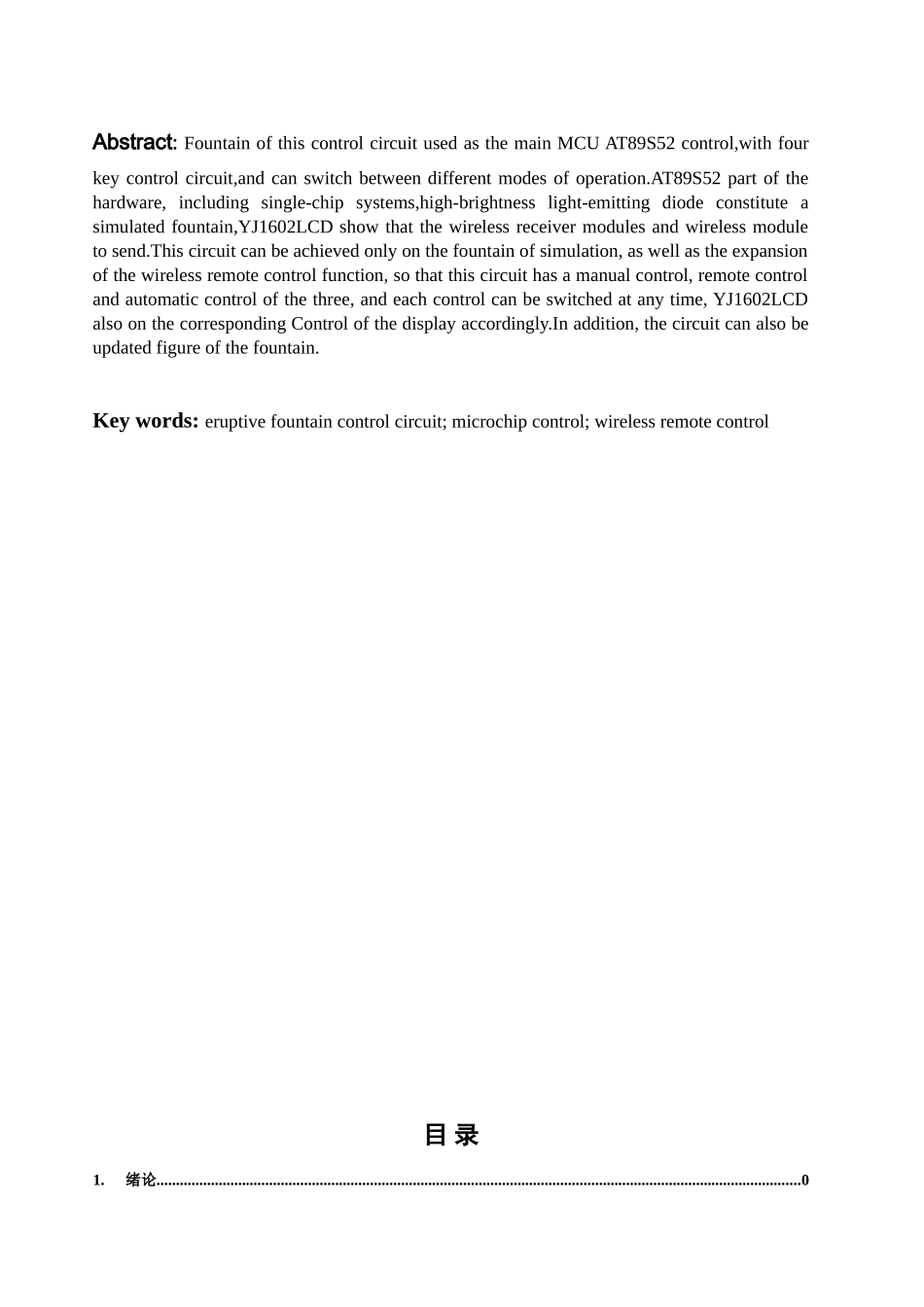

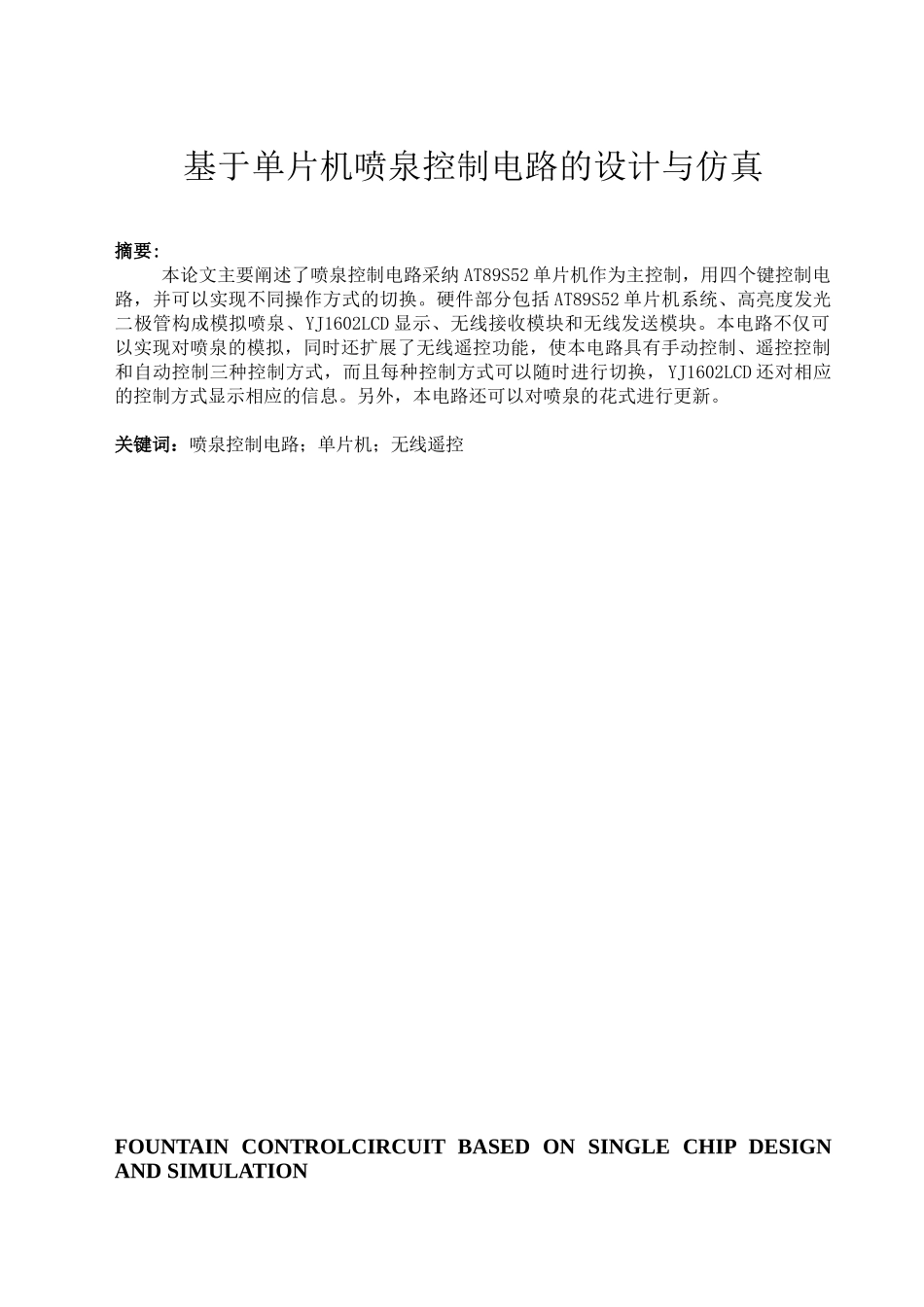

基于单片机喷泉控制电路的设计与仿真摘要:本论文主要阐述了喷泉控制电路采纳 AT89S52 单片机作为主控制，用四个键控制电路，并可以实现不同操作方式的切换。硬件部分包括 AT89S52 单片机系统、高亮度发光二极管构成模拟喷泉、YJ1602LCD 显示、无线接收模块和无线发送模块。本电路不仅可以实现对喷泉的模拟，同时还扩展了无线遥控功能，使本电路具有手动控制、遥控控制和自动控制三种控制方式，而且每种控制方式可以随时进行切换，YJ1602LCD 还对相应的控制方式显示相应的信息。另外，本电路还可以对喷泉的花式进行更新。关键词：喷泉控制电路；单片机；无线遥控FOUNTAIN CONTROLCIRCUIT BASED ON SINGLE CHIP DESIGN AND SIMULATIONAbstract: Fountain of this control circuit used as the main MCU AT89S52 control,with four key control circuit,and can switch between different modes of operation.AT89S52 part of the hardware, including single-chip systems,high-brightness light-emitting diode constitute a simulated fountain,YJ1602LCD show that the wireless receiver modules and wireless module to send.This circuit can be achieved only on the fountain of simulation, as well as the expansion of the wireless remote control function, so that this circuit has a manual control, remote control and automatic control of the three, and each control can be switched at any time, YJ1602LCD also on the corresponding Control of the display accordingly.In addition, the circuit can also be updated figure of the fountain.Key words: eruptive fountain control circuit; microchip control; wireless remote control目 录 1.绪论......................................................................................................................................................................01.1 论文背景...........................................................................................................................................................01.2 综述国内外有关本选题的讨论动态.......................
