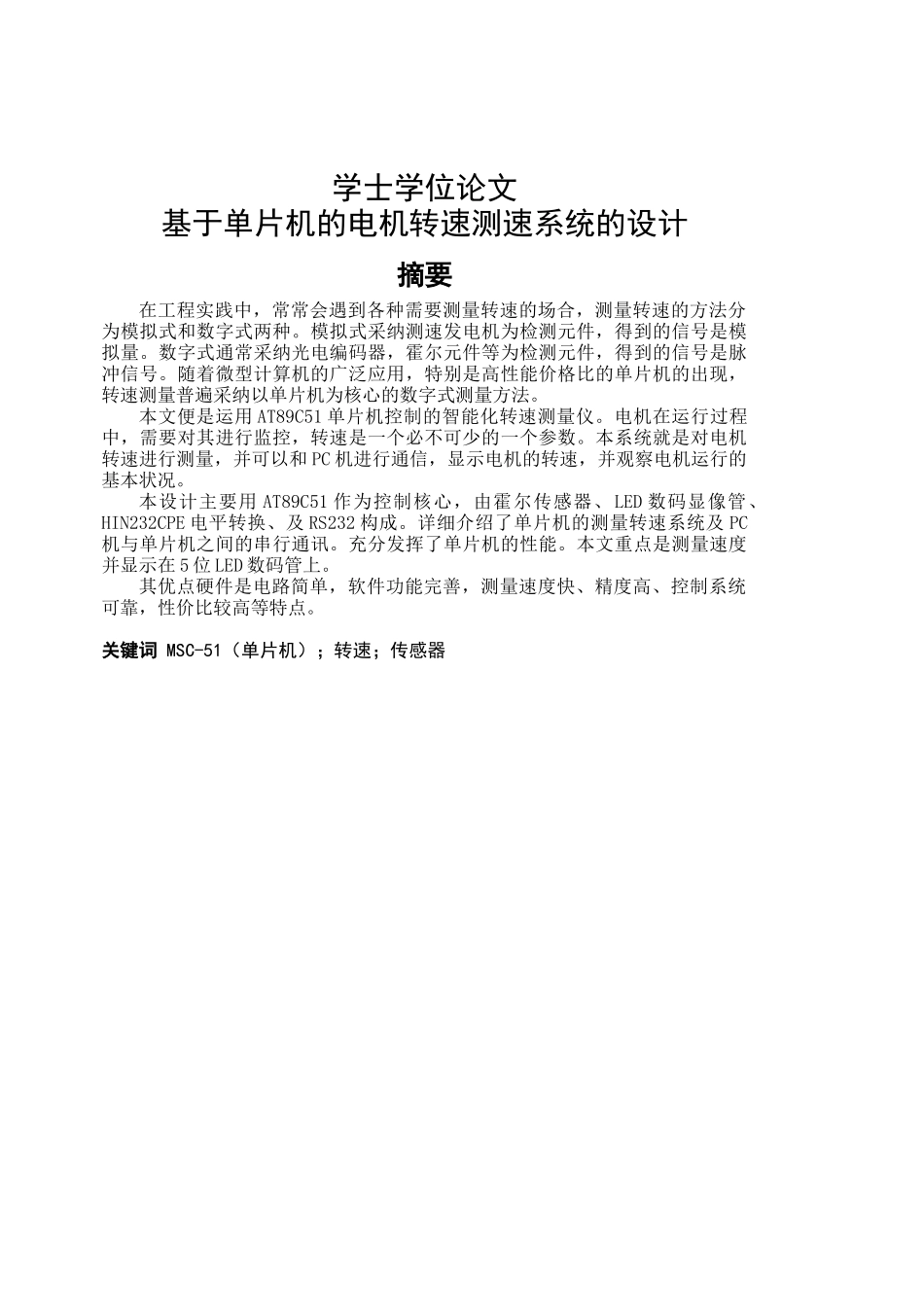

学士学位论文基于单片机的电机转速测速系统的设计摘要在工程实践中，常常会遇到各种需要测量转速的场合，测量转速的方法分为模拟式和数字式两种。模拟式采纳测速发电机为检测元件，得到的信号是模拟量。数字式通常采纳光电编码器，霍尔元件等为检测元件，得到的信号是脉冲信号。随着微型计算机的广泛应用，特别是高性能价格比的单片机的出现，转速测量普遍采纳以单片机为核心的数字式测量方法。本文便是运用 AT89C51 单片机控制的智能化转速测量仪。电机在运行过程中，需要对其进行监控，转速是一个必不可少的一个参数。本系统就是对电机转速进行测量，并可以和 PC 机进行通信，显示电机的转速，并观察电机运行的基本状况。本设计主要用 AT89C51 作为控制核心，由霍尔传感器、LED 数码显像管、HIN232CPE 电平转换、及 RS232 构成。详细介绍了单片机的测量转速系统及 PC机与单片机之间的串行通讯。充分发挥了单片机的性能。本文重点是测量速度并显示在 5 位 LED 数码管上。其优点硬件是电路简单，软件功能完善，测量速度快、精度高、控制系统可靠，性价比较高等特点。关键词 MSC-51（单片机）；转速；传感器[89 C51 based on the speed measurement system in the design]AbstractIn the project practice, we will meet each kind to need frequently to survey the rotational speed the situation, the survey rotational speed method divides into the simulation type and the digital two kinds. The simulation type uses measured that the fast generator is the detecting element, obtains the signal simulates the quantity. Digital usually uses the electro-optical encoder, the Hall part and so on is the detecting element, obtains the signal is the signal impulse. Along with microcomputer's widespread application, specially high performance price compared to monolithic integrated circuit's appearance, the tachometric survey uses generally take the monolithic integrated circuit as the core digital measuring technique I graduated from the Design of the issue is control of the intelligent use of SCM speed measuring instrument....
