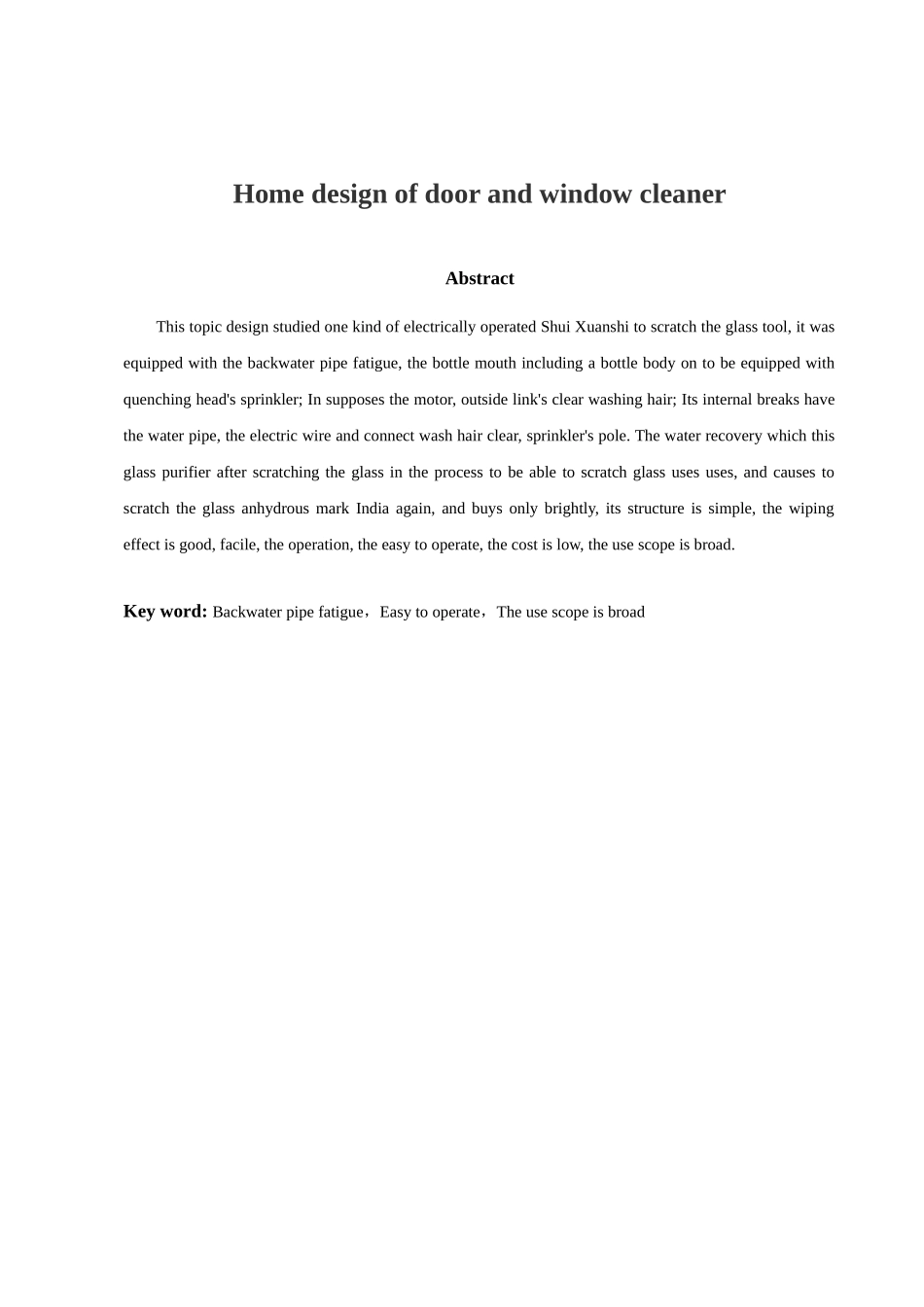

家居门窗清洗器的设计摘要本课题设计讨论了一种电动水旋式擦玻璃工具，它包括一个瓶体上设有回水管接口、瓶口设有喷水头的喷水器;一个内设沟通电动机、外接杆的清洗头;一个其内穿有水管、电线并连接清洗头、喷水器的杆。本玻璃清洗器在擦玻璃的过程中能把擦玻璃时用的水回收后再使用、并使擦后的玻璃无水迹印，且洁净明亮，它结构简单，擦洗效果好，轻便，操作，使用方便，成本低，使用范围广。关键词：回水管接口，使用方便，使用范围广Home design of door and window cleanerAbstractThis topic design studied one kind of electrically operated Shui Xuanshi to scratch the glass tool, it was equipped with the backwater pipe fatigue, the bottle mouth including a bottle body on to be equipped with quenching head's sprinkler; In supposes the motor, outside link's clear washing hair; Its internal breaks have the water pipe, the electric wire and connect wash hair clear, sprinkler's pole. The water recovery which this glass purifier after scratching the glass in the process to be able to scratch glass uses uses, and causes to scratch the glass anhydrous mark India again, and buys only brightly, its structure is simple, the wiping effect is good, facile, the operation, the easy to operate, the cost is low, the use scope is broad.Key word: Backwater pipe fatigue，Easy to operate，The use scope is broad1 绪论1.1 前言本设计产品涉及一种由沟通微型电动机传动盘刷，利用其旋转擦拭清洗门窗玻璃的电动玻璃窗清洗装置，尤其是一种设置有去污清洁剂压射软管、自来水导水管、喷嘴，握手柄可多节接长的交、直流电两用的电动玻璃窗清洗装置。适用于家庭、车辆、商场及公共场所不同面积不同高度的门窗玻璃清洗. 现行的门窗玻璃清洗方法，普遍为手工干擦或水洗.对于高处的清洗面，或使用长杆鸡毛革扫拂，或使用水管喷射，往往是灰尘飞扬、或溅水湿身，费时费劲仍难以洗净 ;至于沾了油污的坡璃，则更难洗净。对于多层楼房的外层窗玻璃清洗，爬窗台、甚至探身窗外，则很不安全。本产品设计的目的是要提供一种轻巧方便的单手就能操作...
