插座面板注射模设计本科学位论文

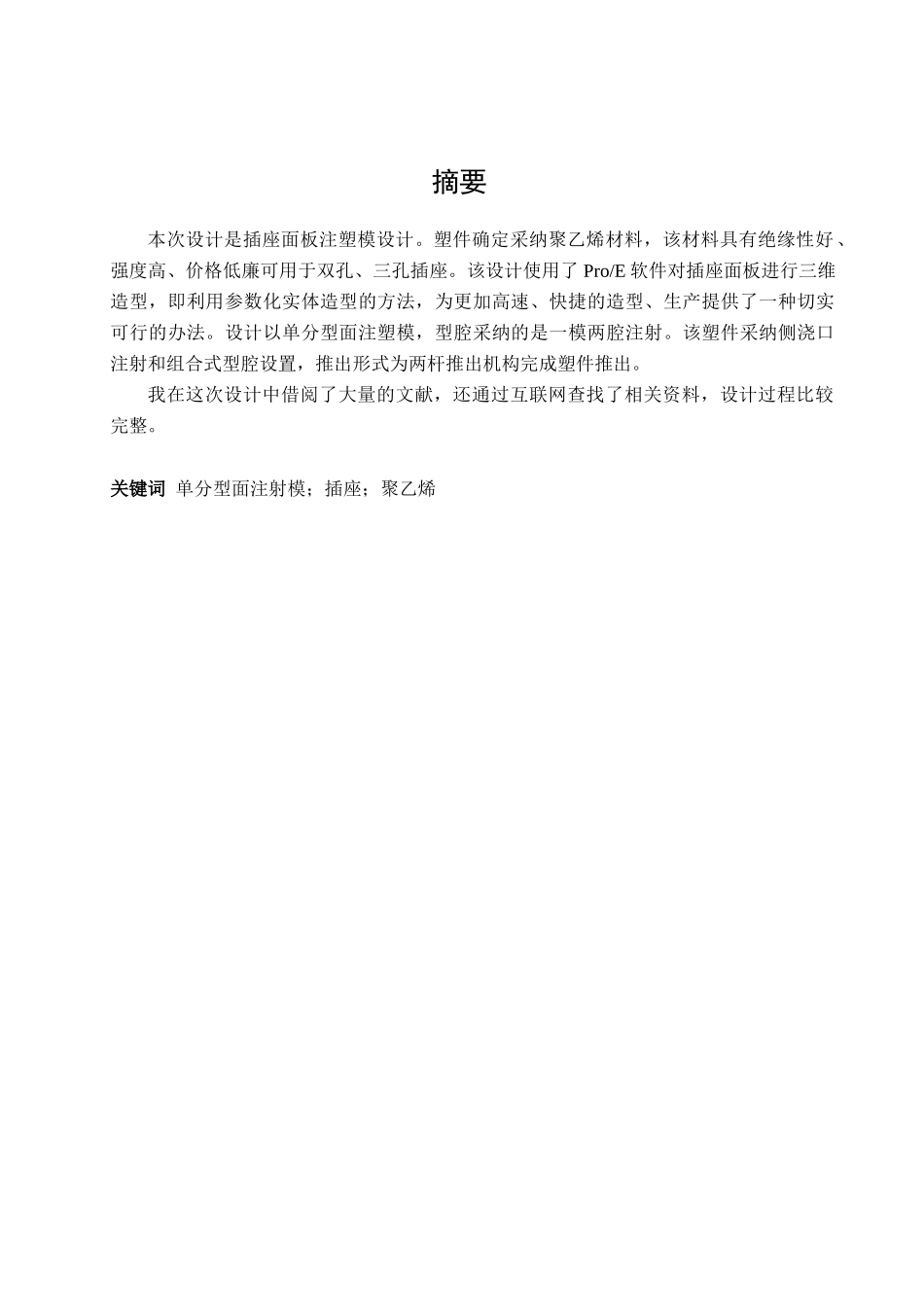

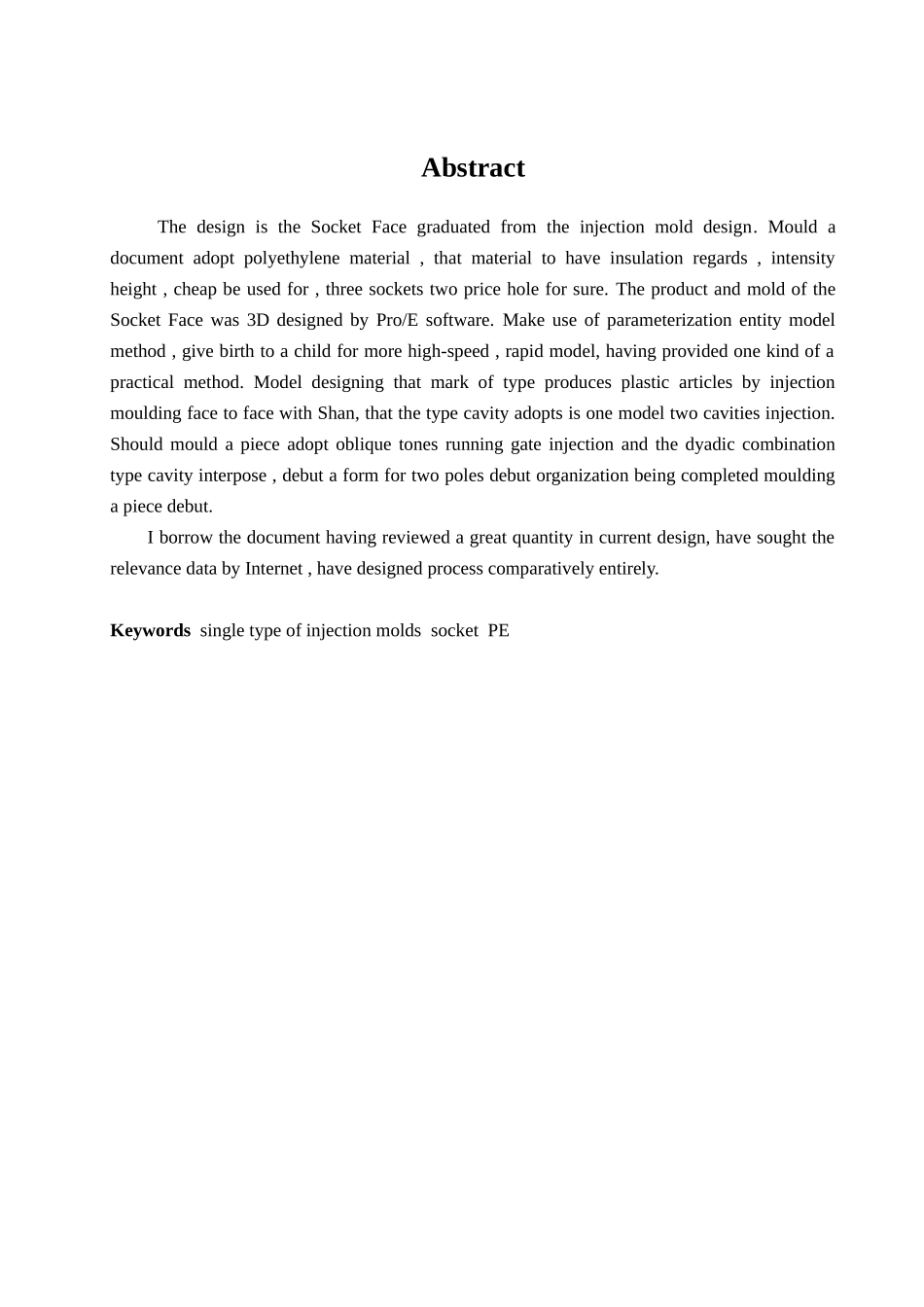

摘要本次设计是插座面板注塑模设计。塑件确定采纳聚乙烯材料，该材料具有绝缘性好、强度高、价格低廉可用于双孔、三孔插座。该设计使用了 Pro/E 软件对插座面板进行三维造型，即利用参数化实体造型的方法，为更加高速、快捷的造型、生产提供了一种切实可行的办法。设计以单分型面注塑模，型腔采纳的是一模两腔注射。该塑件采纳侧浇口注射和组合式型腔设置，推出形式为两杆推出机构完成塑件推出。我在这次设计中借阅了大量的文献，还通过互联网查找了相关资料，设计过程比较完整。关键词 单分型面注射模；插座；聚乙烯Abstract The design is the Socket Face graduated from the injection mold design. Mould a document adopt polyethylene material , that material to have insulation regards , intensity height , cheap be used for , three sockets two price hole for sure. The product and mold of the Socket Face was 3D designed by Pro/E software. Make use of parameterization entity model method , give birth to a child for more high-speed , rapid model, having provided one kind of a practical method. Model designing that mark of type produces plastic articles by injection moulding face to face with Shan, that the type cavity adopts is one model two cavities injection. Should mould a piece adopt oblique tones running gate injection and the dyadic combination type cavity interpose , debut a form for two poles debut organization being completed moulding a piece debut. I borrow the document having reviewed a great quantity in current design, have sought the relevance data by Internet , have designed process comparatively entirely.Keywords single type of injection molds socket PE 目 录1 绪论.............................................................................................................................................11.1 前言................................................................................................................
