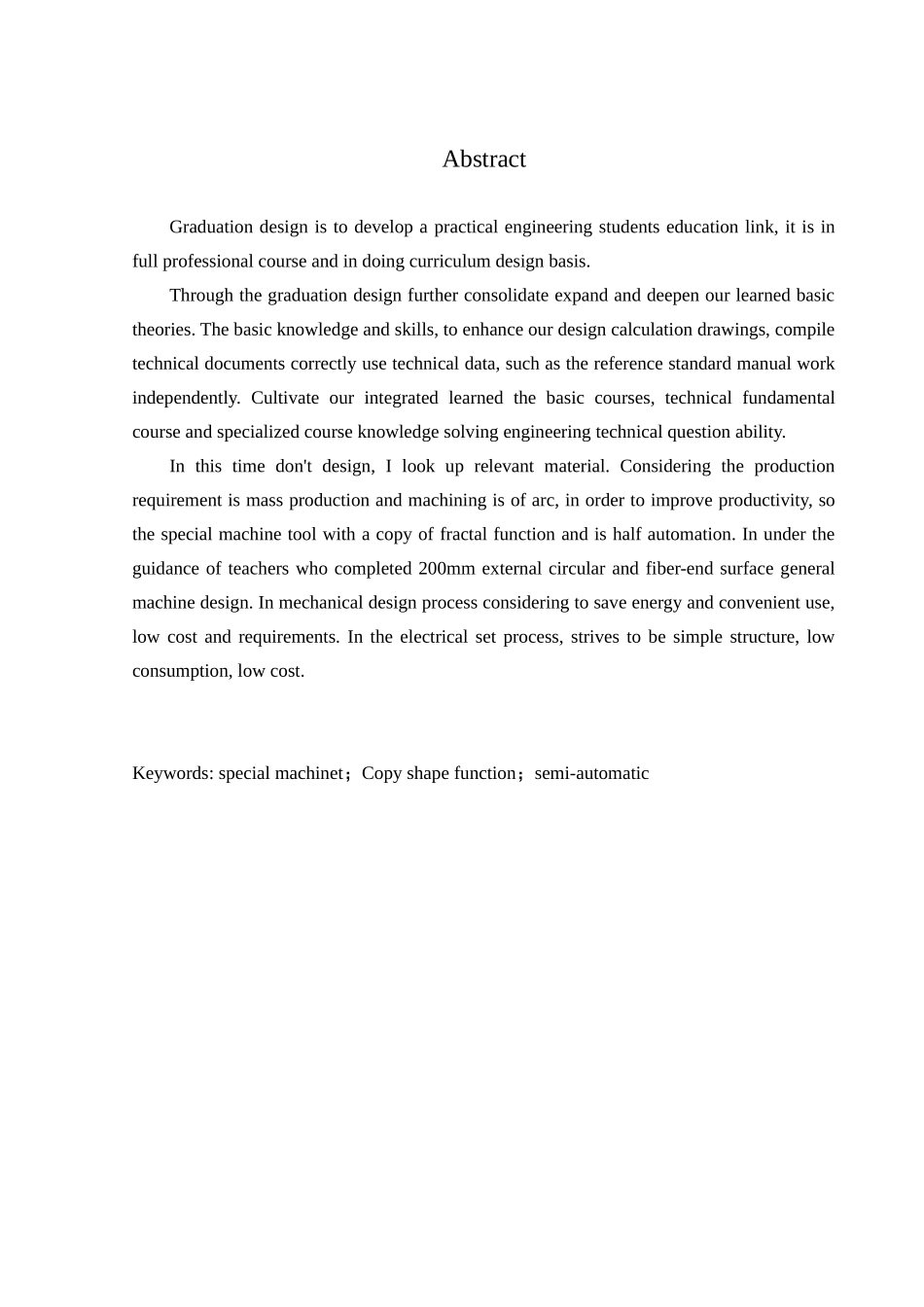

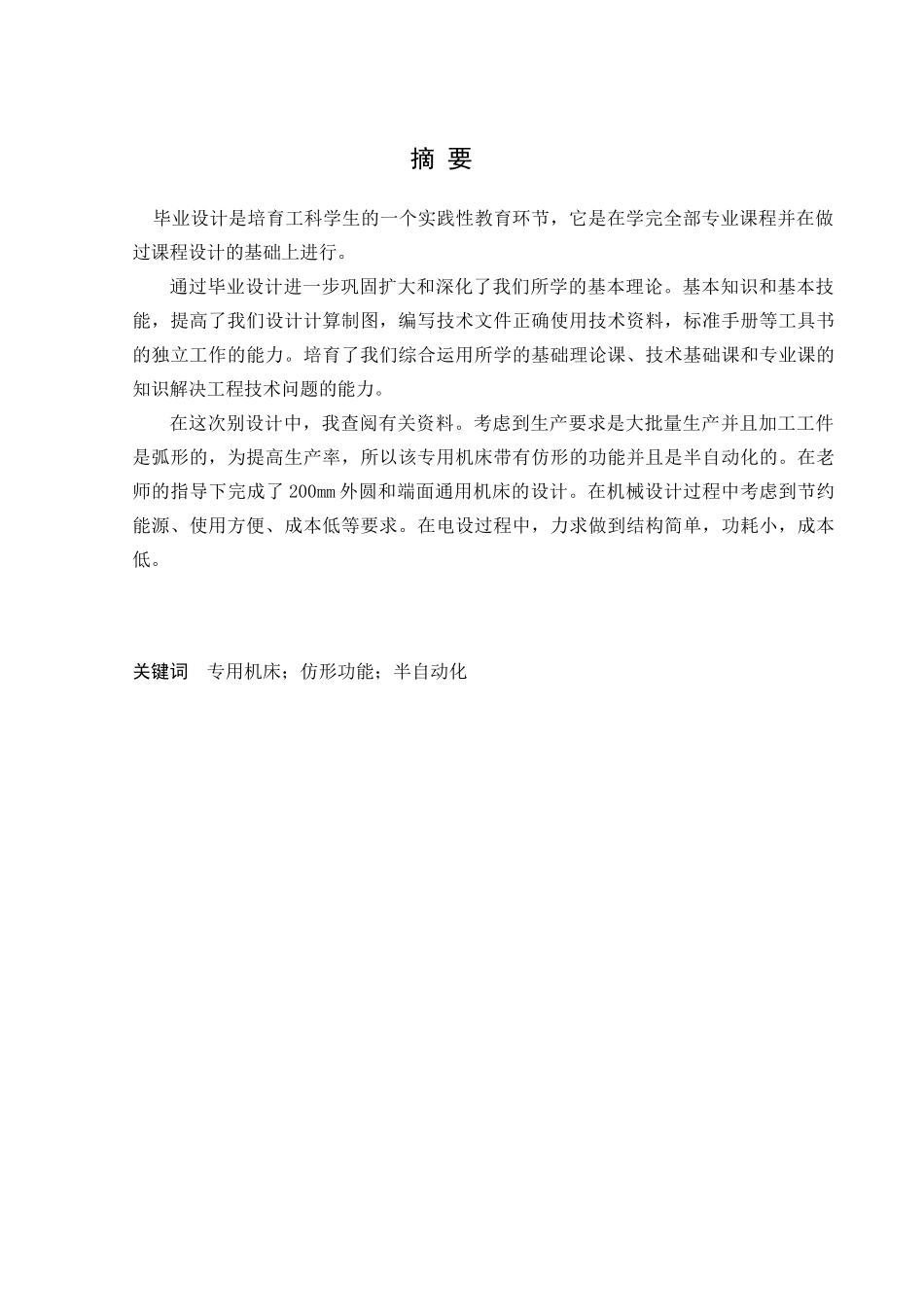

摘 要 毕业设计是培育工科学生的一个实践性教育环节，它是在学完全部专业课程并在做过课程设计的基础上进行。通过毕业设计进一步巩固扩大和深化了我们所学的基本理论。基本知识和基本技能，提高了我们设计计算制图，编写技术文件正确使用技术资料，标准手册等工具书的独立工作的能力。培育了我们综合运用所学的基础理论课、技术基础课和专业课的知识解决工程技术问题的能力。在这次别设计中，我查阅有关资料。考虑到生产要求是大批量生产并且加工工件是弧形的，为提高生产率，所以该专用机床带有仿形的功能并且是半自动化的。在老师的指导下完成了 200mm 外圆和端面通用机床的设计。在机械设计过程中考虑到节约能源、使用方便、成本低等要求。在电设过程中，力求做到结构简单，功耗小，成本低。关键词 专用机床；仿形功能；半自动化AbstractGraduation design is to develop a practical engineering students education link, it is in full professional course and in doing curriculum design basis.Through the graduation design further consolidate expand and deepen our learned basic theories. The basic knowledge and skills, to enhance our design calculation drawings, compile technical documents correctly use technical data, such as the reference standard manual work independently. Cultivate our integrated learned the basic courses, technical fundamental course and specialized course knowledge solving engineering technical question ability.In this time don't design, I look up relevant material. Considering the production requirement is mass production and machining is of arc, in order to improve productivity, so the special machine tool with a copy of fractal function and is half automation. In under the guidance of teachers who completed 200mm external circular and fiber-end surface general machine design. In mechanical design process considering to save energy and convenient use, low cost and requirements. In the electrical set process, strives to be simple structure,...
