9#球罐水压试验记录

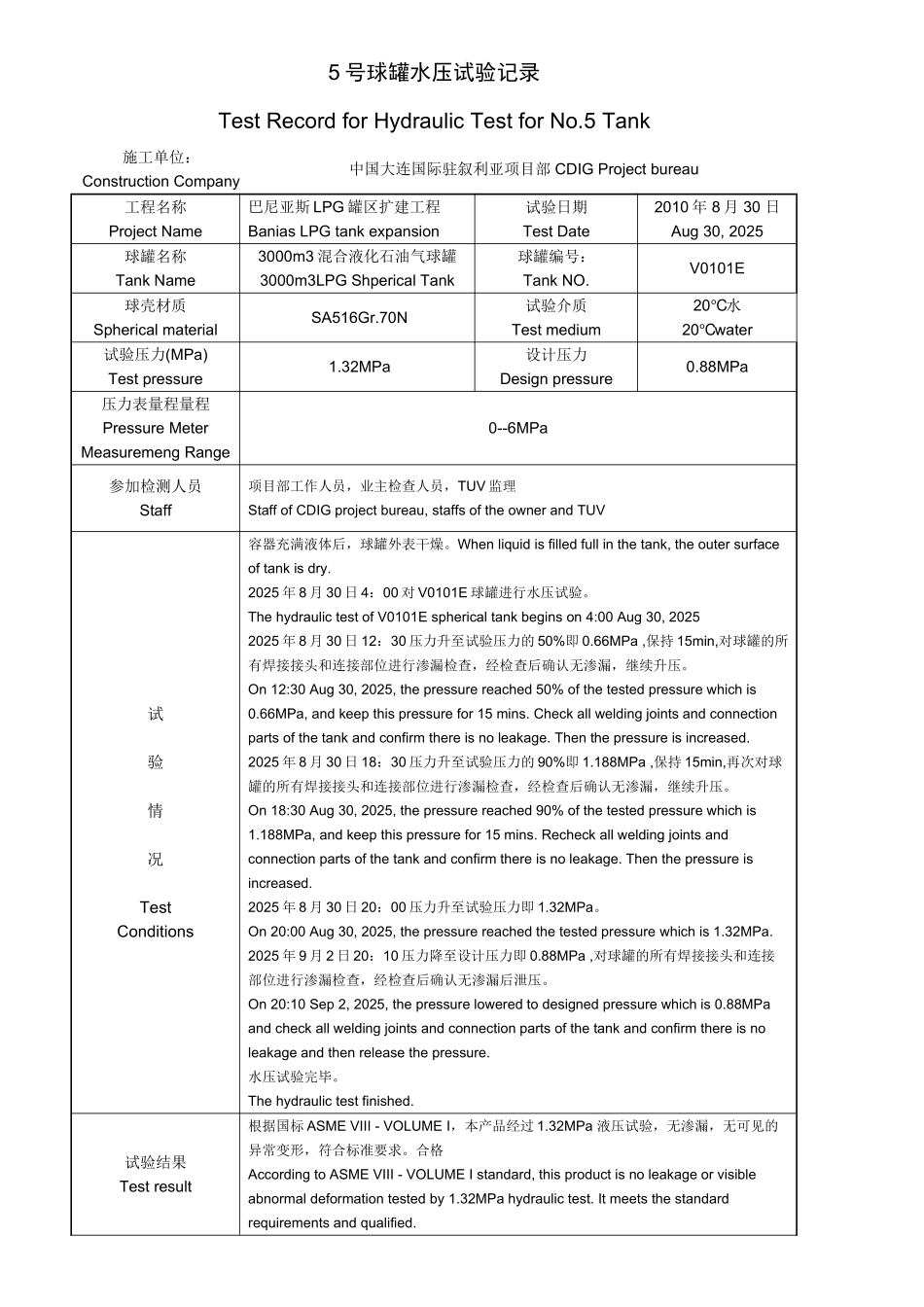

5 号球罐水压试验记录Test Record for Hydraulic Test for No.5 Tank施工单位：Construction Company中国大连国际驻叙利亚项目部 CDIG Project bureau工程名称Project Name巴尼亚斯 LPG 罐区扩建工程Banias LPG tank expansion试验日期Test Date2010 年 8 月 30 日Aug 30, 2025球罐名称Tank Name3000m3 混合液化石油气球罐3000m3LPG Shperical Tank球罐编号：Tank NO.V0101E球壳材质Spherical material SA516Gr.70N试验介质Test medium20℃水20℃water试验压力(MPa)Test pressure 1.32MPa 设计压力Design pressure0.88MPa压力表量程量程Pressure Meter Measuremeng Range 0--6MPa 参加检测人员Staff项目部工作人员，业主检查人员，TUV 监理Staff of CDIG project bureau, staffs of the owner and TUV试验情况TestConditions容器充满液体后，球罐外表干燥。When liquid is filled full in the tank, the outer surface of tank is dry.2025 年 8 月 30 日 4：00 对 V0101E 球罐进行水压试验。The hydraulic test of V0101E spherical tank begins on 4:00 Aug 30, 20252025 年 8 月 30 日 12：30 压力升至试验压力的 50%即 0.66MPa ,保持 15min,对球罐的所有焊接接头和连接部位进行渗漏检查，经检查后确认无渗漏，继续升压。On 12:30 Aug 30, 2025, the pressure reached 50% of the tested pressure which is 0.66MPa, and keep this pressure for 15 mins. Check all welding joints and connection parts of the tank and confirm there is no leakage. Then the pressure is increased.2025 年 8 月 30 日 18：30 压力升至试验压力的 90%即 1.188MPa ,保持 15min,再次对球罐的所有焊接接头和连接部位进行渗漏检查，经检查后确认无渗漏，继续升压。On 18:30 Aug 30, 2025, the pressure reached 90% of the tested pressure which is 1.188MPa, and keep this pressure for 15 mins. Recheck all welding joints and connection parts of the tank and confirm there is no leakage. Then the pressure is increased.2025 年 8 月 30 日 20：00 压力升至试验压力即 1.32MPa。On 20:00 Aug 30, 2025, the pressure reached the tested pressure which is 1.32MPa.2025 年 9 月 2 日 20：10 压力降至设计压力即 0.88MPa ,对球罐的所有焊接接头和连接部位进行渗漏检查，经检查后确认无渗漏后泄压。On 20:10 Sep 2, 2025, the pressure lowered to designed pressure which is 0.88MPa and check all welding joints and connection parts of the tank and confirm there is no leakage and then release the pressure.水压试验完毕。The hydraulic test finished.试验结果Test result根据国标 ASME VIII - VOLUME I，本产品经过 1.32MPa 液压试验，无渗漏，无可见的异常变形，符合标准要求。合格According to ASME VIII - VOLUME I standard, this product is no leakage or visible abnormal deformation tested by 1.32MPa hydraulic test. It meets the standard requirements and qualified.参加单位及人员Participating Enterprises and Staff建设单位Owener总承包单位Contractor监理单位TUV
