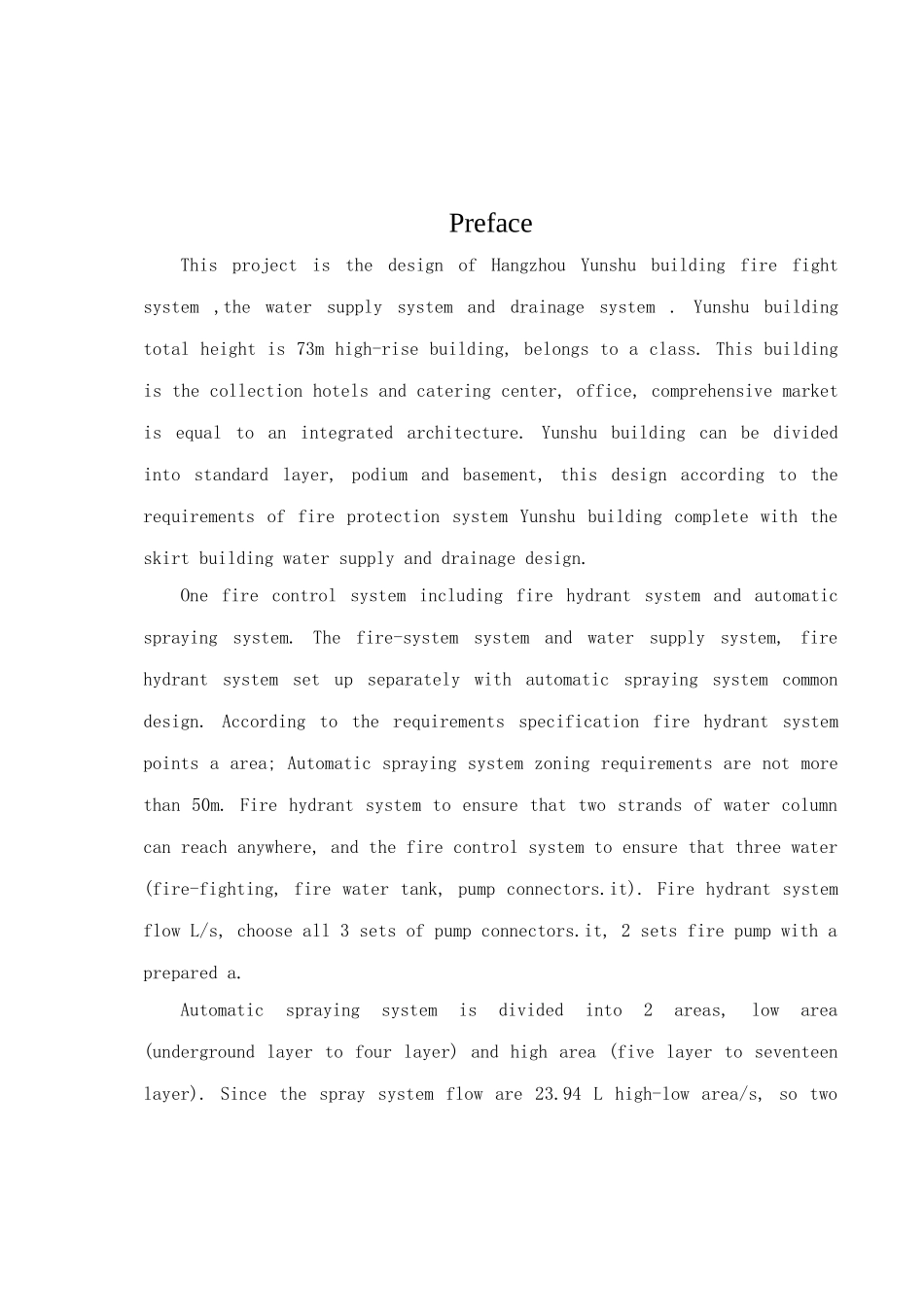

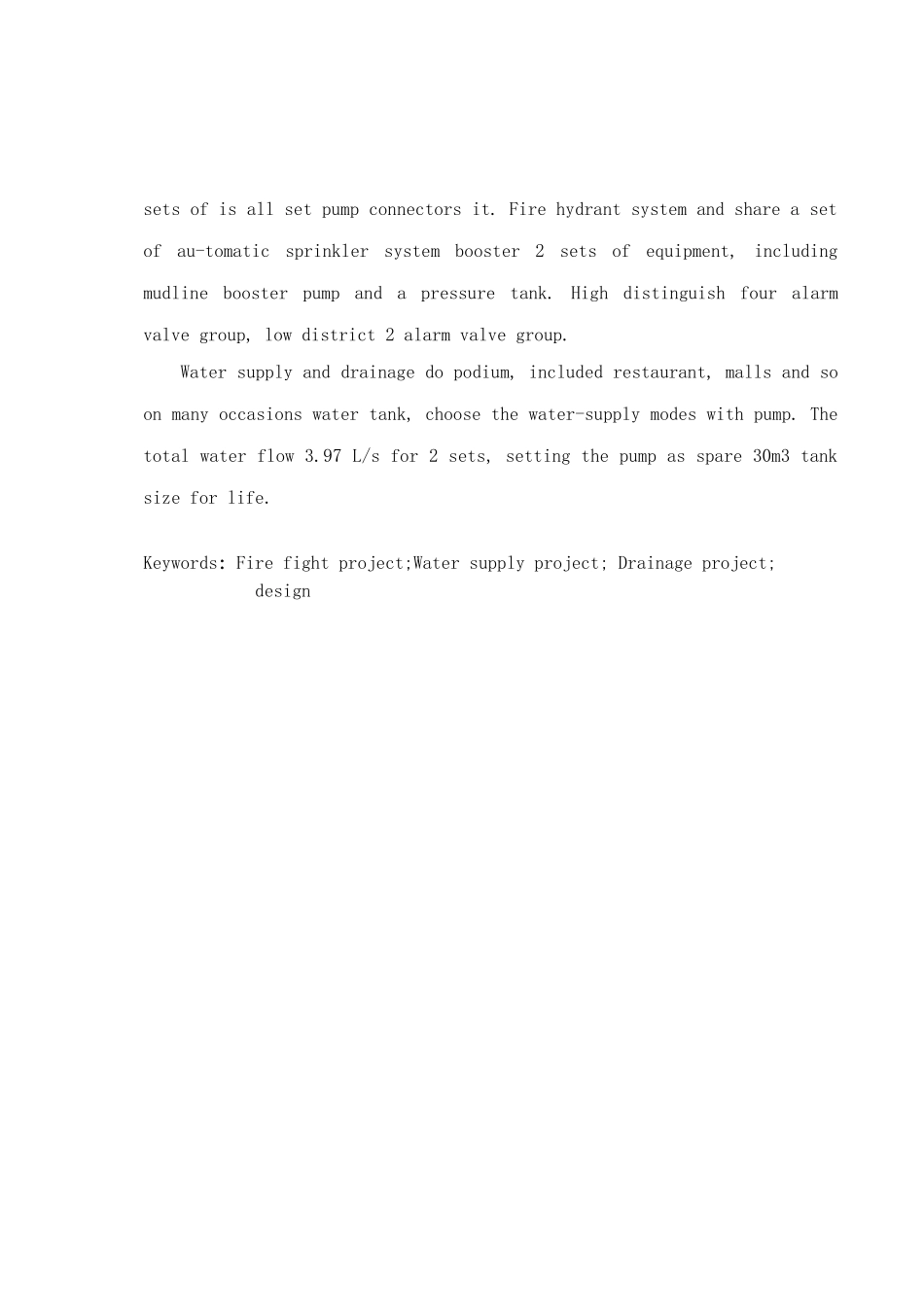

前 言 本工程是杭州市云舒大厦消防给排水设计，云舒大厦总高为 73m，属于一类高层建筑。该大厦是集宾馆、餐饮中心、办公、综合市场等于一体的综合性建筑。云舒大厦可分为标准层、裙房和地下室，本次设计根据要求完成云舒大厦的消防系统和裙房给排水设计。其中消防系统包括消火栓系统和自动喷洒系统。本次工程中消防系统和给水系统分开设置，消火栓系统与自动喷洒系统共同设计。根据法律规范要求消火栓系统分一个区；自动喷洒系统分区要求不能超过 50m。消火栓系统要保证两股水柱能到达任何位置，整个消防系统要保证三个水源（消防水池、消防水箱、水泵接合器）。消火栓系统流量 41.9L/s，选用 3 套水泵接合器，2 台消防泵一用一备。自动喷洒系统分为 2 个区，低区（地下一层至四层）和高区（五层至十七层）。自喷系统流量高低区均为 23.94L/s，故均设置 2 套是泵接合器。消火栓系统和自喷系统合用一套增压设备，包括 2 台增压泵和一个气压罐。高区分 4 个报警阀组，低区 2个报警阀组。给排水做裙房，包括了餐厅，商场等多种场合用水，选用水箱加水泵的给水方式。总给水流量为 3.97L/s，设置 2 台给水泵互为备用，生活水箱大小为 30m3。关键词 消防系统 给水系统 排水系统 设计 PrefaceThis project is the design of Hangzhou Yunshu building fire fight system ,the water supply system and drainage system . Yunshu building total height is 73m high-rise building, belongs to a class. This building is the collection hotels and catering center, office, comprehensive market is equal to an integrated architecture. Yunshu building can be divided into standard layer, podium and basement, this design according to the requirements of fire protection system Yunshu building complete with the skirt building water supply and drainage design.One fire control system including fire hydrant system and automatic spraying system. The fire-system system and water supply system, fire hydrant system set up separately with automatic spraying system common design. According to the requirements specification fire hydrant system points a a...
