无损检测工艺规程

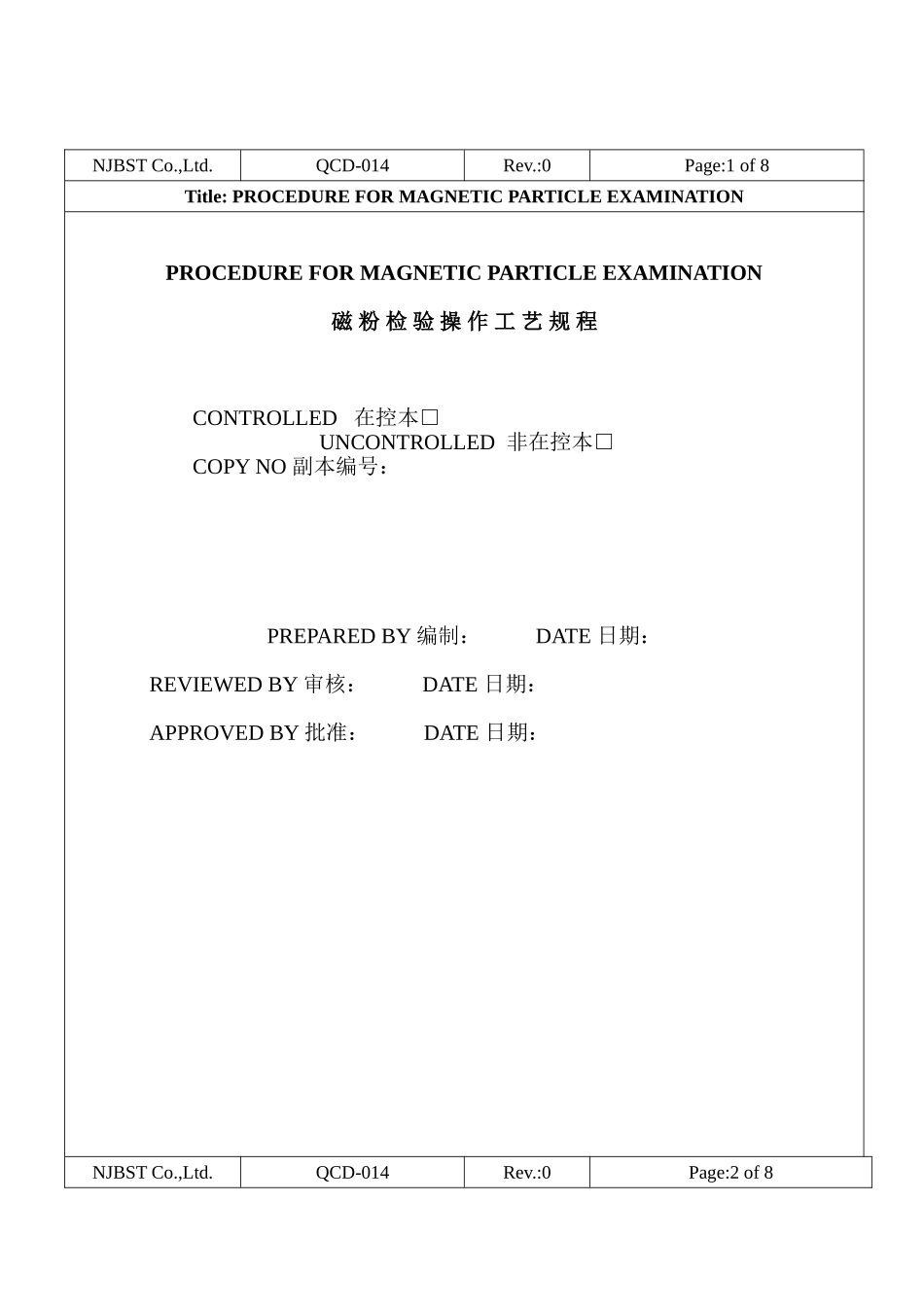

NJBST Co.,Ltd.QCD-014Rev.:0Page:1 of 8Title: PROCEDURE FOR MAGNETIC PARTICLE EXAMINATIONPROCEDURE FOR MAGNETIC PARTICLE EXAMINATION磁 粉 检 验 操 作 工 艺 规 程 CONTROLLED 在控本□ UNCONTROLLED 非在控本□ COPY NO 副本编号：PREPARED BY 编制： DATE 日期： REVIEWED BY 审核： DATE 日期： APPROVED BY 批准： DATE 日期：NJBST Co.,Ltd.QCD-014Rev.:0Page:2 of 8Title: PROCEDURE FOR MAGNETIC PARTICLE EXAMINATIONDEMONSTRATION CERTIFICATION This is to certify that this procedure has been demonstrated on a test specimen with known defects to the satisfaction of the Authorized Inspector according to T-150 of ASME Code Section V, as required by Appendix 6 of Section Ⅷ Div.1. Test Specimen No.: Demo. Report No.: NDE Level Ⅲ: AI: NJBST Co.,Ltd.QCD-014Rev.:0Page:3 of 8Title: PROCEDURE FOR MAGNETIC PARTICLE EXAMINATION 1. General 1.1 This procedure is applied to the magnetic particle examination of ferromagnetic materials and welds for ASME Code items. 1.2 The magnetic particle examination method is suitable for detecting cracks and other discontinuities on or near the surface in ferromagnetic materials. 1.3 This procedure is applied to wet continuous magnetization by yoke, which shall only be applied to detect discontinuities that are open to the surface of the part. 1.4 This procedure shall be demonstrated to the satisfaction of the AI prior to implementation. 2. Personnel 2.1 The NDE personnel who engage in magnetic particle examination shall be qualified and certified according to NJBST Co.,Ltd.’s “Written Practice for NDE Personnel Training, Examination, Qualification & Certification”(No.:QCD-011). 3. Description of Method 3.1 In principle, the magnetic particle examination method involves magnetizing an area to be examined, and ...
