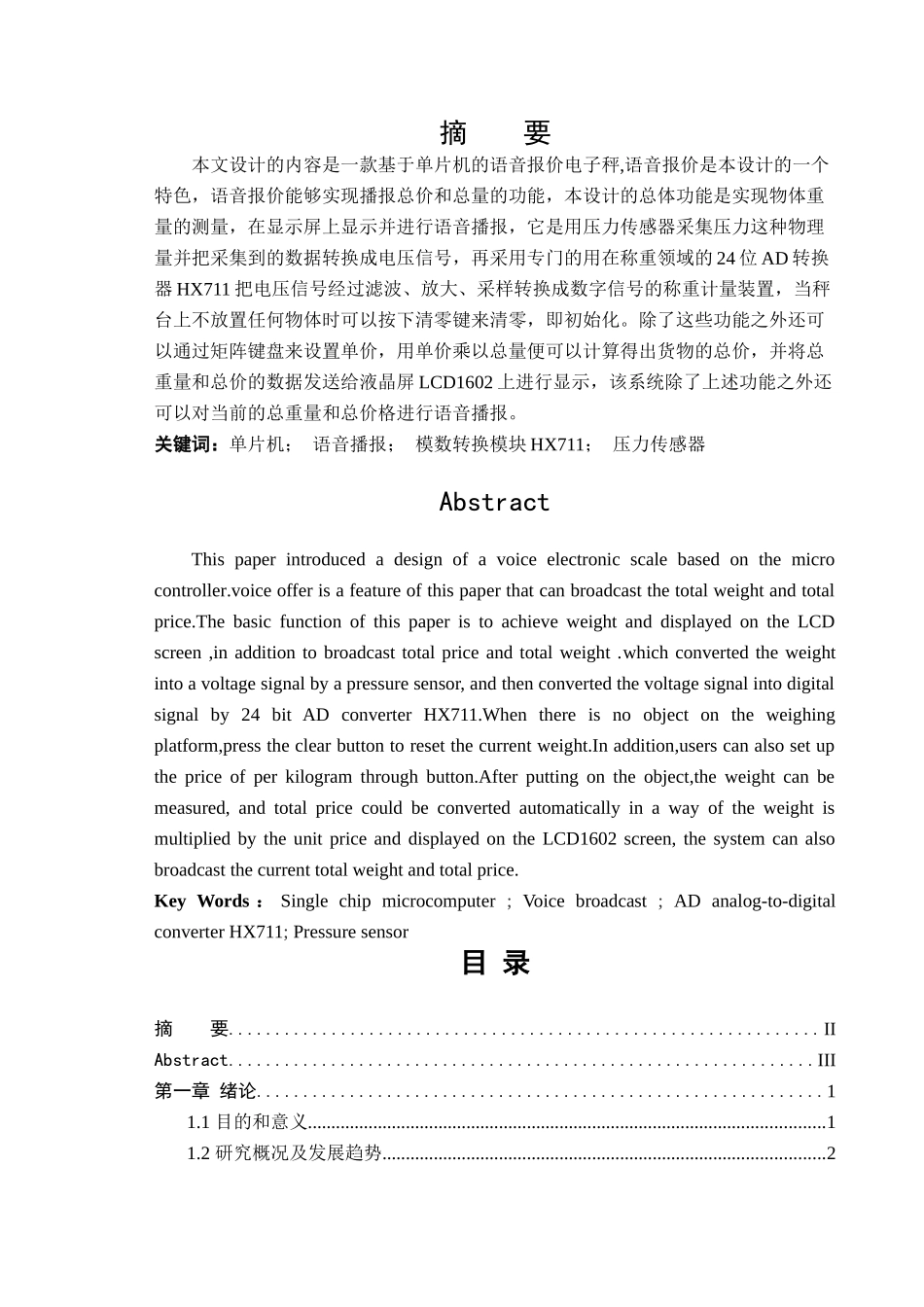

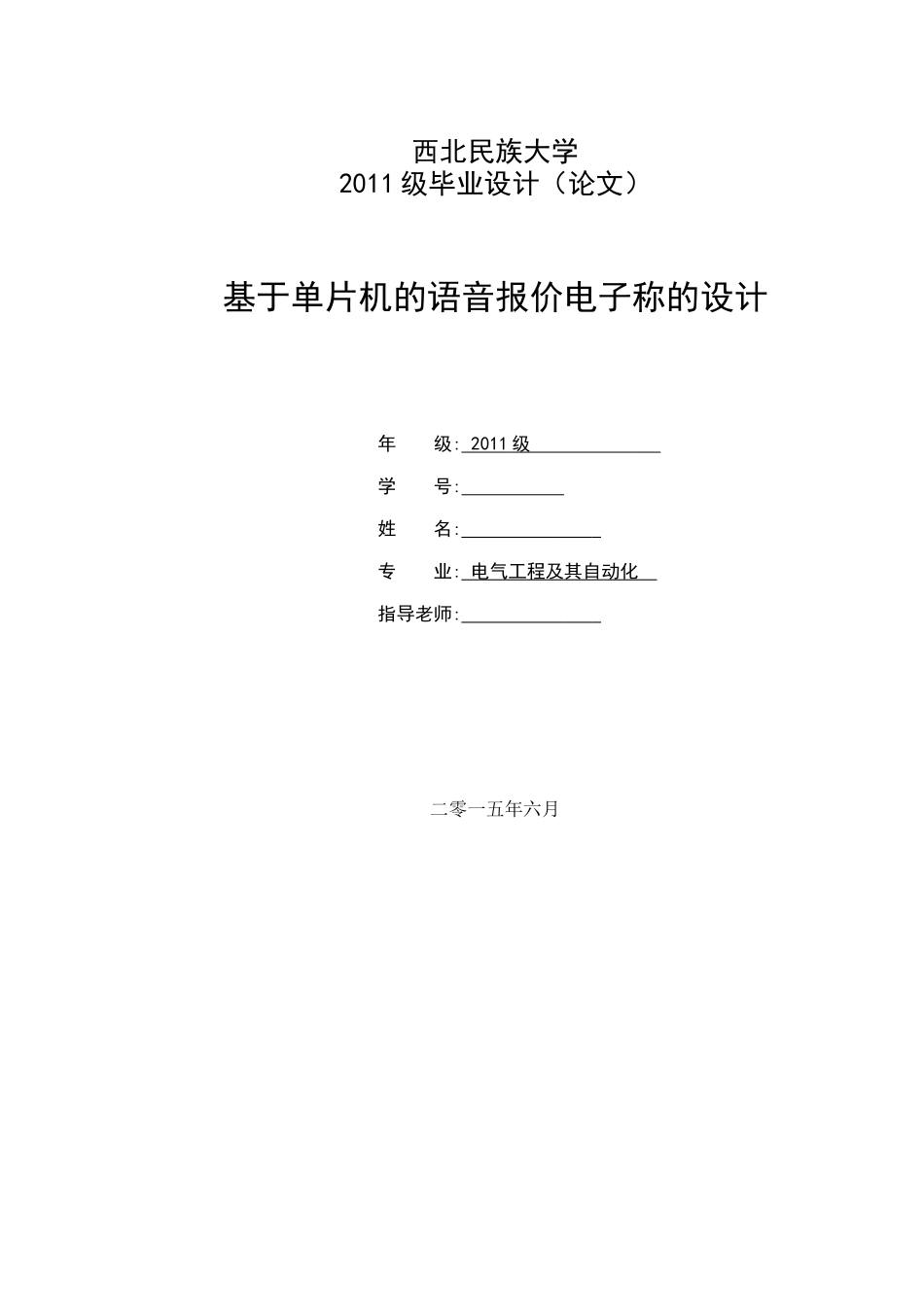

西北民族大学2011级毕业设计（论文）基于单片机的语音报价电子称的设计年级:2011级学号:姓名:专业:电气工程及其自动化指导老师:二零一五年六月摘要本文设计的内容是一款基于单片机的语音报价电子秤,语音报价是本设计的一个特色，语音报价能够实现播报总价和总量的功能，本设计的总体功能是实现物体重量的测量，在显示屏上显示并进行语音播报，它是用压力传感器采集压力这种物理量并把采集到的数据转换成电压信号，再采用专门的用在称重领域的24位AD转换器HX711把电压信号经过滤波、放大、采样转换成数字信号的称重计量装置，当秤台上不放置任何物体时可以按下清零键来清零，即初始化。除了这些功能之外还可以通过矩阵键盘来设置单价，用单价乘以总量便可以计算得出货物的总价，并将总重量和总价的数据发送给液晶屏LCD1602上进行显示，该系统除了上述功能之外还可以对当前的总重量和总价格进行语音播报。关键词：单片机；语音播报；模数转换模块HX711；压力传感器AbstractThispaperintroducedadesignofavoiceelectronicscalebasedonthemicrocontroller.voiceofferisafeatureofthispaperthatcanbroadcastthetotalweightandtotalprice.ThebasicfunctionofthispaperistoachieveweightanddisplayedontheLCDscreen,inadditiontobroadcasttotalpriceandtotalweight.whichconvertedtheweightintoavoltagesignalbyapressuresensor,andthenconvertedthevoltagesignalintodigitalsignalby24bitADconverterHX711.Whenthereisnoobjectontheweighingplatform,presstheclearbuttontoresetthecurrentweight.Inaddition,userscanalsosetupthepriceofperkilogramthroughbutton.Afterputtingontheobject,theweightcanbemeasured,andtotalpricecouldbeconvertedautomaticallyinawayoftheweightismultipliedbytheunitpriceanddisplayedontheLCD1602screen,thesystemcanalsobroadcastthecurrenttotalweightandtotalprice.KeyWords：Singlechipmicrocomputer;Voicebroadcast;ADanalog-to-digitalconverterHX711;Pressuresensor目录摘要...............................................................IIAbstract...............................................................III第一章绪论.............................................................11.1目的和意义...............................................................................................................11.2研究概况及发展趋势...............................................................................................21.3本设计主要内容.......................................................................................................31.6本章小结...................................................................................................................3第二章总体方案选型与设计...............................................42.1主控模块的选型.......................................................................................................42.2显示模块的选型.......................................................................................................42.3模数转换模块的选型...............................................................................................52.4语音播报模块的选型...............................................................................................52.5系统整体设计概述...................................................................................................52.6本章小结...................................................................................................................6第三章系统硬件电路设计.................................................73.1主控模块........................................................................
