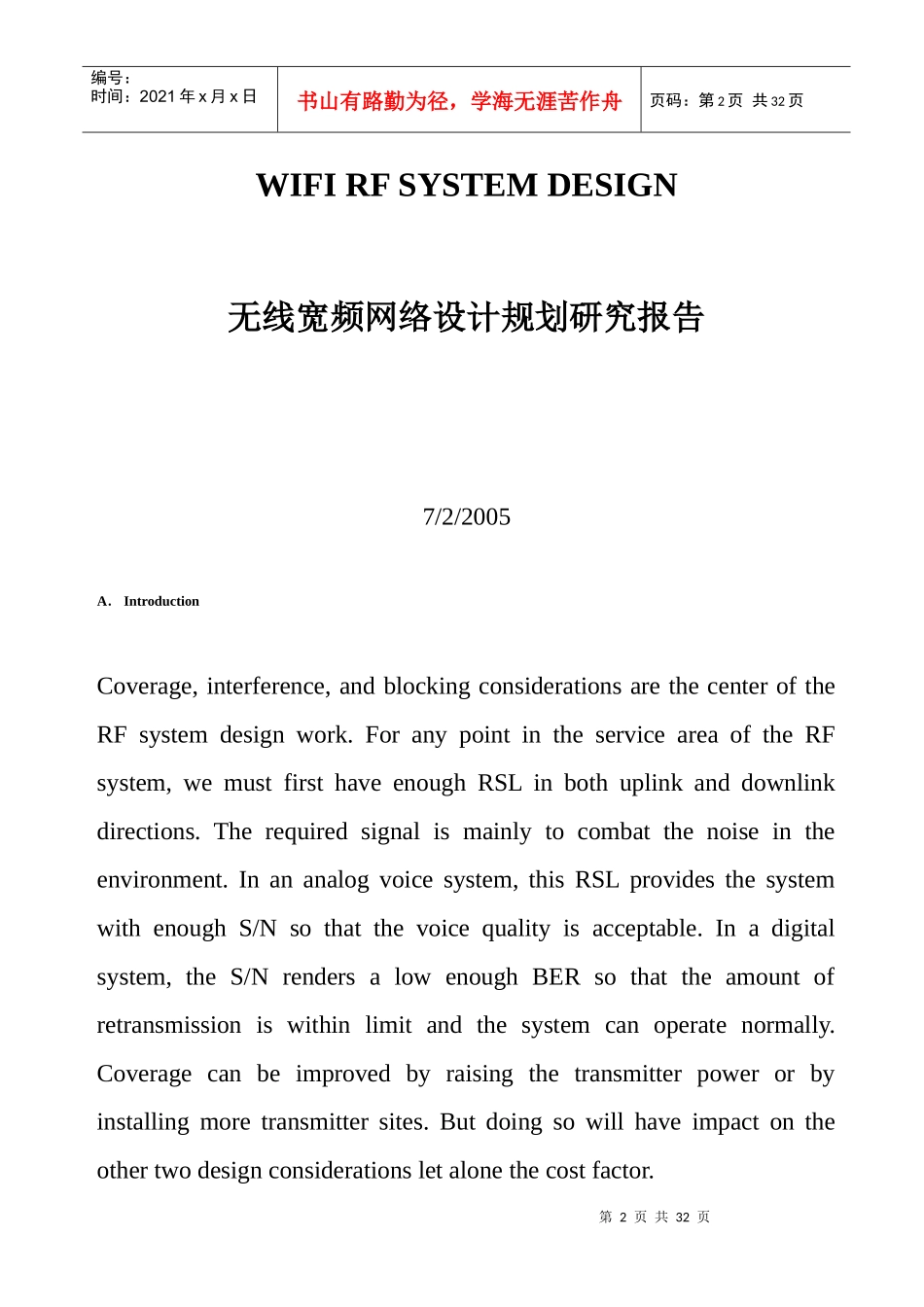

第2页共32页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第2页共32页WIFIRFSYSTEMDESIGN无线宽频网络设计规划研究报告7/2/2005A.IntroductionCoverage,interference,andblockingconsiderationsarethecenteroftheRFsystemdesignwork.ForanypointintheserviceareaoftheRFsystem,wemustfirsthaveenoughRSLinbothuplinkanddownlinkdirections.Therequiredsignalismainlytocombatthenoiseintheenvironment.Inananalogvoicesystem,thisRSLprovidesthesystemwithenoughS/Nsothatthevoicequalityisacceptable.Inadigitalsystem,theS/NrendersalowenoughBERsothattheamountofretransmissioniswithinlimitandthesystemcanoperatenormally.Coveragecanbeimprovedbyraisingthetransmitterpowerorbyinstallingmoretransmittersites.Butdoingsowillhaveimpactontheothertwodesignconsiderationsletalonethecostfactor.第3页共32页第2页共32页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第3页共32页含盖,干扰,以及通讯阻塞等问题的思考.是R/F系统设计工作的中心议题.在无线电通讯系统含盖范围内的每一个地方.我们必须要提供足够的讯号.足够的讯号应定义为同时满足下行(Downlink)及上行(Uplink)两种含盖的需求.这种足够的讯号同时被要求能克服外在环境中噪声的影响.在复频式的通讯系统中.最低接受讯号强度(RSL)应该满足系统中主讯号与噪声的比值(S/N).在这种条件下.通话的品质是可以被接受的.在数字式的通讯系统中.主讯号与噪声的比值.可提供RF系统工程师计算出最低的误码率.使得讯号重复传输的情况减少到最小.使得系统能正常的运作.工程师可借着这些资料来提供基地台的增减及天线输出功率大小的参数.含盖设计的好坏也影响到干扰及频道阻塞的问题思考以及系统的成本因素.Theco-channelinterferencehassimilareffectasthenoise.Italsodeterioratesthecommunicationsqualityandmustbecontrolled.RaisingthepowerofatransmittercanimproveSIRandthecommunicationqualitybuttherearelimitstothemaximumpoweratransmittercanhave.Besides,raisingthepowerofonetransmittercanraisetheinterferenceatotherreceiversandadverselyimpacttheperformanceofthewholesystem.Consequently,arbitrarilyraisingtransmitterpowerdoesnotseemtobeaviablesolution.第4页共32页第3页共32页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第4页共32页同频干扰和噪声对R/F系统影响的效果是相同的.它同样可以使通讯品质恶化.所以同频干扰也必需要加以控制.提高输出功率可以加强讯号和干扰的比值(SIR)并改善通讯的品质.但是输出功率有一定的限制.此外,输出功率的提高.同时也提高了干扰的强度.这对系统的整体通讯品质.会产生负面的影响.而且任意提高输出功率.并不是系统最佳的解决方案.Theco-channelinterferencecomesasanunavoidableconsequenceofchannelreuse.ThechannelcanbeafrequencychannelinanFDMAsystem,atimeslotinaTDMAsystem,oracodeinaCDMAsystem.Theamountofco-channelinterferenceisdeterminedbyhowthechannelsarereusedspatially.Thisistheessenceofcellularsystems.Ifthechannelsareusedmorefrequentlyinanattempttoenhancethesystemcapacity,theco-channelinterferencetendstoincreaseandthecommunicationqualitydeclinesandviceversa.Itistheprudentbalanceofthesetwoconflictingconsiderationsthatproduceanoptimumsystem.由于无线电通讯系统频道有限而必须重复使用的时候.同频干扰就是不可避免而必须面对的问题.不论它是使用frequencychannel的FDMA系统.或是使用timesiot的TDMA系统.或是使用code来控制第5页共32页第4页共32页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第5页共32页的CDMA系统.同频干扰的情况都是由频道重复使用的次数及空间来决定的.这就是蜂巢通讯系统的基本精神.如果系统企图增加通讯的容量而频繁的重复使用频道.同频干扰就不可避免的增加.系统的通讯品质则下降.反之亦然.系统规划的重要课题就是如何仅慎小...
