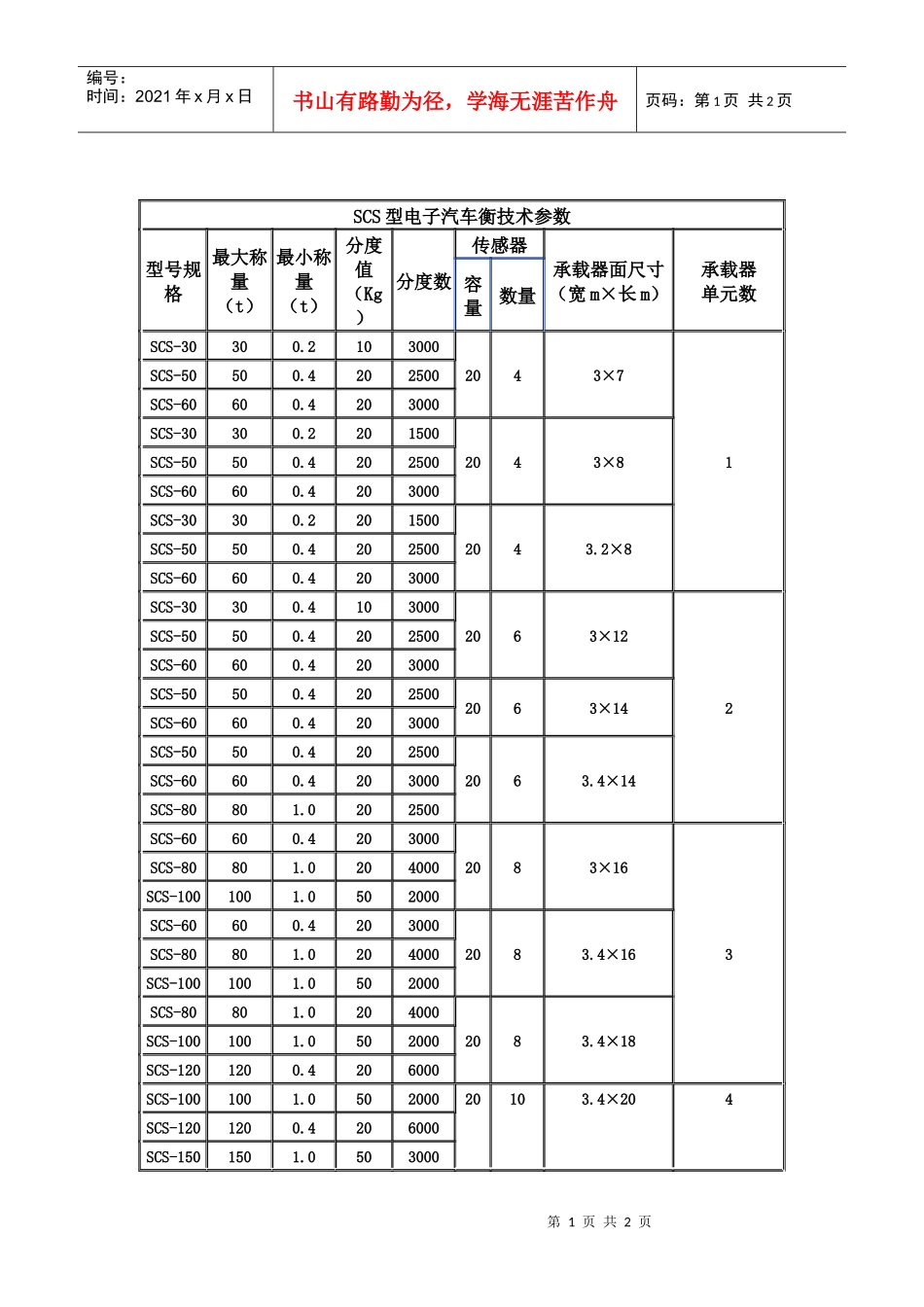

第1页共2页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共2页SCS型电子汽车衡技术参数型号规格最大称量（t）最小称量（t）分度值（Kg）分度数传感器承载器面尺寸（宽m×长m）承载器单元数容量数量SCS-30300.21030002043×71SCS-50500.4202500SCS-60600.4203000SCS-30300.22015002043×8SCS-50500.4202500SCS-60600.4203000SCS-30300.22015002043.2×8SCS-50500.4202500SCS-60600.4203000SCS-30300.41030002063×122SCS-50500.4202500SCS-60600.4203000SCS-50500.42025002063×14SCS-60600.4203000SCS-50500.42025002063.4×14SCS-60600.4203000SCS-80801.0202500SCS-60600.42030002083×163SCS-80801.0204000SCS-1001001.0502000SCS-60600.42030002083.4×16SCS-80801.0204000SCS-1001001.0502000SCS-80801.02040002083.4×18SCS-1001001.0502000SCS-1201200.4206000SCS-1001001.050200020103.4×204SCS-1201200.4206000SCS-1501501.0503000第2页共2页第1页共2页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共2页SCS-1001001.050200020103.4×24SCS-1201200.4206000SCS-1501501.0503000准确度等级OMILIII仪表工作环境温度-10℃～40℃，相对湿度≤90%传感器工作环境温度-40℃～65℃，相对湿度≤90%电源220VAC(10%～-15%,50HZ±2%)传感器技术参数项目单位技术指标额定容量t20、25、30、50额定输出mV/V2±0.002重复性%F.S±0.01滞后%F.S±0.02非线性%F.S±0.02蠕变（30分钟）%F.S±0.02零点输出%F.S±1温度补偿范围℃-10～55使用温度范围℃-20～65输出温度系数%F.S/℃≤0.0020零点温度系数%F.S/℃≤0.0020输入阻抗Ω380±4输出阻抗Ω350±1推荐激励电压V6～15(DC/AC)最大激励电压V20(DC/AC)绝缘电阻MΩ≥5000安全过载%F.S150极限超载%F.S400安全侧载%F.S100侧载抑制比S500﹕1
