基于单片机的水位水温控制系统VIP免费

基于单片机的水位水温控制系统_第1页
1/40
基于单片机的水位水温控制系统_第2页
2/40
基于单片机的水位水温控制系统_第3页
3/40

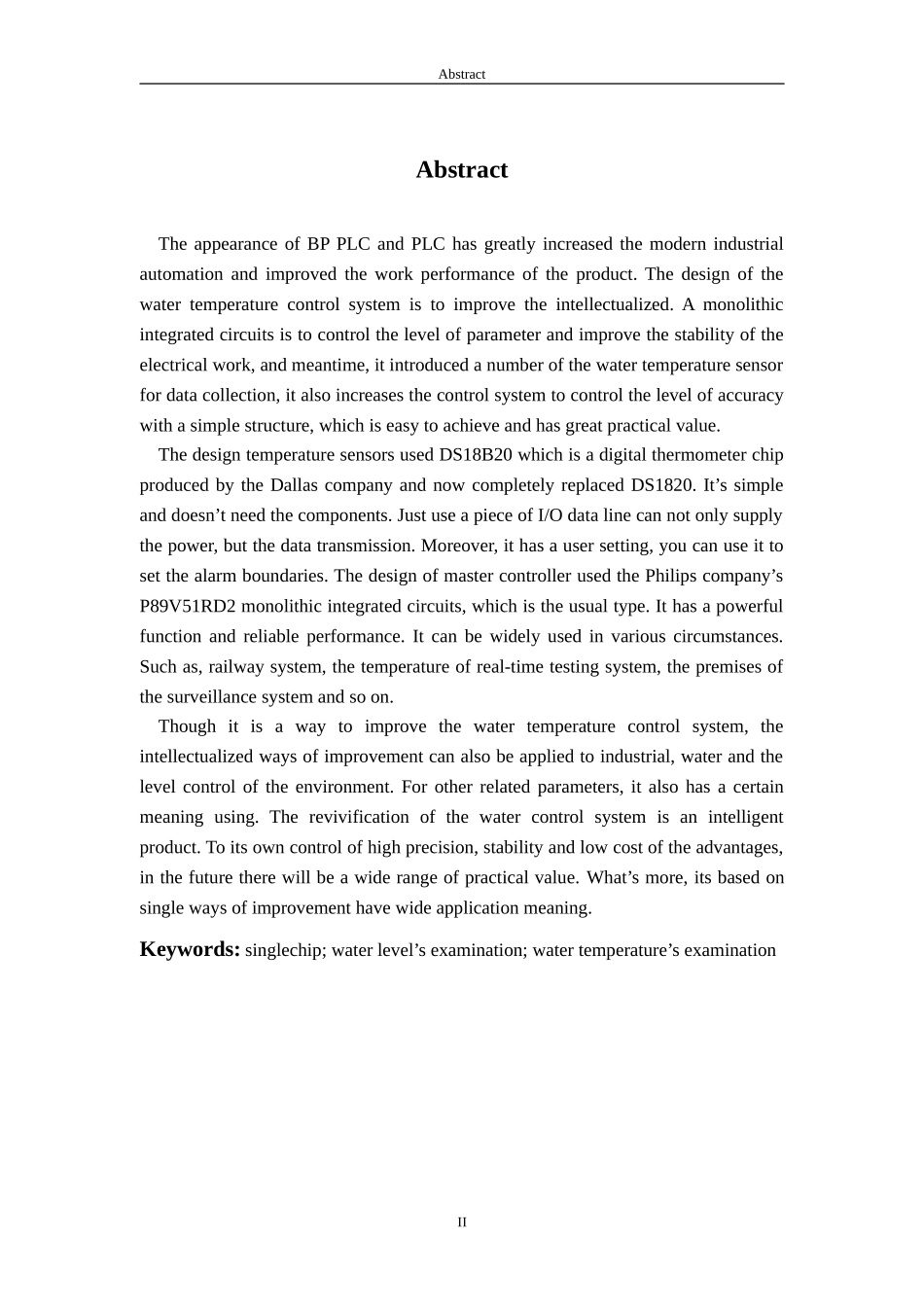

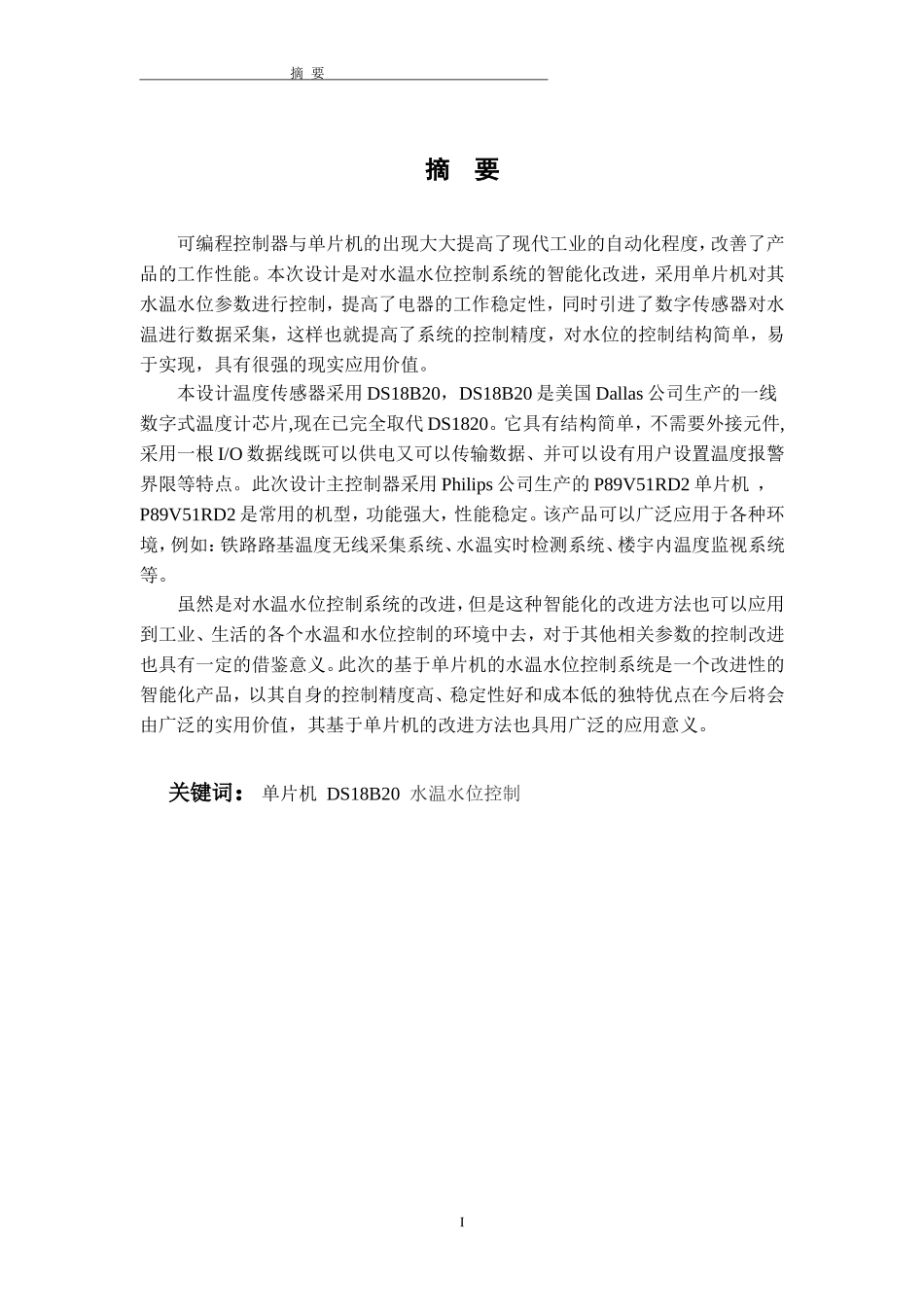

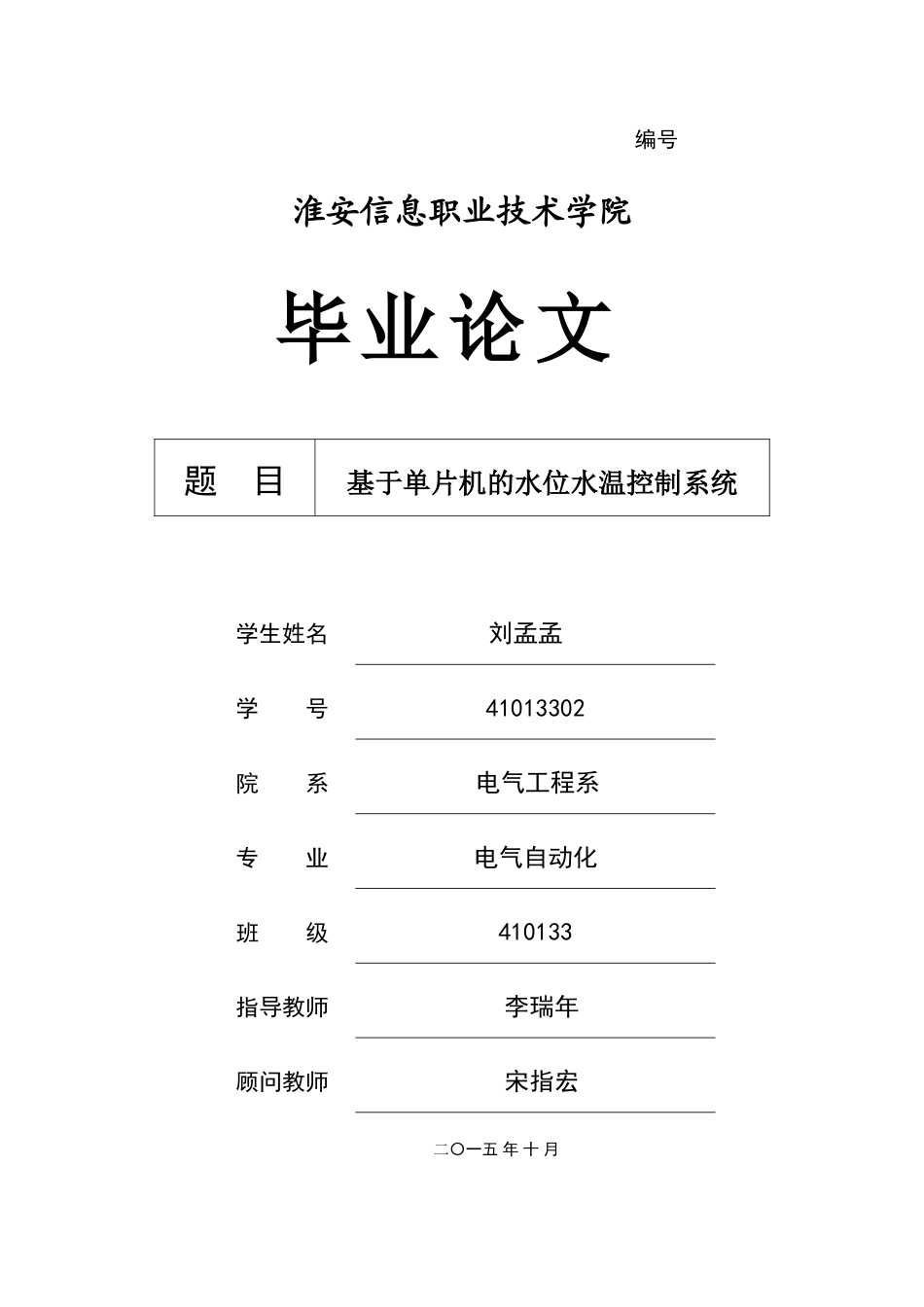

编号淮安信息职业技术学院毕业论文题目基于单片机的水位水温控制系统学生姓名刘孟孟学号41013302院系电气工程系专业电气自动化班级410133指导教师李瑞年顾问教师宋指宏二〇一五年十月I摘要摘要可编程控制器与单片机的出现大大提高了现代工业的自动化程度,改善了产品的工作性能。本次设计是对水温水位控制系统的智能化改进,采用单片机对其水温水位参数进行控制,提高了电器的工作稳定性,同时引进了数字传感器对水温进行数据采集,这样也就提高了系统的控制精度,对水位的控制结构简单,易于实现,具有很强的现实应用价值。本设计温度传感器采用DS18B20,DS18B20是美国Dallas公司生产的一线数字式温度计芯片,现在已完全取代DS1820。它具有结构简单,不需要外接元件,采用一根I/O数据线既可以供电又可以传输数据、并可以设有用户设置温度报警界限等特点。此次设计主控制器采用Philips公司生产的P89V51RD2单片机,P89V51RD2是常用的机型,功能强大,性能稳定。该产品可以广泛应用于各种环境,例如:铁路路基温度无线采集系统、水温实时检测系统、楼宇内温度监视系统等。虽然是对水温水位控制系统的改进,但是这种智能化的改进方法也可以应用到工业、生活的各个水温和水位控制的环境中去,对于其他相关参数的控制改进也具有一定的借鉴意义。此次的基于单片机的水温水位控制系统是一个改进性的智能化产品,以其自身的控制精度高、稳定性好和成本低的独特优点在今后将会由广泛的实用价值,其基于单片机的改进方法也具用广泛的应用意义。关键词:单片机DS18B20水温水位控制IIAbstractAbstractTheappearanceofBPPLCandPLChasgreatlyincreasedthemodernindustrialautomationandimprovedtheworkperformanceoftheproduct.Thedesignofthewatertemperaturecontrolsystemistoimprovetheintellectualized.Amonolithicintegratedcircuitsistocontrolthelevelofparameterandimprovethestabilityoftheelectricalwork,andmeantime,itintroducedanumberofthewatertemperaturesensorfordatacollection,italsoincreasesthecontrolsystemtocontrolthelevelofaccuracywithasimplestructure,whichiseasytoachieveandhasgreatpracticalvalue.ThedesigntemperaturesensorsusedDS18B20whichisadigitalthermometerchipproducedbytheDallascompanyandnowcompletelyreplacedDS1820.It’ssimpleanddoesn’tneedthecomponents.JustuseapieceofI/Odatalinecannotonlysupplythepower,butthedatatransmission.Moreover,ithasausersetting,youcanuseittosetthealarmboundaries.ThedesignofmastercontrollerusedthePhilipscompany’sP89V51RD2monolithicintegratedcircuits,whichistheusualtype.Ithasapowerfulfunctionandreliableperformance.Itcanbewidelyusedinvariouscircumstances.Suchas,railwaysystem,thetemperatureofreal-timetestingsystem,thepremisesofthesurveillancesystemandsoon.Thoughitisawaytoimprovethewatertemperaturecontrolsystem,theintellectualizedwaysofimprovementcanalsobeappliedtoindustrial,waterandthelevelcontroloftheenvironment.Forotherrelatedparameters,italsohasacertainmeaningusing.Therevivificationofthewatercontrolsystemisanintelligentproduct.Toitsowncontrolofhighprecision,stabilityandlowcostoftheadvantages,inthefuturetherewillbeawiderangeofpracticalvalue.What’smore,itsbasedonsinglewaysofimprovementhavewideapplicationmeaning.Keywords:singlechip;waterlevel’sexamination;watertemperature’sexaminationIII目录目录摘要.........................................................................................................IAbstract………………………………………………………………………………………II第一章系统设计方案讨论与选择..........................................................11.1引论..........................................................11.2系统设计方案的选择...........................................
