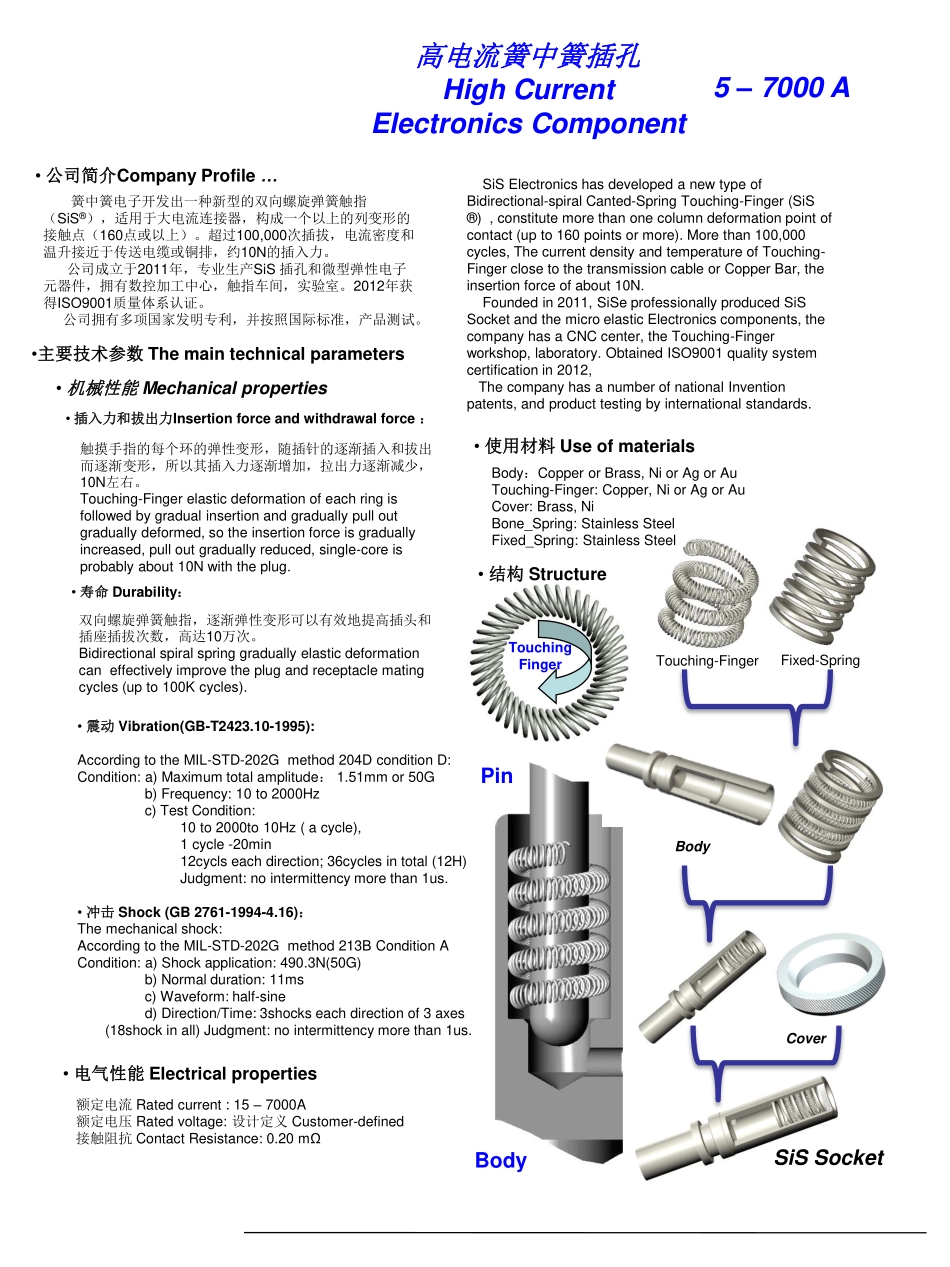

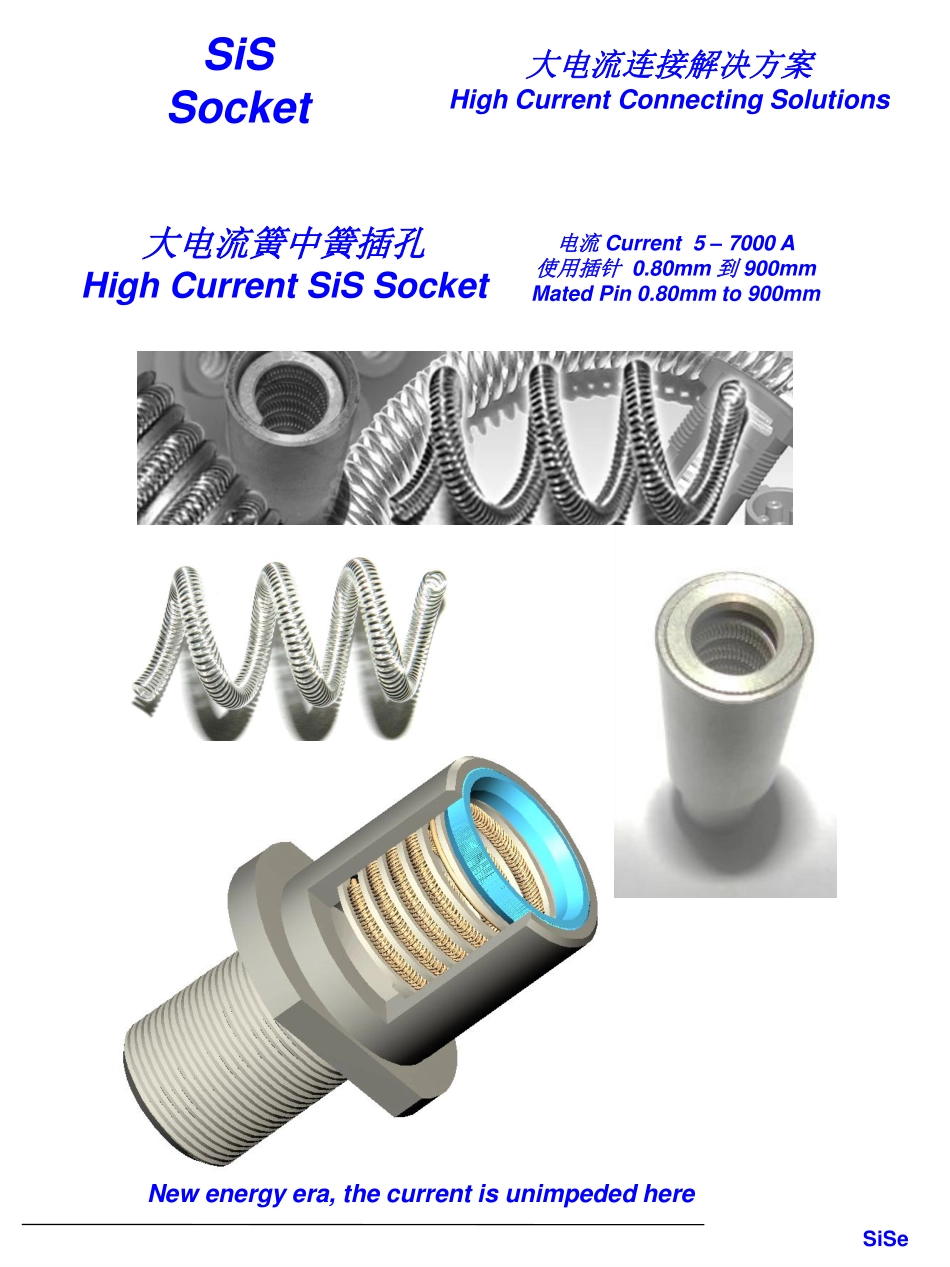

Newenergyera,thecurrentisunimpededhere大电流簧中簧插孔HighCurrentSiSSocketSiSSocket电流Current5–7000A使用插针0.80mm到900mmMatedPin0.80mmto900mmSiSe大电流连接解决方案HighCurrentConnectingSolutionsPinBody•公司简介CompanyProfile…簧中簧电子开发出一种新型的双向螺旋弹簧触指(SiS®),适用于大电流连接器,构成一个以上的列变形的接触点(160点或以上)。超过100,000次插拔,电流密度和温升接近于传送电缆或铜排,约10N的插入力。公司成立于2011年,专业生产SiS插孔和微型弹性电子元器件,拥有数控加工中心,触指车间,实验室。2012年获得ISO9001质量体系认证。公司拥有多项国家发明专利,并按照国际标准,产品测试。高电流簧中簧插孔HighCurrentElectronicsComponent5–7000ASiSElectronicshasdevelopedanewtypeofBidirectional-spiralCanted-SpringTouching-Finger(SiS®),constitutemorethanonecolumndeformationpointofcontact(upto160pointsormore).Morethan100,000cycles,ThecurrentdensityandtemperatureofTouching-FingerclosetothetransmissioncableorCopperBar,theinsertionforceofabout10N.Foundedin2011,SiSeprofessionallyproducedSiSSocketandthemicroelasticElectronicscomponents,thecompanyhasaCNCcenter,theTouching-Fingerworkshop,laboratory.ObtainedISO9001qualitysystemcertificationin2012,ThecompanyhasanumberofnationalInventionpatents,andproducttestingbyinternationalstandards.•主要技术参数Themaintechnicalparameters•插入力和拔出力Insertionforceandwithdrawalforce:•使用材料UseofmaterialsBody:CopperorBrass,NiorAgorAuTouching-Finger:Copper,NiorAgorAuCover:Brass,NiBone_Spring:StainlessSteelFixed_Spring:StainlessSteel•机械性能Mechanicalproperties•震动Vibration(GB-T2423.10-1995):AccordingtotheMIL-STD-202Gmethod204DconditionD:Condition:a)Maximumtotalamplitude:1.51mmor50Gb)Frequency:10to2000Hzc)TestCondition:10to2000to10Hz(acycle),1cycle-20min12cyclseachdirection;36cyclesintotal(12H)Judgment:nointermittencymorethan1us.•冲击Shock(GB2761-1994-4.16):Themechanicalshock:AccordingtotheMIL-STD-202Gmethod213BConditionACondition:a)Shockapplication:490.3N(50G)b)Normalduration:11msc)Waveform:half-sined)Direction/Time:3shockseachdirectionof3axes(18shockinall)Judgment:nointermittencymorethan1us.触摸手指的每个环的弹性变形,随插针的逐渐插入和拔出而逐渐变形,所以其插入力逐渐增加,拉出力逐渐减少,10N左右。Touching-Fingerelasticdeformationofeachringisfollowedbygradualinsertionandgraduallypulloutgraduallydeformed,sotheinsertionforceisgraduallyincreased,pulloutgraduallyreduced,single-coreisprobablyabout10Nwiththeplug.•寿命Durability:双向螺旋弹簧触指,逐渐弹性变形可以有效地提高插头和插座插拔次数,高达10万次。Bidirectionalspiralspringgraduallyelasticdeformationcaneffectivelyimprovetheplugandreceptaclematingcycles(upto100Kcycles).•电气性能Electricalproperties•结构StructureBodyTouching-FingerCoverSiSSocketTouchingFinger额定电流Ratedcurrent:15–7000A额定电压Ratedvoltage:设计定义Customer-defined接触阻抗ContactResistance:0.20mΩFixed-SpringSiSeC1,C2,OS1,OS2,TH1,TH2,TH3,TH4Touching-Fingercaneffectivelyenhancethecross-sectionalareaofthecurrent,inordertoensurethecurrentdensityofthecable,pins,fingertouchandjackisbasicallythesame.Frequentbidirectionalspiralspringandpinplug,surfacecoatedwiththewearresistanceofthesilver,whileadjustingwiththesizeofthefingertouchandpintoensurethateachringspringpininsertedpositivepressureinordertoobtainlesscontactwiththesurfaceimpedanceRCandgoodinsertionandextractionforces.Calculatedonthebidirectional-wayspiralspringtouchthegreatmulti-touchcontact(upto400)andinsertionandextractionforces,toachievehighcurrentconnectortemperaturerise,tensofthousandsofmatingcycles.C1SeriesC2SeriesOS1SeriesOS2SeriesTH1SeriesTH2SeriesTH4SeriesTH3Series簧中簧插孔种类SiSSocketType弹簧触指可以有效地增强横截面面积,以确保电缆的电流密度下,插针、触摸和插孔基本上是相同的。触指和插针,表面电镀有耐磨损银,同时调整的触指和装置孔的尺寸,以确保每个环弹簧结于插入插针正压力,以获得较少的接触的表面阻抗RC和良好的插入和拔出力。双向螺旋弹簧触指提供多触点接触(400个)。铆线电源插孔CrimpingSiSSocket焊接或螺纹电源插孔WeldingorthreadedpowerJack穿孔式电源插孔Through-HoleSiSSocket单芯大电流航空接头Single-corehighcurrentaviationconnectorSiS3.60SocketSAEJ1772EVChargerSiS6.00SocketGBEVCharger
