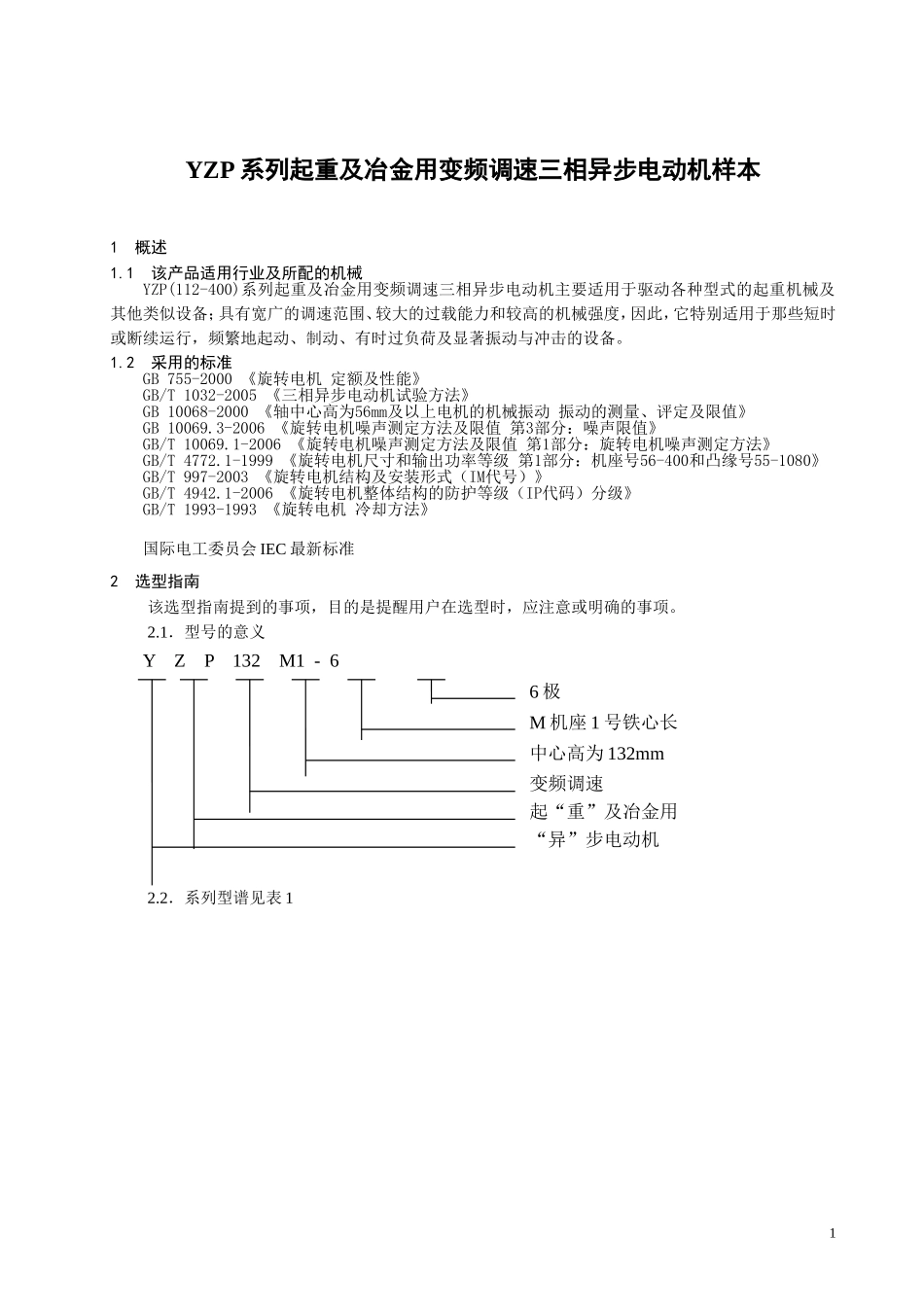

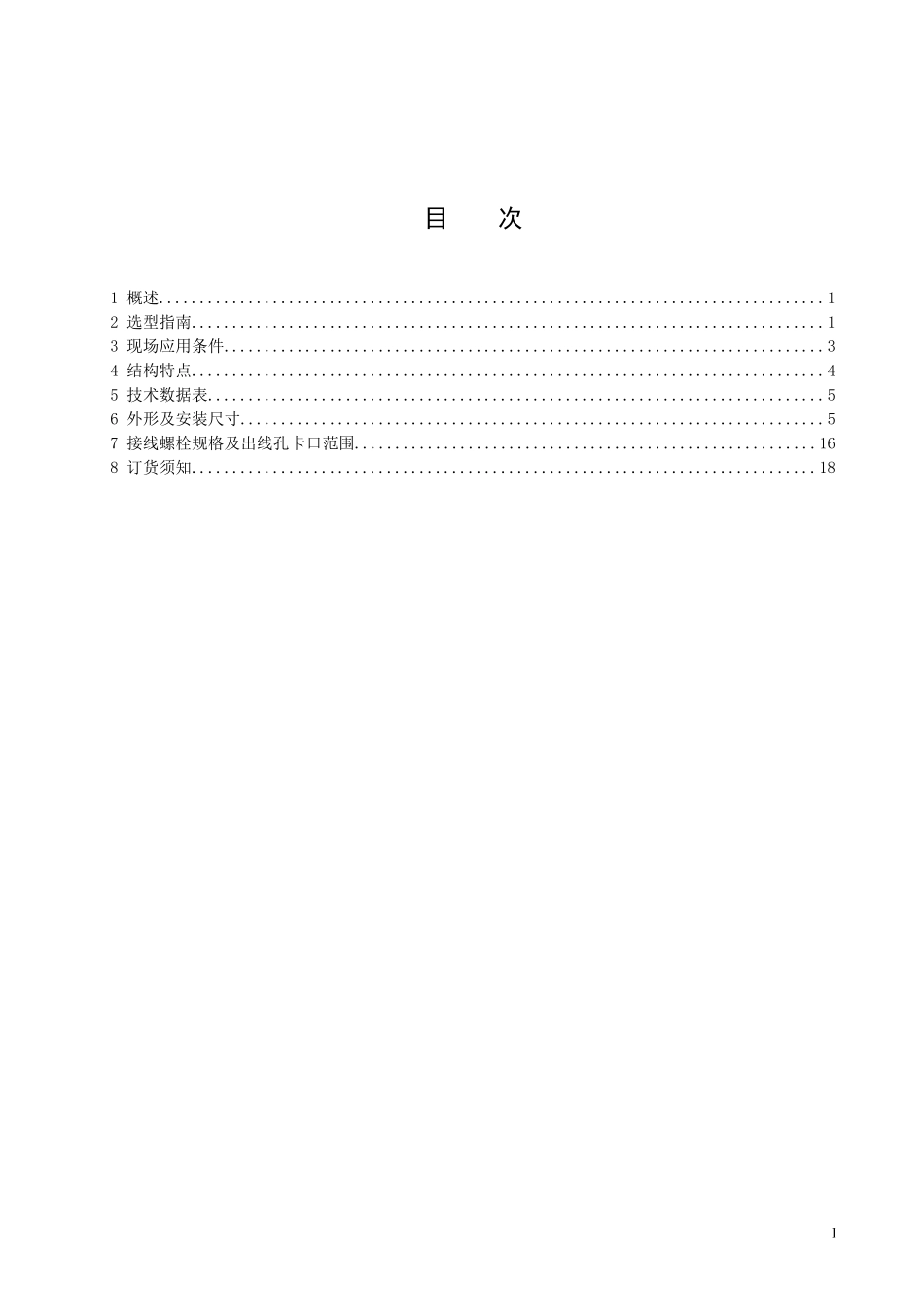

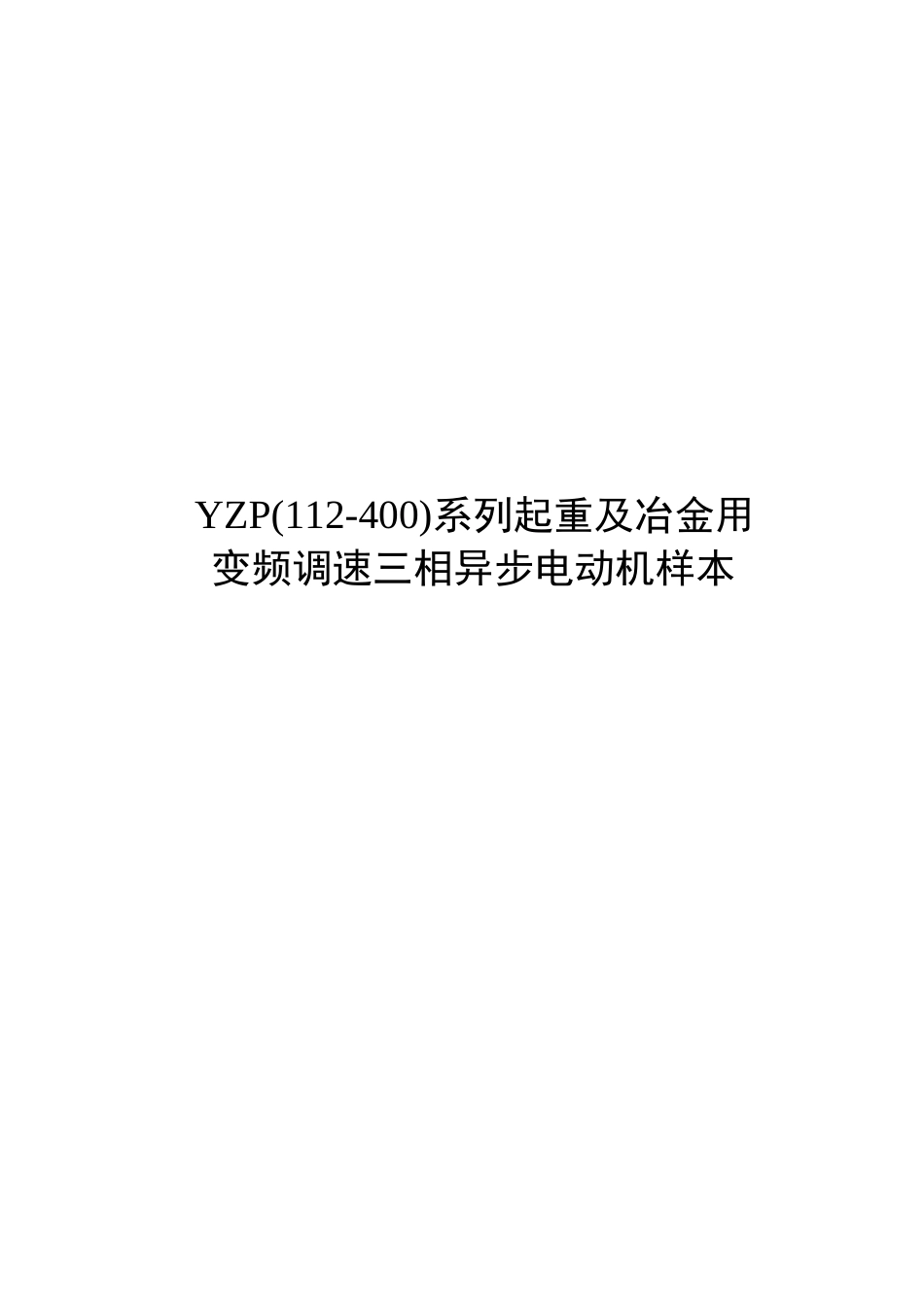

YZP(112-400)系列起重及冶金用变频调速三相异步电动机样本目次1概述..................................................................................12选型指南..............................................................................13现场应用条件..........................................................................34结构特点..............................................................................45技术数据表............................................................................56外形及安装尺寸........................................................................57接线螺栓规格及出线孔卡口范围.........................................................168订货须知.............................................................................18IYZP系列起重及冶金用变频调速三相异步电动机样本1概述1.1该产品适用行业及所配的机械YZP(112-400)系列起重及冶金用变频调速三相异步电动机主要适用于驱动各种型式的起重机械及其他类似设备；具有宽广的调速范围、较大的过载能力和较高的机械强度，因此，它特别适用于那些短时或断续运行，频繁地起动、制动、有时过负荷及显著振动与冲击的设备。1.2采用的标准GB755-2000《旋转电机定额及性能》GB/T1032-2005《三相异步电动机试验方法》GB10068-2000《轴中心高为56mm及以上电机的机械振动振动的测量、评定及限值》GB10069.3-2006《旋转电机噪声测定方法及限值第3部分：噪声限值》GB/T10069.1-2006《旋转电机噪声测定方法及限值第1部分：旋转电机噪声测定方法》GB/T4772.1-1999《旋转电机尺寸和输出功率等级第1部分：机座号56-400和凸缘号55-1080》GB/T997-2003《旋转电机结构及安装形式（IM代号）》GB/T4942.1-2006《旋转电机整体结构的防护等级（IP代码）分级》GB/T1993-1993《旋转电机冷却方法》国际电工委员会IEC最新标准2选型指南该选型指南提到的事项，目的是提醒用户在选型时，应注意或明确的事项。2.1．型号的意义YZP132M1-66极M机座1号铁心长中心高为132mm变频调速起“重”及冶金用“异”步电动机2.2．系列型谱见表11表1工作方式S2S36次/小时负载持续率30min60min15%25%40%60%100%15001000750600150010007506001500100075060015001000750600150010007506001500100075060015001000750600YZP112M13.31.73.01.54.02.23.31.73.01.52.61.32.01.1YZP112M24.52.54.02.25.03.04.52.54.02.23.51.83.01.5YZP132M16.33.35.53.07.54.06.33.35.53.04.82.64.02.0YZP132M27.04.06.33.79.05.07.04.06.33.75.33.24.82.5YZP160M18.56.37.55.510.07.58.56.37.55.56.34.85.04.0YZP160M213.08.511.07.514.010.013.08.511.07.59.56.38.85.5YZP160L17.013.08.515.011.07.520.015.011.017.013.08.515.011.07.513.09.06.311.07.55.5YZP180L25.017.013.022.015.011.029.020.015.025.017.013.022.015.011.019.013.09.516.011.08.0YZP200L35.025.017.030.022.015.039.031.022.035.025.017.030.022.015.026.019.013.022.016.011.0YZP225M42.035.026.037.030.022.050.040.030.042.035.026.037.030.022.032.025.019.027.022.016.0YZP250M152.042.036.045.037.030.060.050.042.052.042.036.045.037.030.039.032.026.033.027.022.0YZP250M263.052.042.055.045.037.075.063.052.063.052.042.055.045.037.047.039.032.040.033.027.0YZP280S170.063.052.042.063.055.045.037.095.075.060.055.070.063.052.042.063.055.045.037.055.048.039.032.048.040.033.027.0YZP280S285.070.075.063.0115.085.085.070.063.075.063.055.063.053.047.055.046.040.0YZP280M100.085.063.052.090.075.055.045.0120.0100.075.063.0100.085.070.052.090.075.063.045.075.063.053.039.065.055.046.033.0YZP315S1125.0103.070.063.0110.090.063.055.0140.0120.084.075.0125.0103.085.063.0110.090.075.055.092.075.063.047.080.065.55.040.0YZP315S285.070.075.063.0100.084.070.063.053.046.0YZP315M155.0125.0100....
