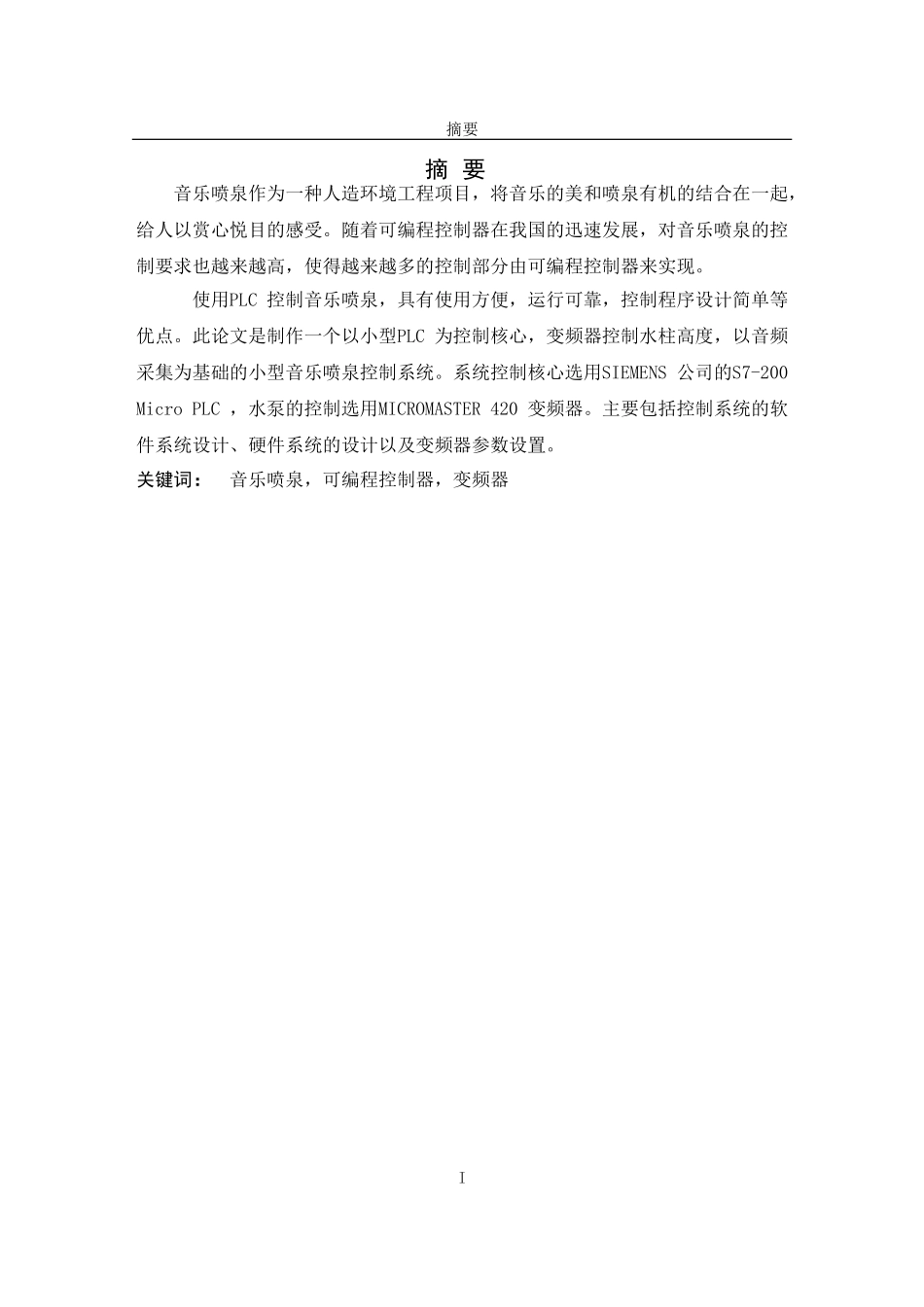

泰山学院本科毕业论文基于PLC音乐喷泉控制系统的设计所在学院机械工程学院专业名称机械设计制造及其自动化申请学士学位所属学科工学年级二〇一一级(3+2)摘要学生姓名、学号王鲁静2011170294指导教师姓名、职称陈宏圣副教授完成日期二〇一三年五月摘要摘要音乐喷泉作为一种人造环境工程项目,将音乐的美和喷泉有机的结合在一起,给人以赏心悦目的感受。随着可编程控制器在我国的迅速发展,对音乐喷泉的控制要求也越来越高,使得越来越多的控制部分由可编程控制器来实现。使用PLC控制音乐喷泉,具有使用方便,运行可靠,控制程序设计简单等优点。此论文是制作一个以小型PLC为控制核心,变频器控制水柱高度,以音频采集为基础的小型音乐喷泉控制系统。系统控制核心选用SIEMENS公司的S7-200MicroPLC,水泵的控制选用MICROMASTER420变频器。主要包括控制系统的软件系统设计、硬件系统的设计以及变频器参数设置。关键词:音乐喷泉,可编程控制器,变频器IABSTRACTABSTRACTThemusicfountainasanartificialenvironmentengineeringproject,willbethebeautyofmusicandfountainareorganicallycombinedtogether,giveapersonwithpleasantfeelings.WiththeprogrammablecontrollerinChina'srapiddevelopment,themusicfountaincontrolrequirementsarealsogettinghigherandhigher,makingmoreandmorecontroloftheimplementedbyprogrammablecontroller.UsePLCtocontrolthemusicfountain,iseasytouse,reliableoperation,hastheadvantagesofsimplecontrolprogramdesign.MakingasmallPLCascontrolcore,theinvertertocontroltheheightofthewatercolumn,smallmusicfountainbasedontheaudiocollectioncontrolsystem.ThecoreofthesystemcontrolbytheuseofSIEMENS'sS7-200MicroPLC,pumpcontrolusingMICROMASTER420converter.Thispapermainlyintroducesthecontrolsystemsoftwaredesignofmusicalfountain,focusingonPLCprogrammingandthetransducerparametersettings.KEYWORDS:Musicalfountain,PLC,Transducer目录引言-------------------------------------------------------------------11PLC基础知识简介-----------------------------------------------------2IABSTRACT1.1PLC的产生和发展---------------------------------------------------21.2PLC的特点与应用---------------------------------------------------21.3PLC的工作原理及工作过程------------------------------------------32变频器基础----------------------------------------------------------52.1变频器概述----------------------------------------------------------52.2变频器技术的发展---------------------------------------------------52.2.1变频器的分类-----------------------------------------------------52.3变频器的工作原理以及控制方式-----------------------------------52.3.1变频器的工作原理-----------------------------------------------52.3.2变频器的控制方式-----------------------------------------------62.4MICROMASTER420概述-------------------------------------------------72.5MM420变频器的电路结构--------------------------------------------73系统总体介绍--------------------------------------------------------103.1音乐喷泉组成-----------------------------------------------------103.1.1音乐喷泉水池设计-----------------------------------------------103.1.2控制系统组成---------------------------------------------------104控制系统的硬件设计-------------------------------------------------124.1PLC控制系统I/O口的估算------------------------------------------124.2PLC的选型----------------------------------------------------------134.3PLC输入/输出点分配-----------------------------------------------144.4PLC控制接线图-----------------------------------------------------155变频器及控制参数设计---------------------------...
