主变压器试验绕组变形等报告VIP免费

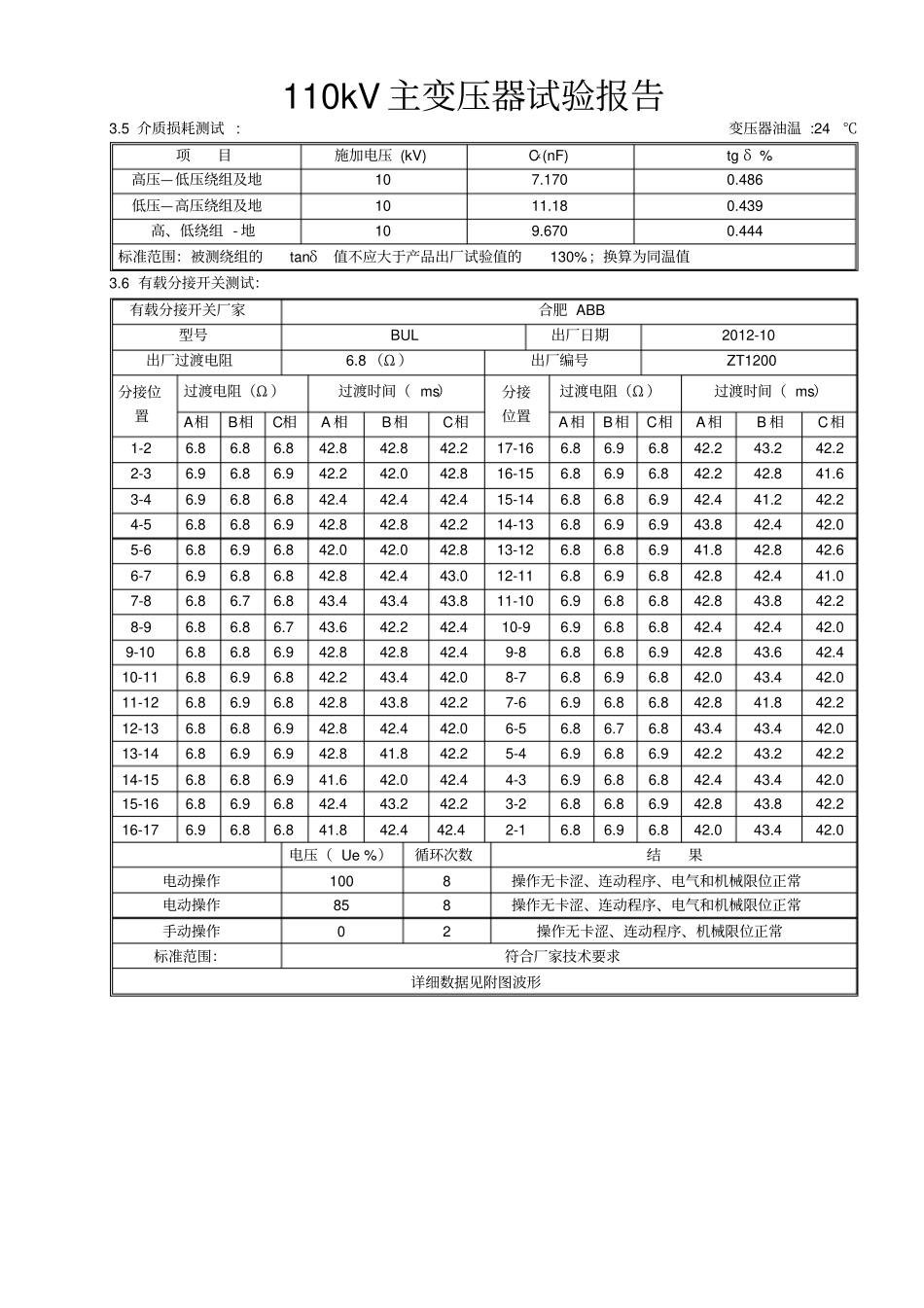

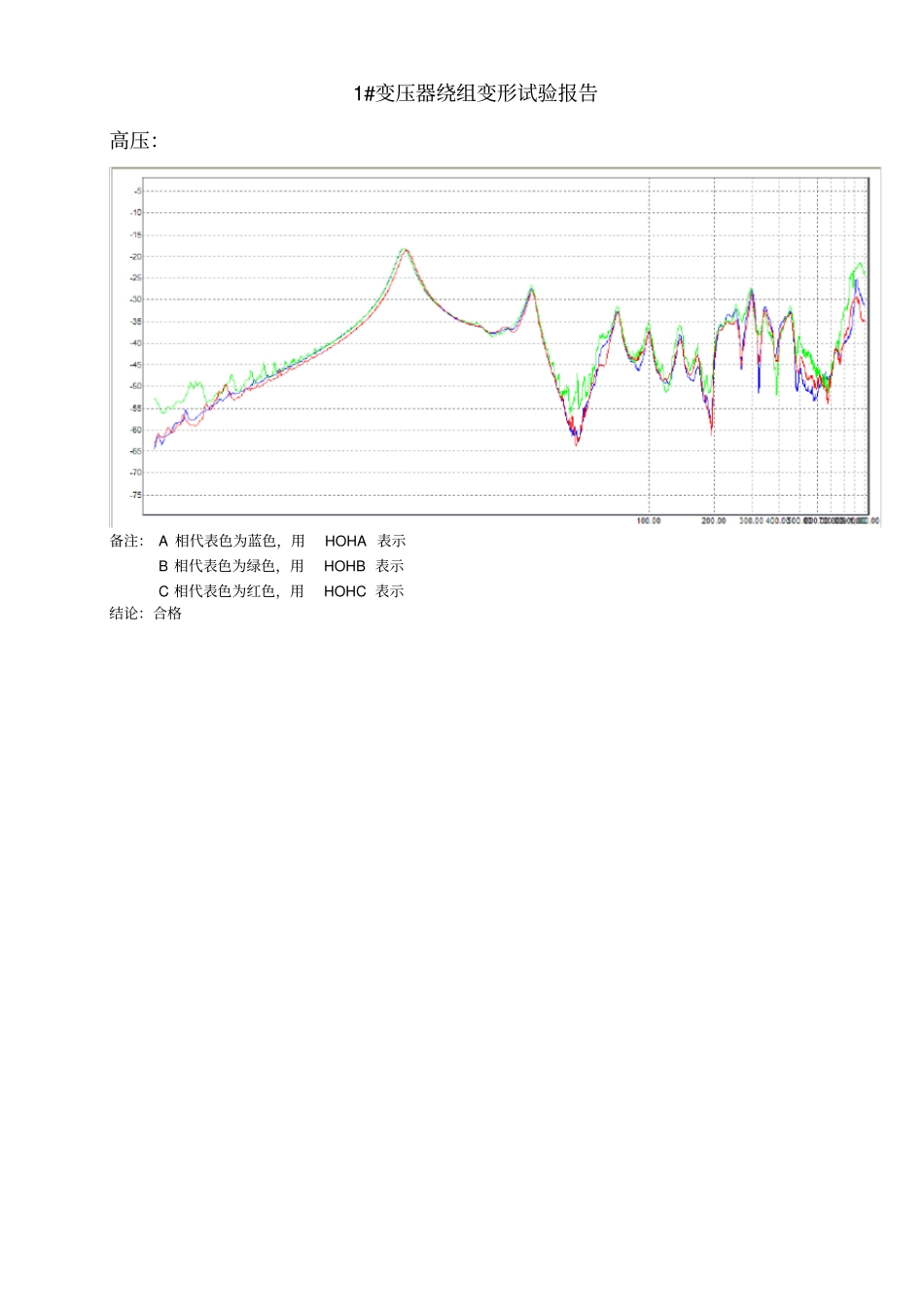

110kV主变压器试验报告3.5介质损耗测试:变压器油温:24℃项目施加电压(kV)Cx(nF)tgδ%高压—低压绕组及地107.1700.486低压—高压绕组及地1011.180.439高、低绕组-地109.6700.444标准范围：被测绕组的tanδ值不应大于产品出厂试验值的130%；换算为同温值3.6有载分接开关测试：有载分接开关厂家合肥ABB型号BUL出厂日期2012-10出厂过渡电阻6.8（Ω）出厂编号ZT1200分接位置过渡电阻（Ω）过渡时间（ms）分接位置过渡电阻（Ω）过渡时间（ms）A相B相C相A相B相C相A相B相C相A相B相C相1-26.86.86.842.842.842.217-166.86.96.842.243.242.22-36.96.86.942.242.042.816-156.86.96.842.242.841.63-46.96.86.842.442.442.415-146.86.86.942.441.242.24-56.86.86.942.842.842.214-136.86.96.943.842.442.05-66.86.96.842.042.042.813-126.86.86.941.842.842.66-76.96.86.842.842.443.012-116.86.96.842.842.441.07-86.86.76.843.443.443.811-106.96.86.842.843.842.28-96.86.86.743.642.242.410-96.96.86.842.442.442.09-106.86.86.942.842.842.49-86.86.86.942.843.642.410-116.86.96.842.243.442.08-76.86.96.842.043.442.011-126.86.96.842.843.842.27-66.96.86.842.841.842.212-136.86.86.942.842.442.06-56.86.76.843.443.442.013-146.86.96.942.841.842.25-46.96.86.942.243.242.214-156.86.86.941.642.042.44-36.96.86.842.443.442.015-166.86.96.842.443.242.23-26.86.86.942.843.842.216-176.96.86.841.842.442.42-16.86.96.842.043.442.0电压（Ue%）循环次数结果电动操作1008操作无卡涩、连动程序、电气和机械限位正常电动操作858操作无卡涩、连动程序、电气和机械限位正常手动操作02操作无卡涩、连动程序、机械限位正常标准范围：符合厂家技术要求详细数据见附图波形1#变压器绕组变形试验报告低压：备注：a相代表色为蓝色，用LOLA表示b相代表色为绿色，用LOLB表示c相代表色为红色，用LOLC表示结论：合格1#变压器绕组变形试验报告高压：备注：A相代表色为蓝色，用HOHA表示B相代表色为绿色，用HOHB表示C相代表色为红色，用HOHC表示结论：合格
