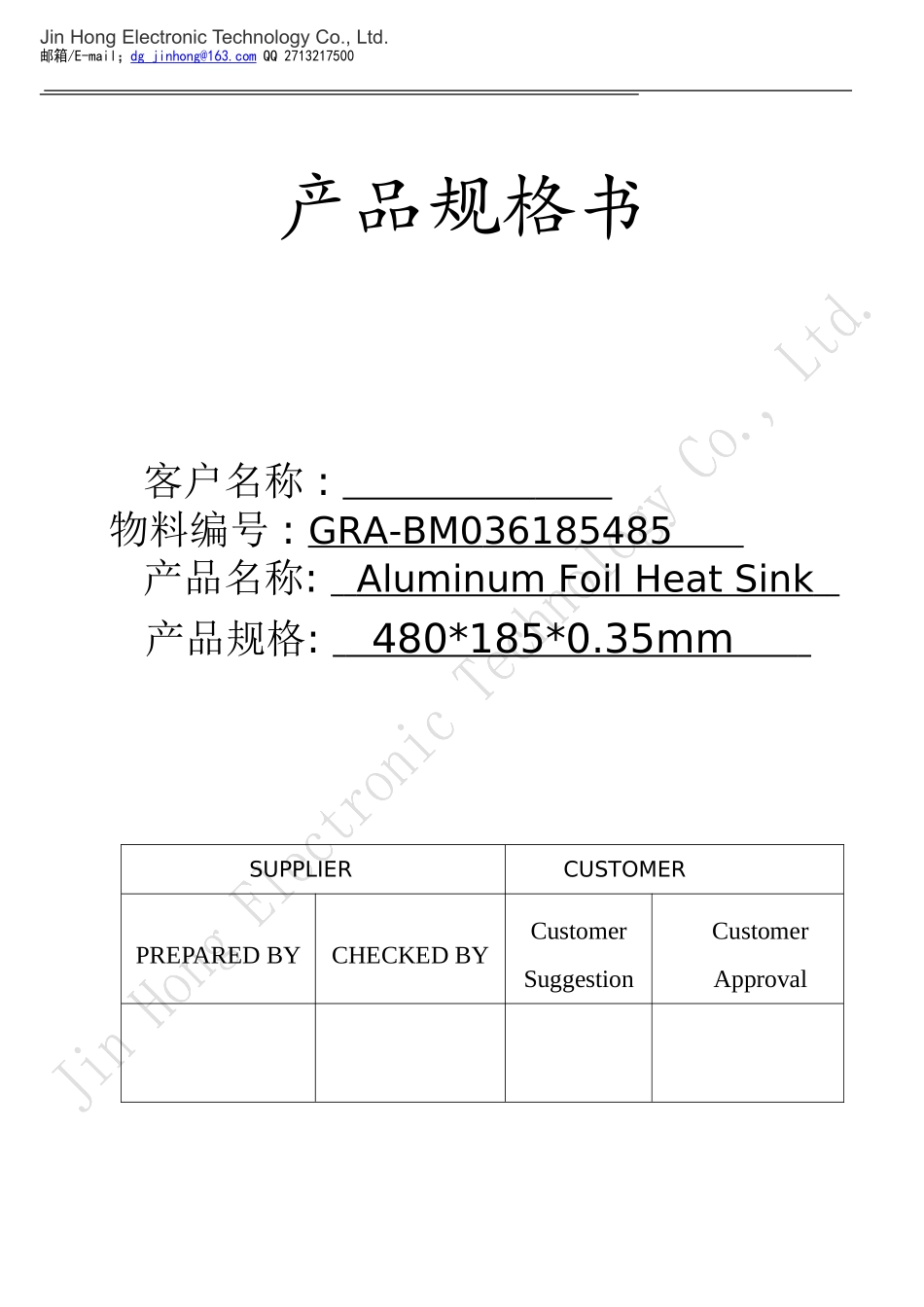

JinHongElectronicTechnologyCo.,Ltd.邮箱/E-mail；dg_jinhong@163.comQQ2713217500产品规格书客户名称:物料编号:GRA-BM036185485产品名称:AluminumFoilHeatSink产品规格:480*185*0.35mmSUPPLIERCUSTOMERPREPAREDBYCHECKEDBYCustomerSuggestionCustomerApprovalJinHongElectronicTechnologyCo.,Ltd.邮箱/E-mail；dg_jinhong@163.comQQ2713217500铝箔基材纳米碳系列技术数据表第1版修订日期：2014/11/18产品简介：奈米辐射散热片产品，系利用高热传导性的金属，如铜、铝，并对此金属基材表面进行特殊处理，再结合高辐射特性的奈米材料，置备出上述特殊的介质结构，同时具备(均/散)热性能佳、轻薄之复合基材散热片。在现今电子产品材料不断追求微小化与轻薄化的趋势下，能提供电子产品消散废热并提高其稳定性与可靠度。GRA系列产品乃以铝箔材料为主，经表面处理与固态奈米辐射散热材料涂布后，置备出可取代现今电子系统常使用石墨片或金属箔片。本系列产品并可搭配专属设计的高导热超薄散热背胶，使产品具有绝佳的效能与轻薄的方便性。基本特性：Goodshapereliability,ReworkandProcessabilityEasyhandlingandoperationEco-friendlyonRoHScompliantTemperatureoperating>100℃CustomizedApplicationsforshape,dimension应用领域：LED/LCD、IPAD、游戏机、TV笔记本电脑网络盒子、机顶盒路由器，功放、行车记录仪各类便携式手持设备手机产品性能(FunctionalCharacteristics)A.ThermalRayHeatDissipationFoilITEMVALUEUNITMethodA.BasicRemarkJinHongElectronicTechnologyCo.,Ltd.邮箱/E-mail；dg_jinhong@163.comQQ27132175001.Desity2.7g/cm32.Thermalconductivity>218w/m-kAluminumFoil3.Emissivity>0.92TestbyET100(28℃)4.GRAsize480*185mmTypical5.TotalThickness0.35mmTypicalB.NanoRayCoatingSpecifications1.ColorBlackVisual2.AdhesionCrosscut100/100%ASTMD33593.ImpactTestCollisionfreeDuPont500gx50cm4.Saltwaterspray(Surface)>500hrsASTMB1175.HardnessHASTMD33636.CoatingThickness0.03-0.8μmASTMD11867.SurfaceConductivity105ΩANSISTM11.118.Anti-AlcoholWipe20timesNofading9.Glossiness15-25GSGlossMeter10.Coloraberration△E≤1.0Colorimeter11.Composition60-80/10-20/10-15/10%Resin/filler/additive/FlowagentC.ConductiveAdhesiveTapeSpecification1.CarrierAcrylfilmorPaper2.AdhesiveTissue3.ColorWhitetransparentTypical4.LinerColor,Type,PrintWhite,120gsmPCK,3Mlogo5.WeatherResistantYes6.AgingResistantYes7.ThicknessTotal0.14mm8.Adhesiontostainlesssteel（72hourRT）140N/100mm9.ServiceTemperatureLong-termtemperatureresistance80℃SGSTestReportTestRequestedValueRoHS(2002/95/EC)UptostandardReliabilityTestItemsonNanoCoatinglayerJinHongElectronicTechnologyCo.,Ltd.邮箱/E-mail；dg_jinhong@163.comQQ2713217500No.TestItemsTeststandardTestmethodInspectionstandardConclusion1SaltWaterSprayTestGB/T10125-1977In35for5%NaCIspray1000hourstestNofoaming,nopeeling,norustpass2AcidresistanceJIS-K-56006.1Usethe5%H2SO4solutionatroomtemperaturefor300hoursNofoaming,nopeeling,norustpass3AlkaliresistanceJIS-K-56006.1Usethe5%H2SO4solutionatroomtemperaturefor24hoursNofoaming,nopeeling,norustpass4BoilingresistanceJIS-K-56006.3BBoilingwaterandcookfor1hourNofoaming,nopeeling,norustpassNote:1.Productsurfacewithoutscratches,dirt,silk,mimeographedphenomenon.2.Thermalgluestickwithcopperfoiltightly,nobubbleandbreakageissues.3.Theproductsurfacein100mmx100mm,onlyallowedlessthan5convexpointsorwrinklesappear.4.Theabovedataonlysuppliesthereference,aftertheusertoactaccordingtotheirProductmuststriveforrealismmatches,decisiondemand.产品规格(FunctionalSpecifictions)总厚度T(mm)0.36(含背胶)尺寸X(mm)*Y485X180mm包装(package)80PCS/boxNamingRule(命名规则)Product-ConstructionNumbersofOutlineJinHongElectronicTechnologyCo.,Ltd.邮箱/E-mail；dg_jinhong@163.comQQ2713217500SeriesTypeThicknessdimensionGRA-BM036180485(产品型别)(结构)(厚度条数)(外观尺寸)OrderCode:PartNumber厚度(mm)Thickness尺寸(mm)Size(X宽度)尺寸(mm)Size(Y长度)包装PackageGRA-BM0361804850.36185480PCS出货品检表INSPECTIONCustomer:Date:2014/11/18ProductLotNo.QuantityOrderNo.MaterialInspectionItemsQualifiedRemarksX:185±1mmY:480±2mmT:0.36±0.02mJinHongElectronicTechnologyCo.,Ltd.邮箱/E-mail；dg_jinhong@163.comQQ2713217500
