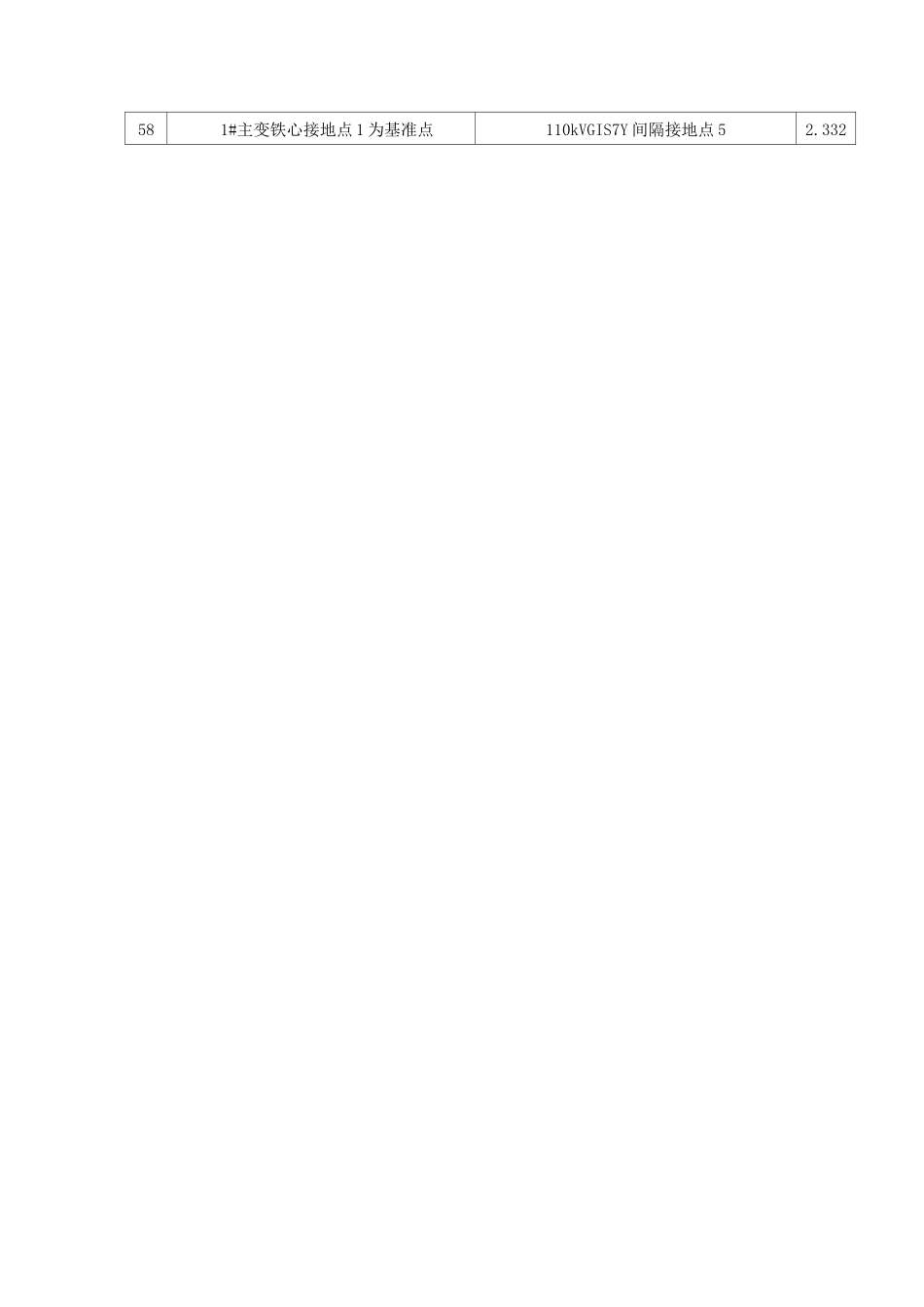

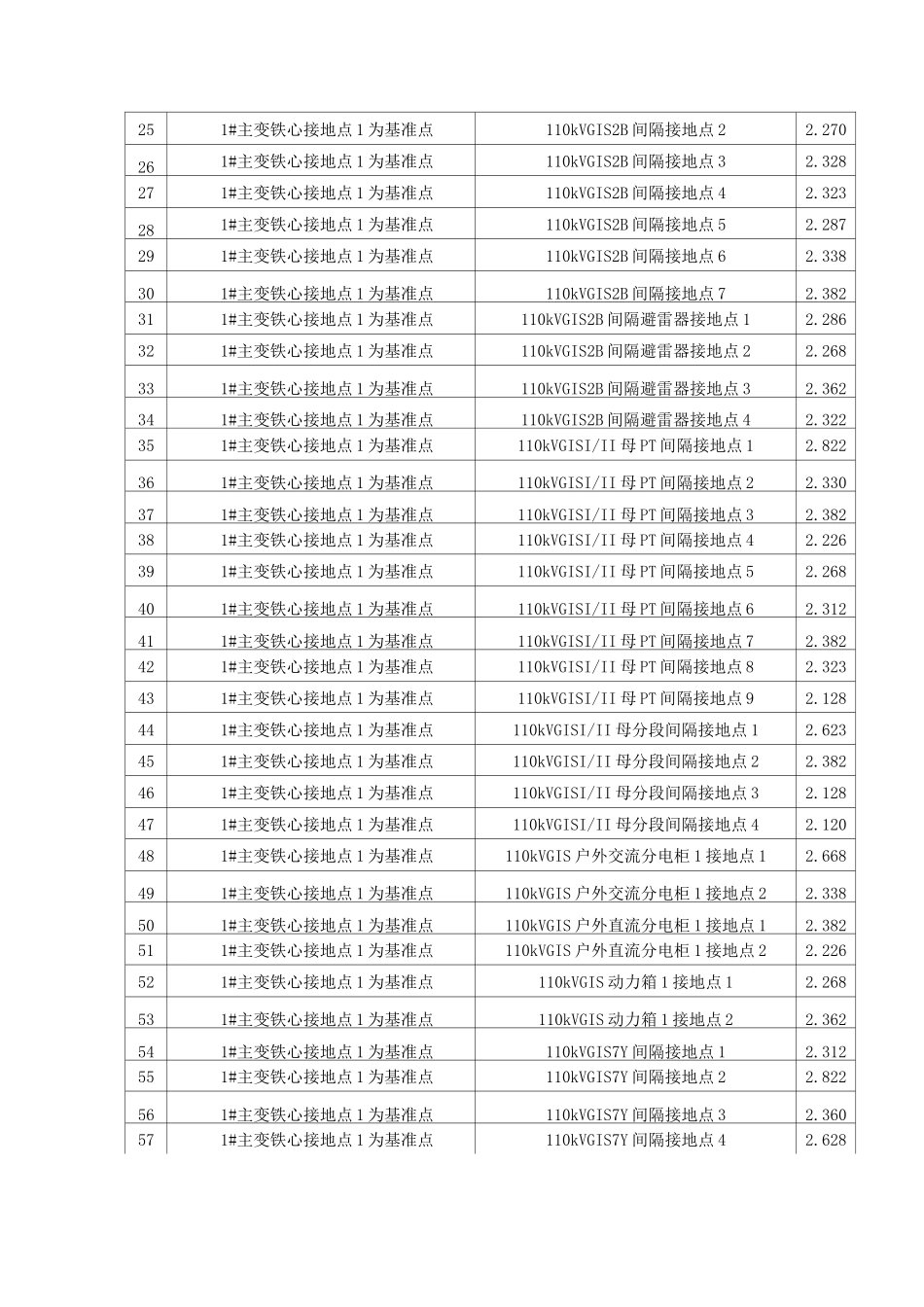

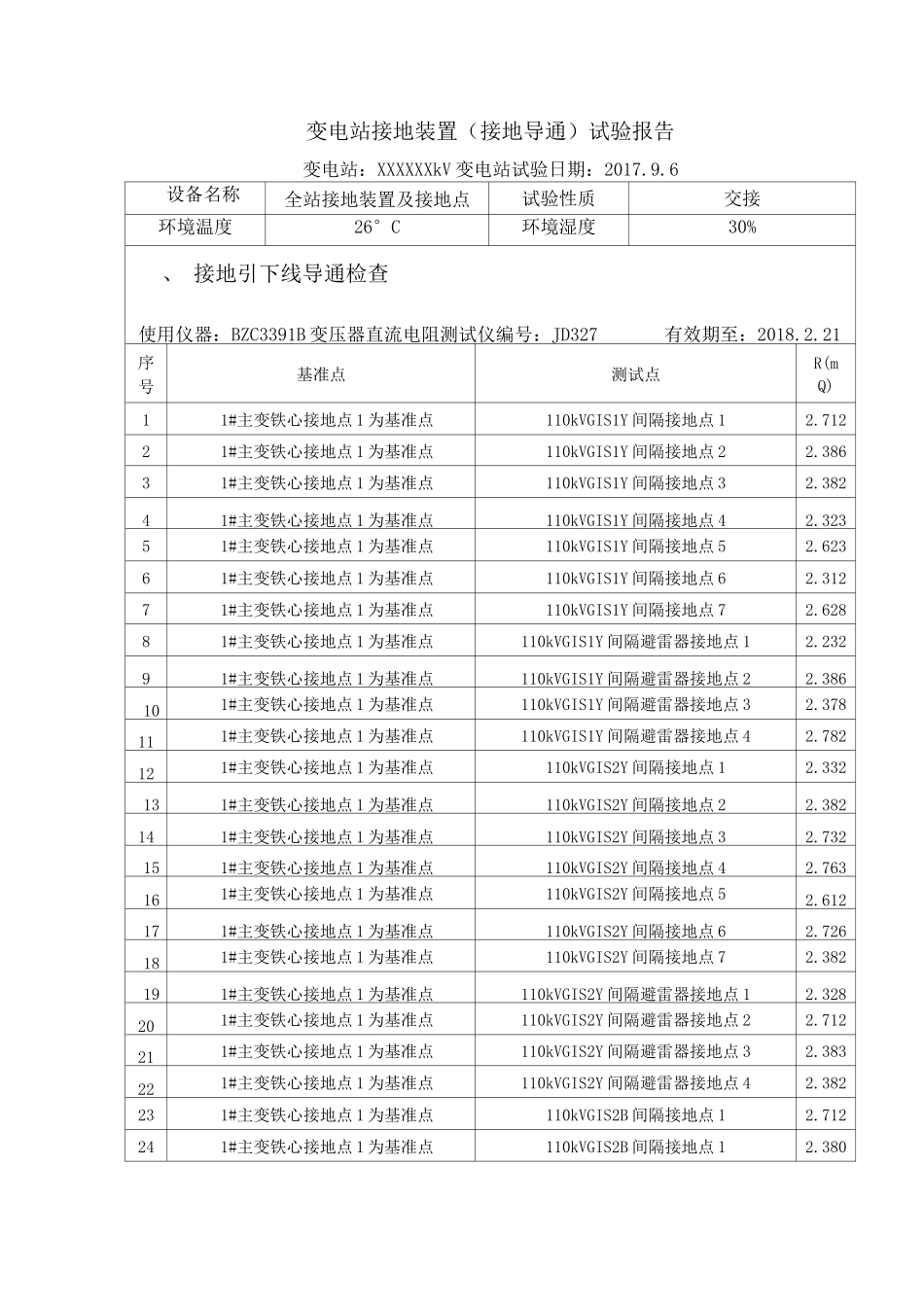

变电站接地装置（接地导通）试验报告变电站：XXXXXXkV变电站试验日期：2017.9.6设备名称全站接地装置及接地点试验性质交接环境温度26°C环境湿度30%、接地引下线导通检查使用仪器：BZC3391B变压器直流电阻测试仪编号：JD327有效期至：2018.2.21序号基准点测试点R(mQ)11#主变铁心接地点1为基准点110kVGIS1Y间隔接地点12.71221#主变铁心接地点1为基准点110kVGIS1Y间隔接地点22.38631#主变铁心接地点1为基准点110kVGIS1Y间隔接地点32.38241#主变铁心接地点1为基准点110kVGIS1Y间隔接地点42.32351#主变铁心接地点1为基准点110kVGIS1Y间隔接地点52.62361#主变铁心接地点1为基准点110kVGIS1Y间隔接地点62.31271#主变铁心接地点1为基准点110kVGIS1Y间隔接地点72.62881#主变铁心接地点1为基准点110kVGIS1Y间隔避雷器接地点12.23291#主变铁心接地点1为基准点110kVGIS1Y间隔避雷器接地点22.386101#主变铁心接地点1为基准点110kVGIS1Y间隔避雷器接地点32.378111#主变铁心接地点1为基准点110kVGIS1Y间隔避雷器接地点42.782121#主变铁心接地点1为基准点110kVGIS2Y间隔接地点12.332131#主变铁心接地点1为基准点110kVGIS2Y间隔接地点22.382141#主变铁心接地点1为基准点110kVGIS2Y间隔接地点32.732151#主变铁心接地点1为基准点110kVGIS2Y间隔接地点42.763161#主变铁心接地点1为基准点110kVGIS2Y间隔接地点52.612171#主变铁心接地点1为基准点110kVGIS2Y间隔接地点62.726181#主变铁心接地点1为基准点110kVGIS2Y间隔接地点72.382191#主变铁心接地点1为基准点110kVGIS2Y间隔避雷器接地点12.328201#主变铁心接地点1为基准点110kVGIS2Y间隔避雷器接地点22.712211#主变铁心接地点1为基准点110kVGIS2Y间隔避雷器接地点32.383221#主变铁心接地点1为基准点110kVGIS2Y间隔避雷器接地点42.382231#主变铁心接地点1为基准点110kVGIS2B间隔接地点12.712241#主变铁心接地点1为基准点110kVGIS2B间隔接地点12.380251#主变铁心接地点1为基准点110kVGIS2B间隔接地点22.270261#主变铁心接地点1为基准点110kVGIS2B间隔接地点32.328271#主变铁心接地点1为基准点110kVGIS2B间隔接地点42.323281#主变铁心接地点1为基准点110kVGIS2B间隔接地点52.287291#主变铁心接地点1为基准点110kVGIS2B间隔接地点62.338301#主变铁心接地点1为基准点110kVGIS2B间隔接地点72.382311#主变铁心接地点1为基准点110kVGIS2B间隔避雷器接地点12.286321#主变铁心接地点1为基准点110kVGIS2B间隔避雷器接地点22.268331#主变铁心接地点1为基准点110kVGIS2B间隔避雷器接地点32.362341#主变铁心接地点1为基准点110kVGIS2B间隔避雷器接地点42.322351#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点12.822361#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点22.330371#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点32.382381#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点42.226391#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点52.268401#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点62.312411#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点72.382421#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点82.323431#主变铁心接地点1为基准点110kVGISI/II母PT间隔接地点92.128441#主变铁心接地点1为基准点110kVGISI/II母分段间隔接地点12.623451#主变铁心接地点1为基准点110kVGISI/II母分段间隔接地点22.382461#主变铁心接地点1为基准点110kVGISI/II母分段间隔接地点32.128471#主变铁心接地点1为基准点110kVGISI/II母分段间隔接地点42.120481#主变铁心接地点1为基准点110kVGIS户外交流分电柜1接地点12.668491#主变铁心接地点1为基准点110kVGIS户外交流分电柜1接地点22.338501#主变铁心接地点1为基准点110kVGIS户外直流分电柜1接地点12.382511#主变铁心接地点1为基准点110kVGIS户外直流分电柜1接地点22.226521#主变铁心接地点1为基准点110kVGIS动力箱1接地点12.268531#主变铁心接地点1为基准点110kVGIS动力箱1接地点22.362541#主变铁心接地点1为基准点110kVGIS7Y间隔接地点12.312551#主变铁心接地点1为基准点110kVGI...
