S7-200-21X-老系列的接线图VIP免费

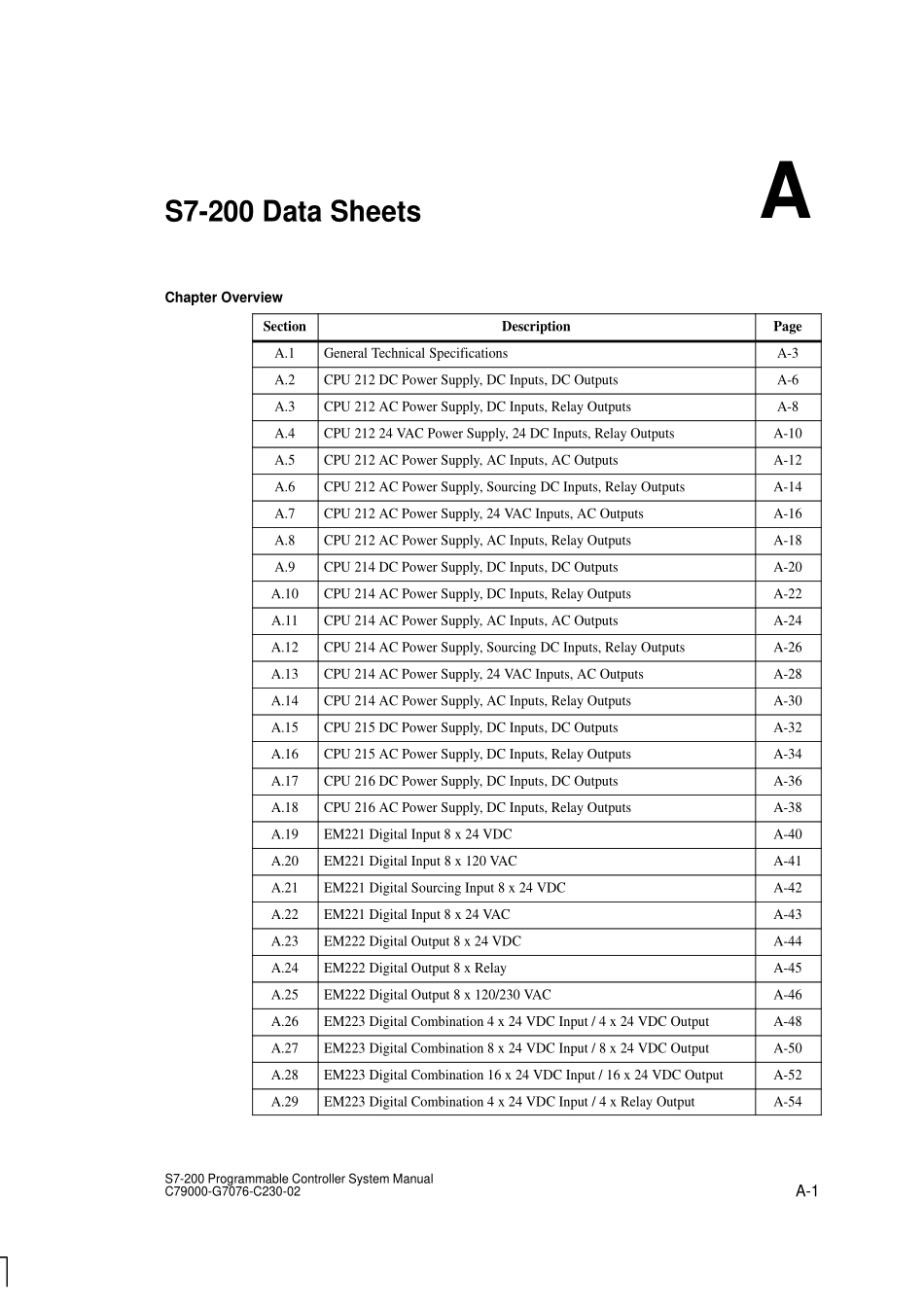

A-1S7-200ProgrammableControllerSystemManualC79000-G7076-C230-02S7-200DataSheetsChapterOverviewSectionDescriptionPageA.1GeneralTechnicalSpecificationsA-3A.2CPU212DCPowerSupply,DCInputs,DCOutputsA-6A.3CPU212ACPowerSupply,DCInputs,RelayOutputsA-8A.4CPU21224VACPowerSupply,24DCInputs,RelayOutputsA-10A.5CPU212ACPowerSupply,ACInputs,ACOutputsA-12A.6CPU212ACPowerSupply,SourcingDCInputs,RelayOutputsA-14A.7CPU212ACPowerSupply,24VACInputs,ACOutputsA-16A.8CPU212ACPowerSupply,ACInputs,RelayOutputsA-18A.9CPU214DCPowerSupply,DCInputs,DCOutputsA-20A.10CPU214ACPowerSupply,DCInputs,RelayOutputsA-22A.11CPU214ACPowerSupply,ACInputs,ACOutputsA-24A.12CPU214ACPowerSupply,SourcingDCInputs,RelayOutputsA-26A.13CPU214ACPowerSupply,24VACInputs,ACOutputsA-28A.14CPU214ACPowerSupply,ACInputs,RelayOutputsA-30A.15CPU215DCPowerSupply,DCInputs,DCOutputsA-32A.16CPU215ACPowerSupply,DCInputs,RelayOutputsA-34A.17CPU216DCPowerSupply,DCInputs,DCOutputsA-36A.18CPU216ACPowerSupply,DCInputs,RelayOutputsA-38A.19EM221DigitalInput8x24VDCA-40A.20EM221DigitalInput8x120VACA-41A.21EM221DigitalSourcingInput8x24VDCA-42A.22EM221DigitalInput8x24VACA-43A.23EM222DigitalOutput8x24VDCA-44A.24EM222DigitalOutput8xRelayA-45A.25EM222DigitalOutput8x120/230VACA-46A.26EM223DigitalCombination4x24VDCInput/4x24VDCOutputA-48A.27EM223DigitalCombination8x24VDCInput/8x24VDCOutputA-50A.28EM223DigitalCombination16x24VDCInput/16x24VDCOutputA-52A.29EM223DigitalCombination4x24VDCInput/4xRelayOutputA-54AA-2S7-200ProgrammableControllerSystemManualC79000-G7076-C230-02SectionPageDescriptionA.30EM223DigitalCombination4x120VACInput/4x120to230VACOutputA-55A.31EM223DigitalCombination8x24VDCInput/8xRelayOutputA-56A.32EM223DigitalCombination16x24VDCInput/16xRelayOutputA-58A.33EM231AnalogInputAI3x12BitsA-60A.34EM232AnalogOutputAQ2x12BitsA-66A.35EM235AnalogCombinationAI3/AQ1x12BitsA-69A.36MemoryCartridge8Kx8A-78A.37MemoryCartridge16Kx8A-79A.38BatteryCartridgeA-80A.39I/OExpansionCableA-81A.40PC/PPICableA-82A.41CPU212DCInputSimulatorA-84A.42CPU214DCInputSimulatorA-85A.43CPU215/216DCInputSimulatorA-86S7-200DataSheetsA-3S7-200ProgrammableControllerSystemManualC79000-G7076-C230-02A.1GeneralTechnicalSpecificationsNationalandInternationalStandardsThenationalandinternationalstandardslistedbelowwereusedtodetermineappropriateperformancespecificationsandtestingfortheS7-200familyofproducts.TableA-1definesthespecificadherencetothesestandards.�UnderwritersLaboratories,Inc.:UL508Listed(IndustrialControlEquipment)�CanadianStandardsAssociation:CSAC22.2Number142Certified(ProcessControlEquipment)�FactoryMutualResearch:FMClassI,Division2,GroupsA,B,C,&DHazardousLocations,T4A�VDE0160:Electronicequipmentforuseinelectricalpowerinstallations�EuropeanCommunity(CE)LowVoltageDirective73/23/EECEN61131-2:Programmablecontrollers-Equipmentrequirements�EuropeanCommunity(CE)EMCDirective89/336/EECElectromagneticemissionstandards:EN50081-1:residential,commercial,andlightindustryEN50081-2:industrialenvironmentElectromagneticimmunitystandards:EN50082-2:industrialenvironmentS7-200DataSheetsA-4S7-200ProgrammableControllerSystemManualC79000-G7076-C230-02TechnicalSpecificationsTheS7-200CPUsandallS7-200expansionmodulesconformtothetechnicalspecificationslistedinTableA-1.TableA-1TechnicalSpecificationsfortheS7-200FamilyEnvironmentalConditions—TransportandStorageIEC68-2-2,TestBb,DryheatandIEC68-2...
