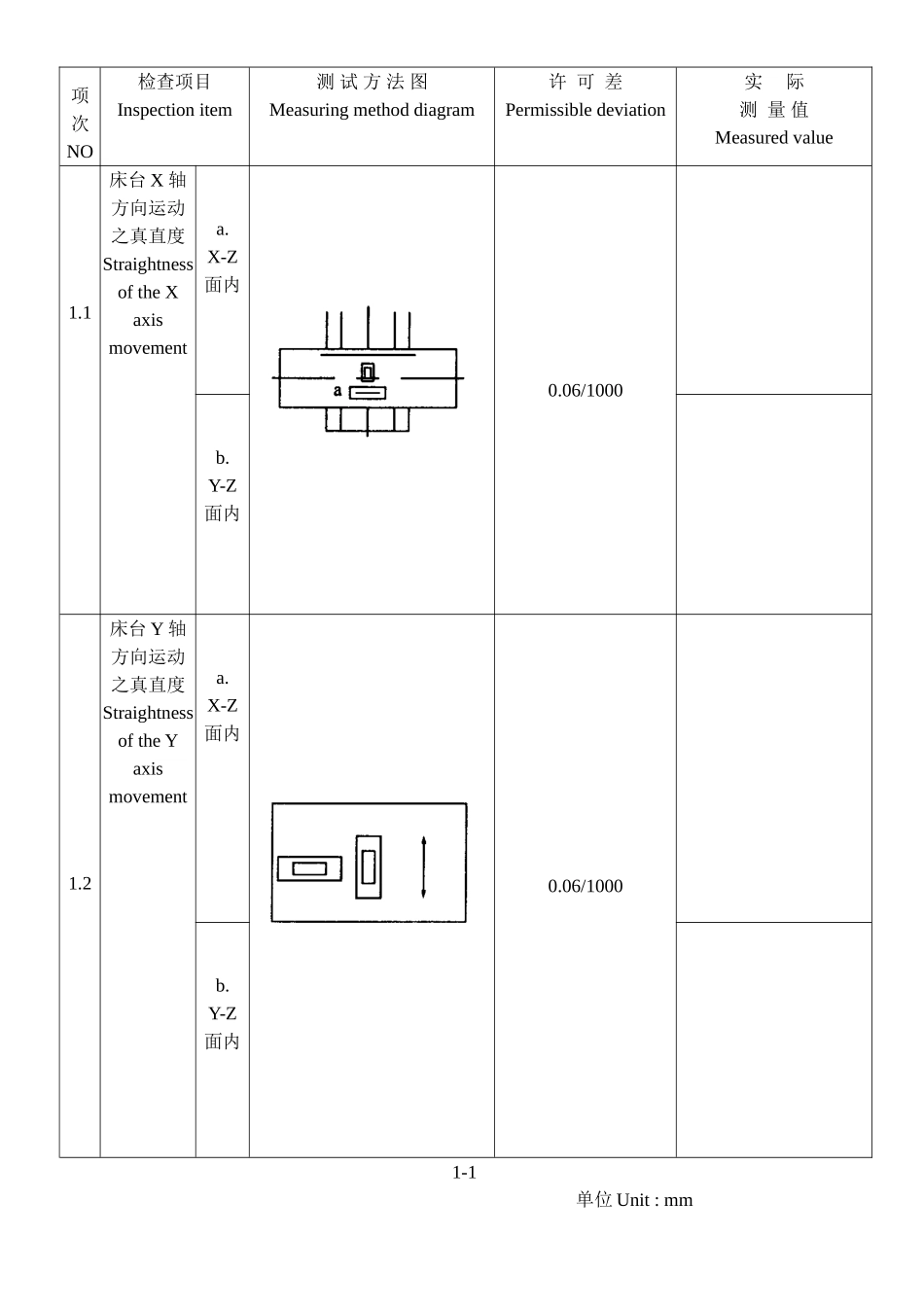

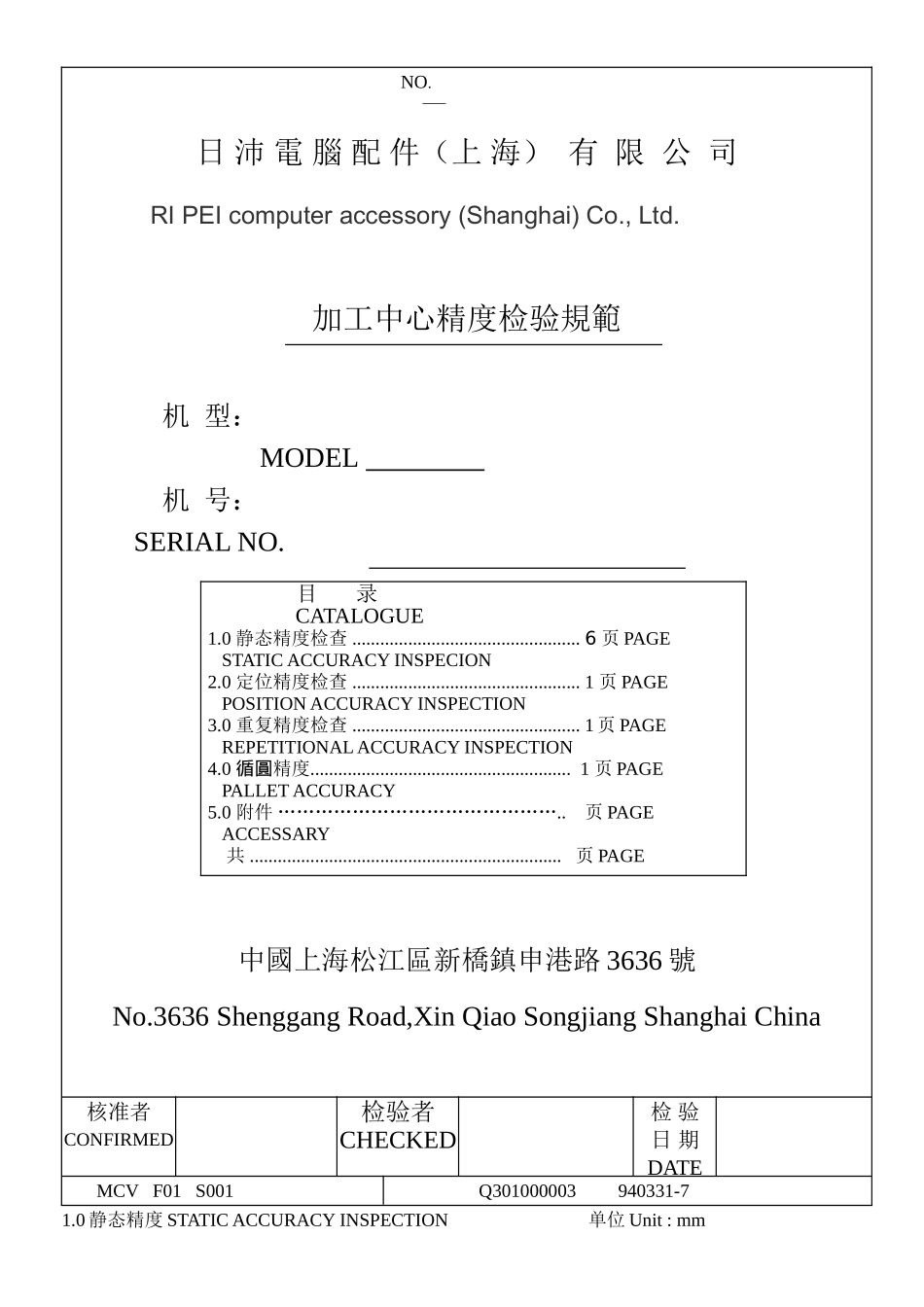

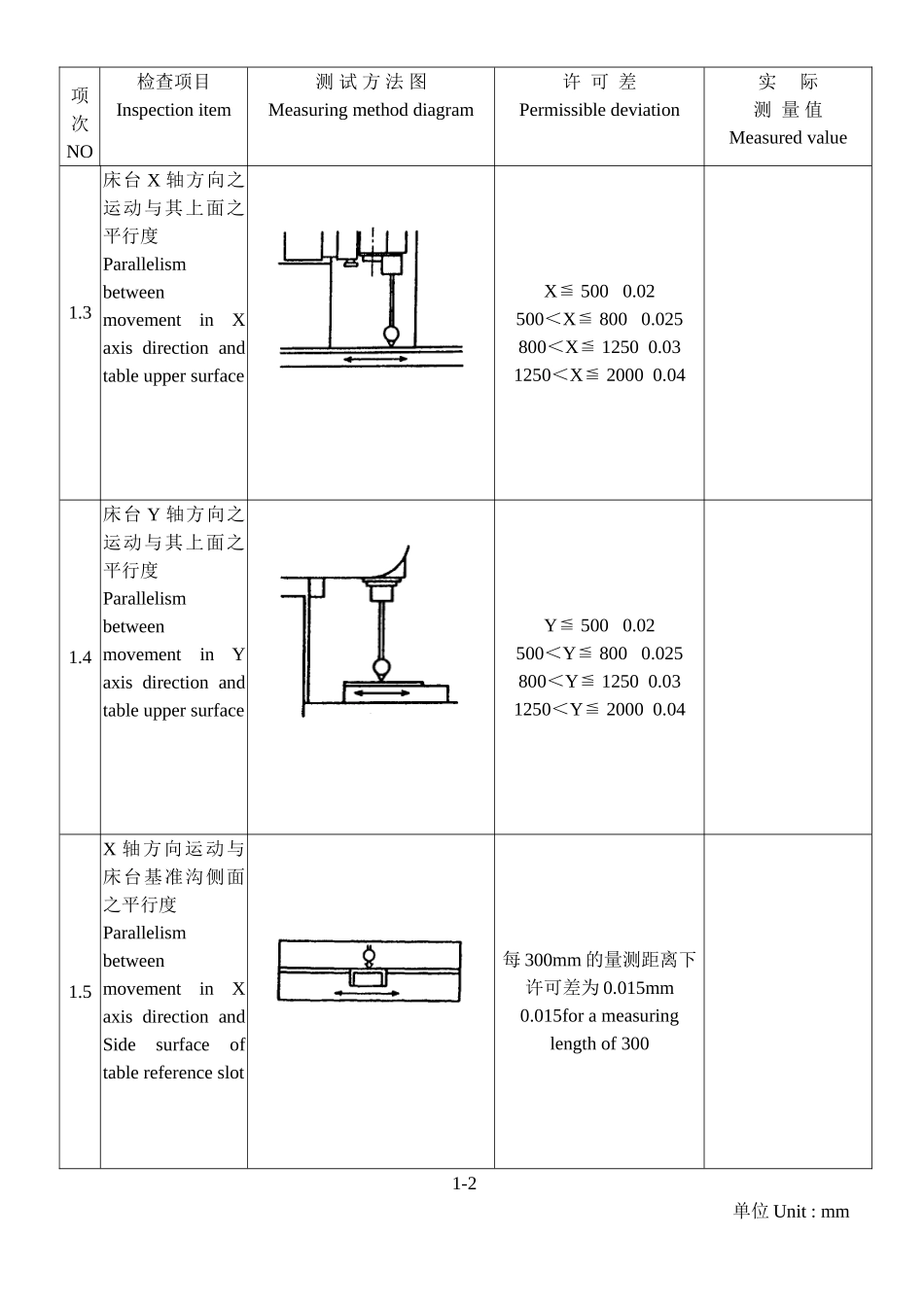

NO.¯¯¯日沛電腦配件（上海）有限公司RIPEIcomputeraccessory(Shanghai)Co.,Ltd.加工中心精度检验規範机型：MODEL机号：SERIALNO.中國上海松江區新橋鎮申港路3636號No.3636ShenggangRoad,XinQiaoSongjiangShanghaiChina核准者CONFIRMED检验者CHECKED检验日期DATEMCVF01S001Q301000003940331-71.0静态精度STATICACCURACYINSPECTION单位Unit:mm目录CATALOGUE1.0静态精度检查.................................................6页PAGESTATICACCURACYINSPECION2.0定位精度检查.................................................1页PAGEPOSITIONACCURACYINSPECTION3.0重复精度检查.................................................1页PAGEREPETITIONALACCURACYINSPECTION4.0循圓精度........................................................1页PAGEPALLETACCURACY5.0附件………………………………………..页PAGEACCESSARY共...................................................................页PAGE项次NO检查项目Inspectionitem测试方法图Measuringmethoddiagram许可差Permissibledeviation实际测量值Measuredvalue1.1床台X轴方向运动之真直度StraightnessoftheXaxismovementa.X-Z面内0.06/1000b.Y-Z面内1.2床台Y轴方向运动之真直度StraightnessoftheYaxismovementa.X-Z面内0.06/1000b.Y-Z面内1-1单位Unit:mm项次NO检查项目Inspectionitem测试方法图Measuringmethoddiagram许可差Permissibledeviation实际测量值Measuredvalue1.3床台X轴方向之运动与其上面之平行度ParallelismbetweenmovementinXaxisdirectionandtableuppersurfaceX≦5000.02500＜X≦8000.025800＜X≦12500.031250＜X≦20000.041.4床台Y轴方向之运动与其上面之平行度ParallelismbetweenmovementinYaxisdirectionandtableuppersurfaceY≦5000.02500＜Y≦8000.025800＜Y≦12500.031250＜Y≦20000.041.5X轴方向运动与床台基准沟侧面之平行度ParallelismbetweenmovementinXaxisdirectionandSidesurfaceoftablereferenceslot每300mm的量测距离下许可差为0.015mm0.015forameasuringlengthof3001-2单位Unit:mm项次NO检查项目Inspectionitem测试方法图Measuringmethoddiagram许可差Permissibledeviation实际测量值Measuredvalue1.6各轴方向相互运动之直角度PerpendicularityBetweenmovementinXaxisdirectionandYaxisdirectionandZaxisdirectiona.X-Y轴Place0.012/300b.X-Z轴Place0.012/300c.Y-Z轴Place0.012/3001.7主轴中心线与床台面之直角度Perpendicularitybetweencenterlineofmainspindleandtablesurface.旋径每300Per3000.0151-3单位Unit:mm项次NO检查项目Inspectionitem测试方法图Measuringmethoddiagram许可差Permissibledeviation实际测量值Measuredvalue1.8主轴孔内面之偏摆Runoutofspindletaperhole固定端Atspindlesideendoftestbar0.005固定端300处At300position0.0151.9主轴轴线与Z轴轴线运动间的平行度ParallelismbetweenthespindleaxisandtheZ-axismotiona:0.015/300b:0.015/3001.10主轴在Z轴方向之移(松)动量MovementofmainspindleinZaxisdirection0.0051.11主轴端面之偏摆Runoutofmainspindleoutersurface0.011-41.12主軸外面之偏擺Runoutofmainspindleoutersurface0.01mm1.13床檯X軸方向運動之直線度StraightnessoftablemovementintheXaxis.1.Applyafixedindicatortothestraightedgeasthefigureshown.2.Adjusttogetreadingatbothendsofthestraightedge.2.Movethetable300mminX-axisdirection.3.Recordthelargestvaluedifferenceasthemeasurementvalue.0.01/3001.14床檯Y軸方向運動之直線度StraightnessoftablemovementintheYaxis1.Applyafixedindicatortothestraightedgeasthefigureshown.2.Adjusttogetreadingatbothendsofthestraightedge.2.Movethetable300mminX-axisdirection.3.Recordthelargestvaluedifferenceasthemeasurementvalue.0.01/3001-51.15旋轉檯旋轉偏擺Tablerunout(XY)0.015mm/3001.16旋轉檯旋轉偏擺Tablerunout(Z)0.005mm1.17車刀角度換刀後重複定位精度Repeatabilityoftoolangl...
