人体支撑式吸尘器翻倒测试规范VIP免费

人体支撑式吸尘器翻倒测试规范_第1页
1/6
人体支撑式吸尘器翻倒测试规范_第2页
2/6
人体支撑式吸尘器翻倒测试规范_第3页
3/6

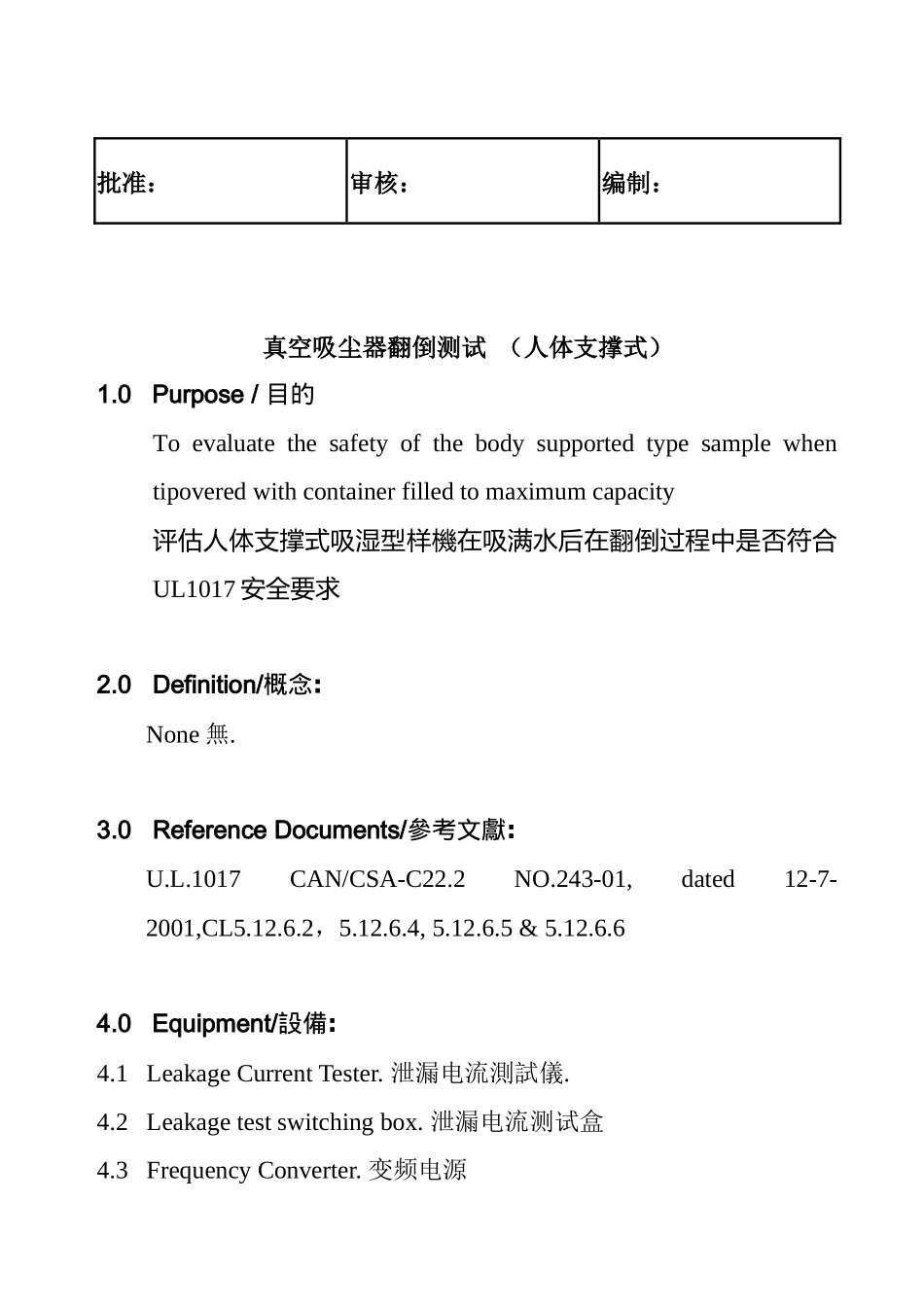

真空吸尘器翻倒测试 (人体支撑式)修订日期修订单号修订内容摘要页次版次修订审核批准2011/03/30/系统文件新制定2A/0///批准:审核:编制:真空吸尘器翻倒测试 (人体支撑式)1.0 Purpose / 目的To evaluate the safety of the body supported type sample when tipovered with container filled to maximum capacity评估人体支撑式吸湿型样機在吸满水后在翻倒过程中是否符合UL1017 安全要求2.0 Definition/概念:None 無.3.0 Reference Documents/參考文獻:U.L.1017 CAN/CSA-C22.2 NO.243-01, dated 12-7-2001,CL5.12.6.2,5.12.6.4, 5.12.6.5 & 5.12.6.64.0 Equipment/設備:4.1 Leakage Current Tester. 泄漏电流測試儀.4.2 Leakage test switching box. 泄漏电流测试盒4.3 Frequency Converter. 变频电源4.4 Stop watch. 秒表4.5 Withstanding Voltage Tester 耐压测试仪4.6 Test vessel 测试容器5.0 General Instructions/說明:5.1 Tests may be conducted at any ambient temperature within a range of 10-40 (50-100).℃℉ 測試可在 10~40(50~100)℃℉ 之內的環境溫度下進行.5.2 Unless otherwise noted, all tests are to be conducted with appliance connected to a 120VAC, 60Hz power source. 除非另外標注,否則所有样機都将连接在 120V/60Hz 電源下进行測試.5.3 All equipment used must be calibrated on an annual basis. Calibration stickers with last calibration and calibration due date must be affixed to each instrument.. 使用的所有設備都必須以一年為周期進行調校.載有最後調校日期和調校周的調校粘紙必須被粘固在每個儀表上.5.4 In this test, record leakage current according to the method noted in TAREGW1004. 本测试中,按照 TAREGW1004 所述记录测试前,中,后的泄漏电流.5.5 For this test, the sample and vessel must be isolated from ground. 测试过程中,测试容器要与地绝缘.6.0 Procedure/步驟:6.1 Obtain a representative sample of the appliance to be tested. 準備一台有代表性的樣機用於測試6.2 Obtain Test Results Form TTR1039 and completely fill in the information describing the sample and...
