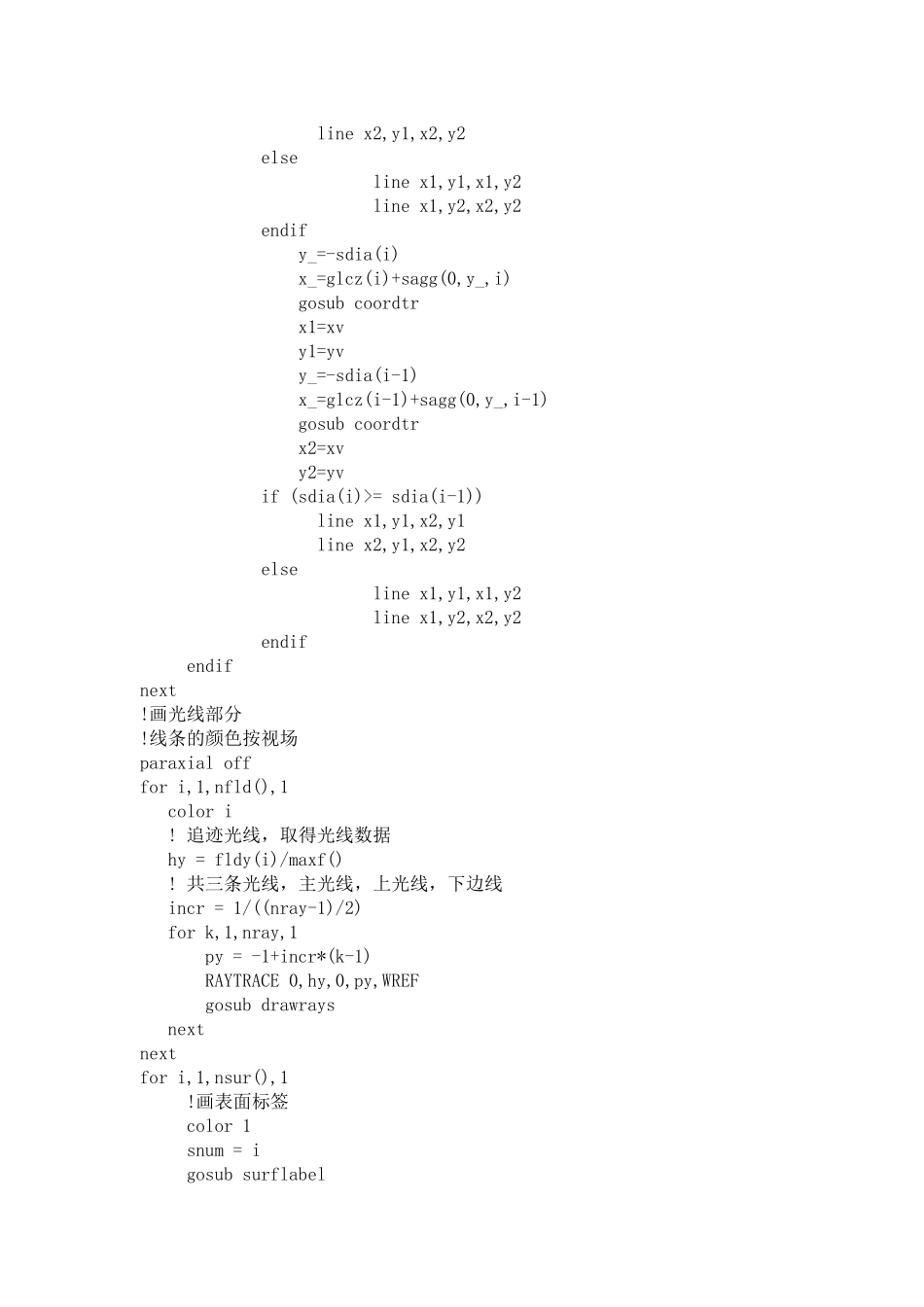

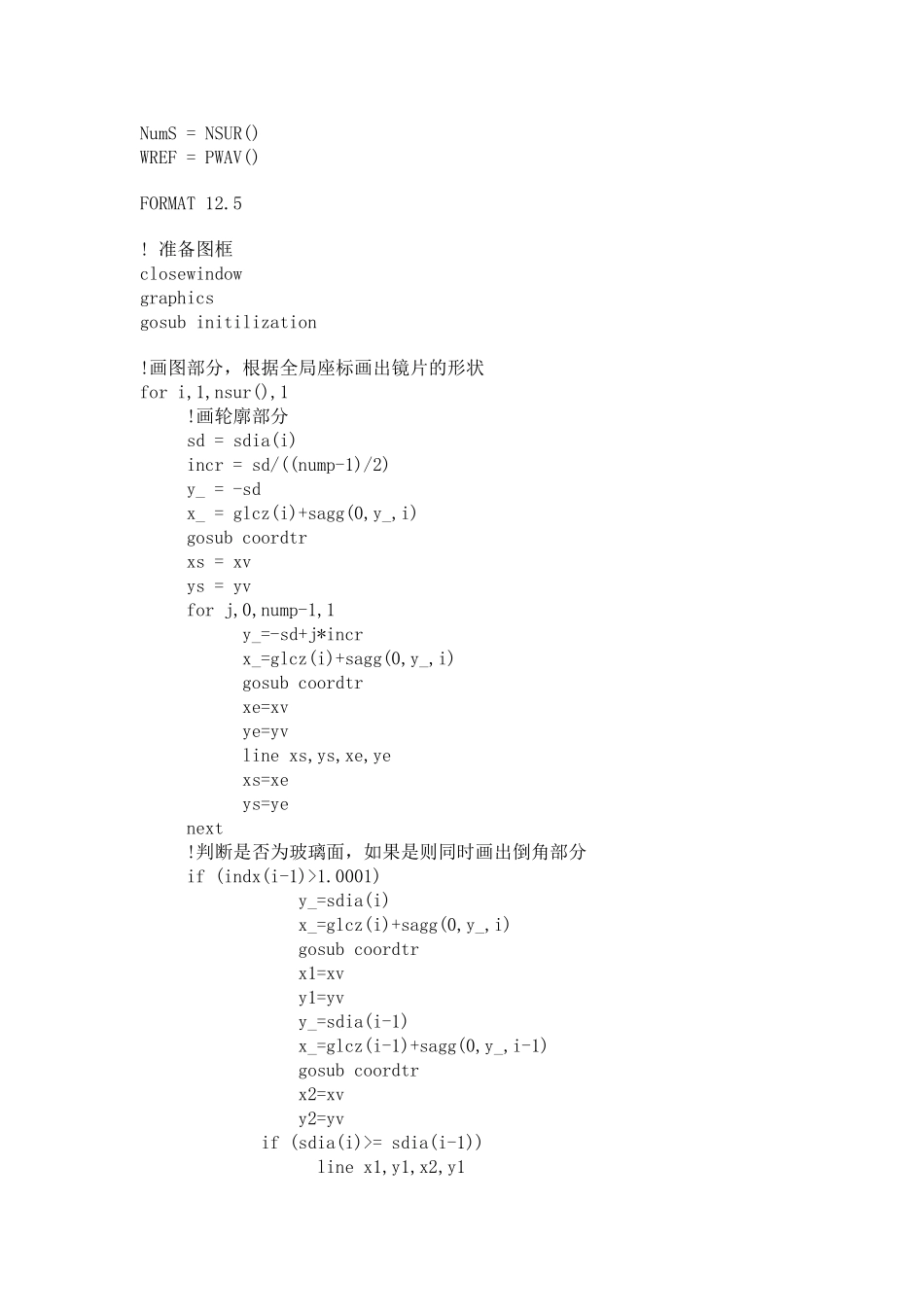

用 ZEMAX 的宏绘图语言在 ZEMAX 的 2D LAYOUT 中增加序号显示功能；ZEMAX 的宏绘图功能还是比较强的。 效果图如下：源程序也分享如下： ! Purpose: layout the system, draw the lens by Y-Z Plane, add the surface/elements number to the graph! It just surpport the sysmetric system, other system maybe not correct!! Author doffery 2010-3-27 numP = 51nray = 11 NumS = NSUR()WREF = PWAV() FORMAT 12.5 ! 准备图框closewindowgraphicsgosub initilization !画图部分，根据全局座标画出镜片的形状for i,1,nsur(),1 !画轮廓部分 sd = sdia(i) incr = sd/((nump-1)/2) y_ = -sd x_ = glcz(i)+sagg(0,y_,i) gosub coordtr xs = xv ys = yv for j,0,nump-1,1 y_=-sd+j*incr x_=glcz(i)+sagg(0,y_,i) gosub coordtr xe=xv ye=yv line xs,ys,xe,ye xs=xe ys=ye next !判断是否为玻璃面，如果是则同时画出倒角部分 if (indx(i-1)>1.0001) y_=sdia(i) x_=glcz(i)+sagg(0,y_,i) gosub coordtr x1=xv y1=yv y_=sdia(i-1) x_=glcz(i-1)+sagg(0,y_,i-1) gosub coordtr x2=xv y2=yv if (sdia(i)>= sdia(i-1)) line x1,y1,x2,y1 line x2,y1,x2,y2 else line x1,y1,x1,y2 line x1,y2,x2,y2 endif y_=-sdia(i) x_=glcz(i)+sagg(0,y_,i) gosub coordtr x1=xv y1=yv y_=-sdia(i-1) x_=glcz(i-1)+sagg(0,y_,i-1) gosub coordtr x2=xv y2=yv if (sdia(i)>= sdia(i-1)) line x1,y1,x2,y1 line x2,y1,x2,y2 else line x1,y1,x1,y2 line x1,y2,x2,y2 endif endifnext!画光线部分!线条的颜色按视场paraxial offfor i,1,nfld(),1 color i ! 追迹光线，取得光线数据 hy = fldy(i)/maxf() ! 共三条光线，主光线，上光线，下边线 incr = 1/((nray-1)/2) for k,1,nray,1 py = -1+incr*(k-1) RAYTRACE 0,hy,0,py,WREF gosub drawrays next nextfor i,1,nsur(),1 !画表面标签 color 1 snum = i gosub surflabelnext! TOTR 文字SETTEXTSIZE 70,40getsystemdata 1effl=vec1(7)wfno=vec1(10)pmag=vec1(16)pimh=vec1(15)totr=vec1(18)expp=vec1(14)enpp=vec1(12)format 7.3color 0settextsizegtext 0.02*xwidth,0.905*ywidth,0,"TOTAL AXIAL LENGTH:"+$str(totr)+" MM"g...
