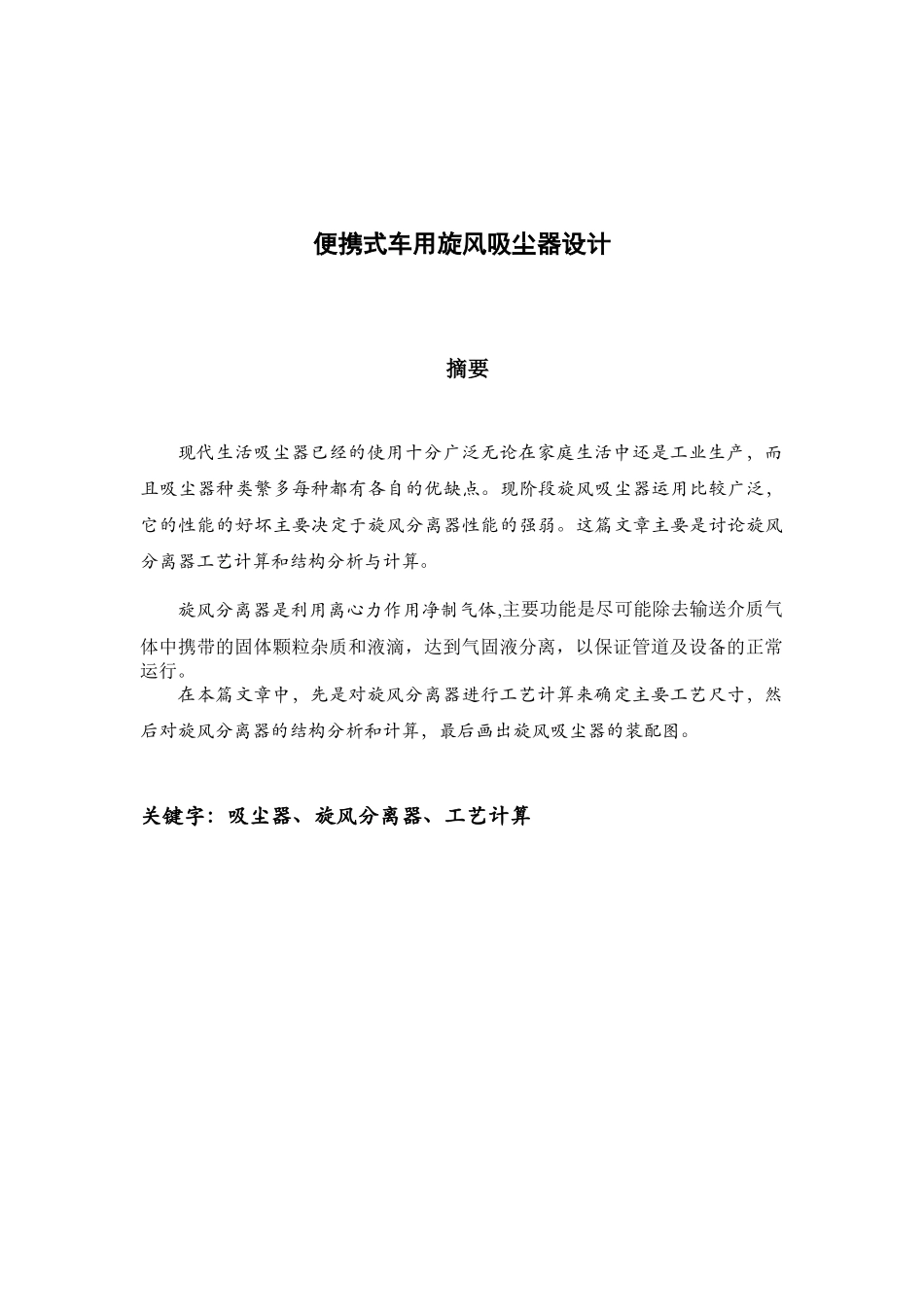

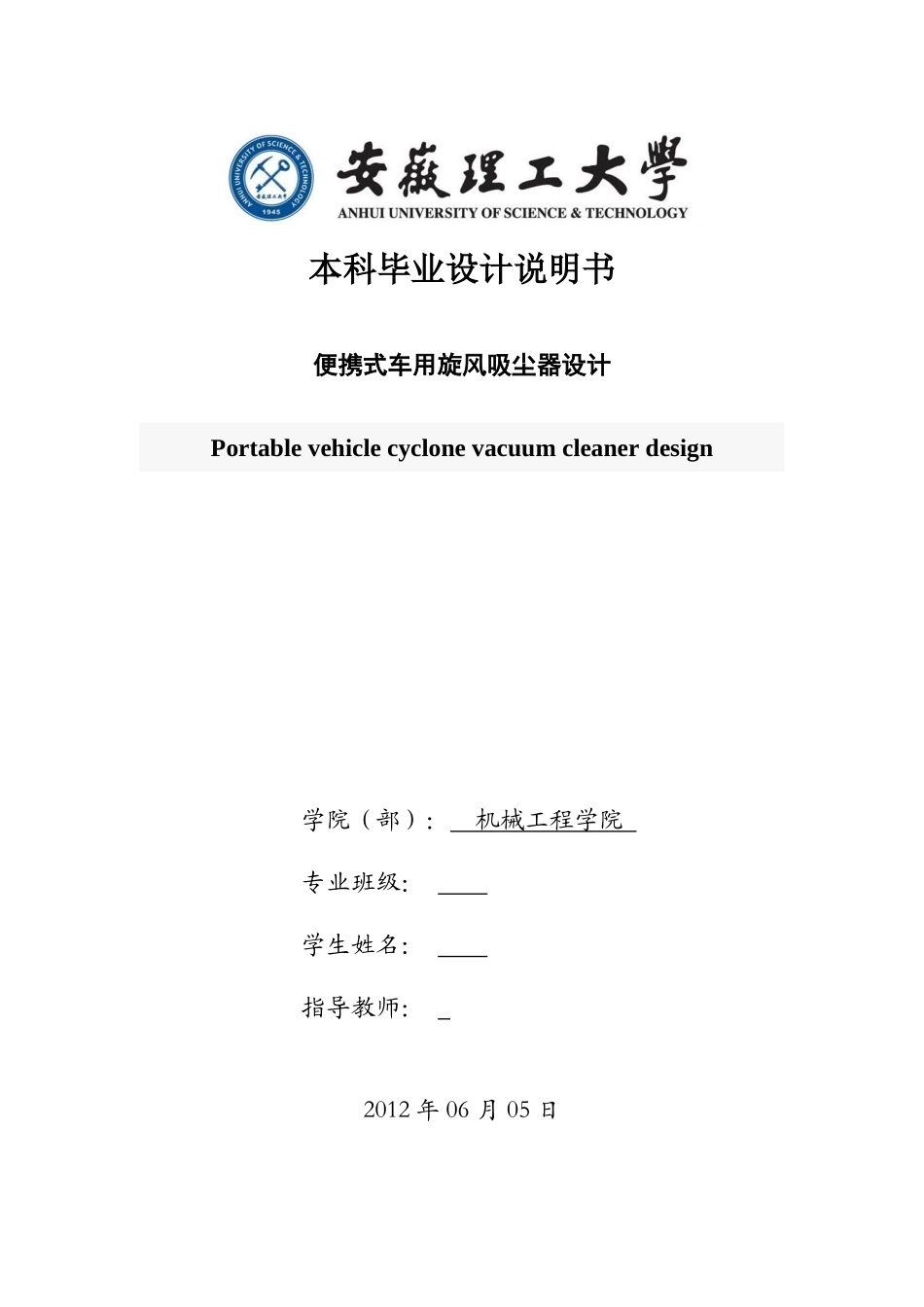

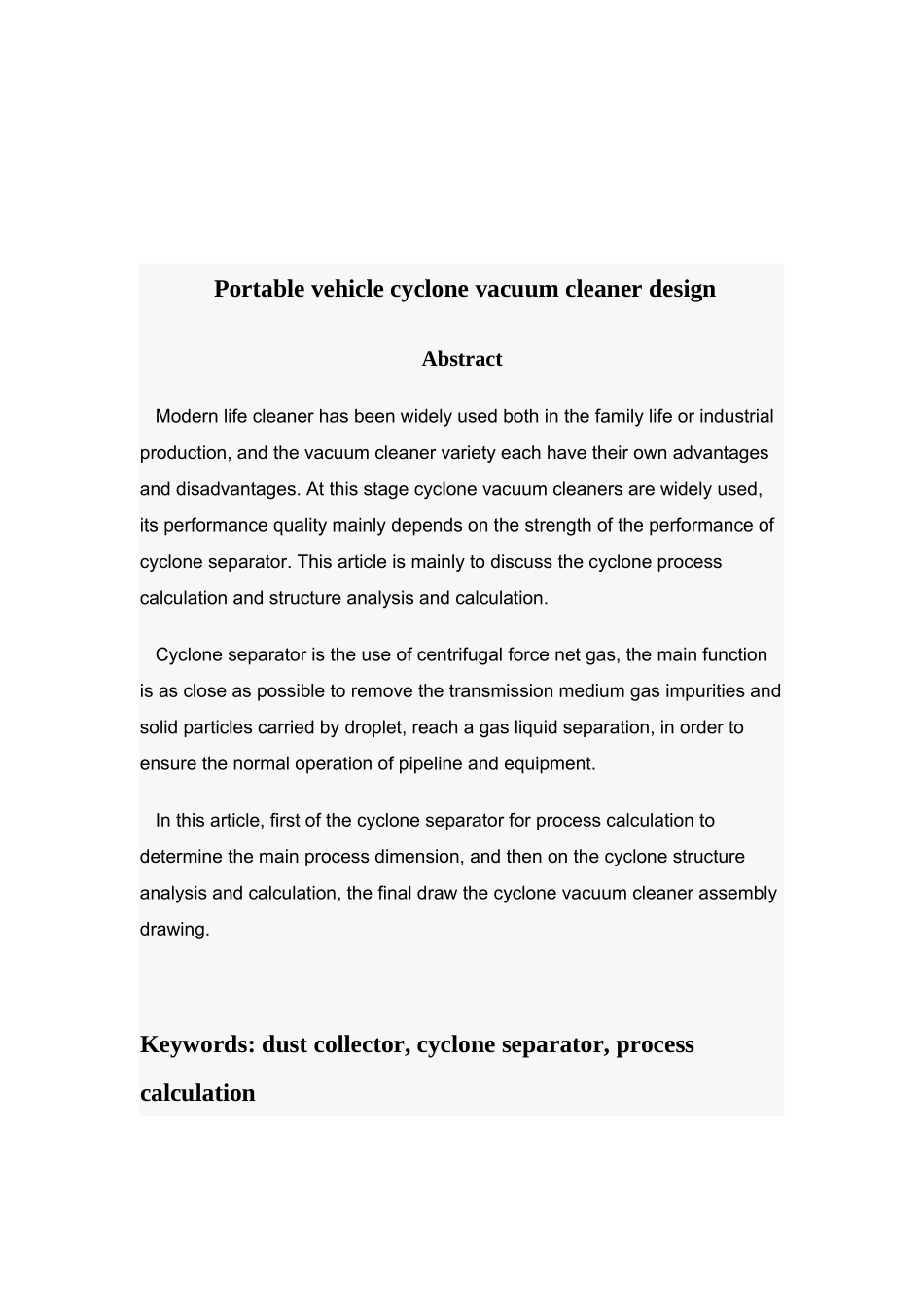

本科毕业设计说明书便携式车用旋风吸尘器设计Portable vehicle cyclone vacuum cleaner design学院（部）： 机械工程学院 专业班级： 学生姓名： 指导教师： 2012 年 06 月 05 日便携式车用旋风吸尘器设计 摘要现代生活吸尘器已经的使用十分广泛无论在家庭生活中还是工业生产，而且吸尘器种类繁多每种都有各自的优缺点。现阶段旋风吸尘器运用比较广泛，它的性能的好坏主要决定于旋风分离器性能的强弱。这篇文章主要是讨论旋风分离器工艺计算和结构分析与计算。旋风分离器是利用离心力作用净制气体,主要功能是尽可能除去输送介质气体中携带的固体颗粒杂质和液滴，达到气固液分离，以保证管道及设备的正常运行。在本篇文章中，先是对旋风分离器进行工艺计算来确定主要工艺尺寸，然后对旋风分离器的结构分析和计算，最后画出旋风吸尘器的装配图。关键字：吸尘器、旋风分离器、工艺计算 Portable vehicle cyclone vacuum cleaner designAbstract Modern life cleaner has been widely used both in the family life or industrial production, and the vacuum cleaner variety each have their own advantages and disadvantages. At this stage cyclone vacuum cleaners are widely used, its performance quality mainly depends on the strength of the performance of cyclone separator. This article is mainly to discuss the cyclone process calculation and structure analysis and calculation. Cyclone separator is the use of centrifugal force net gas, the main function is as close as possible to remove the transmission medium gas impurities and solid particles carried by droplet, reach a gas liquid separation, in order to ensure the normal operation of pipeline and equipment. In this article, first of the cyclone separator for process calculation to determine the main process dimension, and then on the cyclone structure analysis and calculation, the final draw the cyclone vacuum cleaner assembly drawing.Keywords: dust collector, cyclone separator, process calculation引言传统吸尘器 传统吸尘器...
