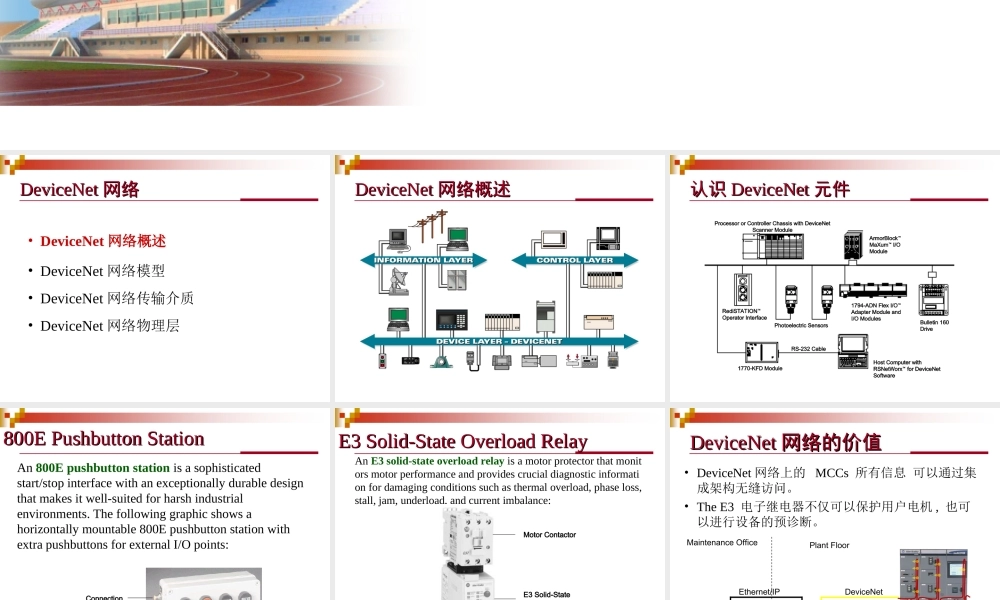

DeviceNet 网络技术知识培训课件全有文档 DeviceNetDeviceNet 网络网络• DeviceNet 网络概述• DeviceNet 网络模型• DeviceNet 网络传输介质• DeviceNet 网络物理层 DeviceNetDeviceNet 网络概述网络概述 认识认识 DeviceNetDeviceNet 元件元件Processor or Controller Chassis with DeviceNet Scanner ModuleArmorBlock™MaXum™ I/OModuleRediSTATION™Operator InterfacePhotoelectric Sensors1794-ADN Flex I/O™Adapter Module andI/O ModulesBulletin 160 Drive1770-KFD ModuleRS-232 CableHost Computer withRSNetWorx™ for DeviceNetSoftware 800E Pushbutton Station800E Pushbutton StationAn 800E pushbutton station is a sophisticated start/stop interface with an exceptionally durable design that makes it well-suited for harsh industrial environments. The following graphic shows a horizontally mountable 800E pushbutton station with extra pushbuttons for external I/O points:Connectionto DeviceNetNetworkPushbuttons E3 Solid-State Overload RelayE3 Solid-State Overload RelayAn E3 solid-state overload relay is a motor protector that monitors motor performance and provides crucial diagnostic information for damaging conditions such as thermal overload, phase loss, stall, jam, underload, and current imbalance:Motor ContactorE3 Solid-StateOverload RelayConnection to DeviceNetNetwork DeviceNetDeviceNet 网络的价值网络的价值• DeviceNet 网络上的 MCCs 所有信息 可以通过集成架构无缝访问。• The E3 电子继电器不仅可以保护用户电机 , 也可以进行设备的预诊断。DeviceNetEthernet/IPMaintenance OfficePlant Floor Bulletin 100 DSABulletin 100 DSAEasily mountable inside a small space, a Bulletin 100 DSA allows up to four discrete inputs and two discrete outputs to be connected to the DeviceNet network. A Bulletin 100 DSA can be used as a motor starter or for general purpose I/O:Connection to DeviceNetNetworkFront ofModule DeviceNetDevi...
