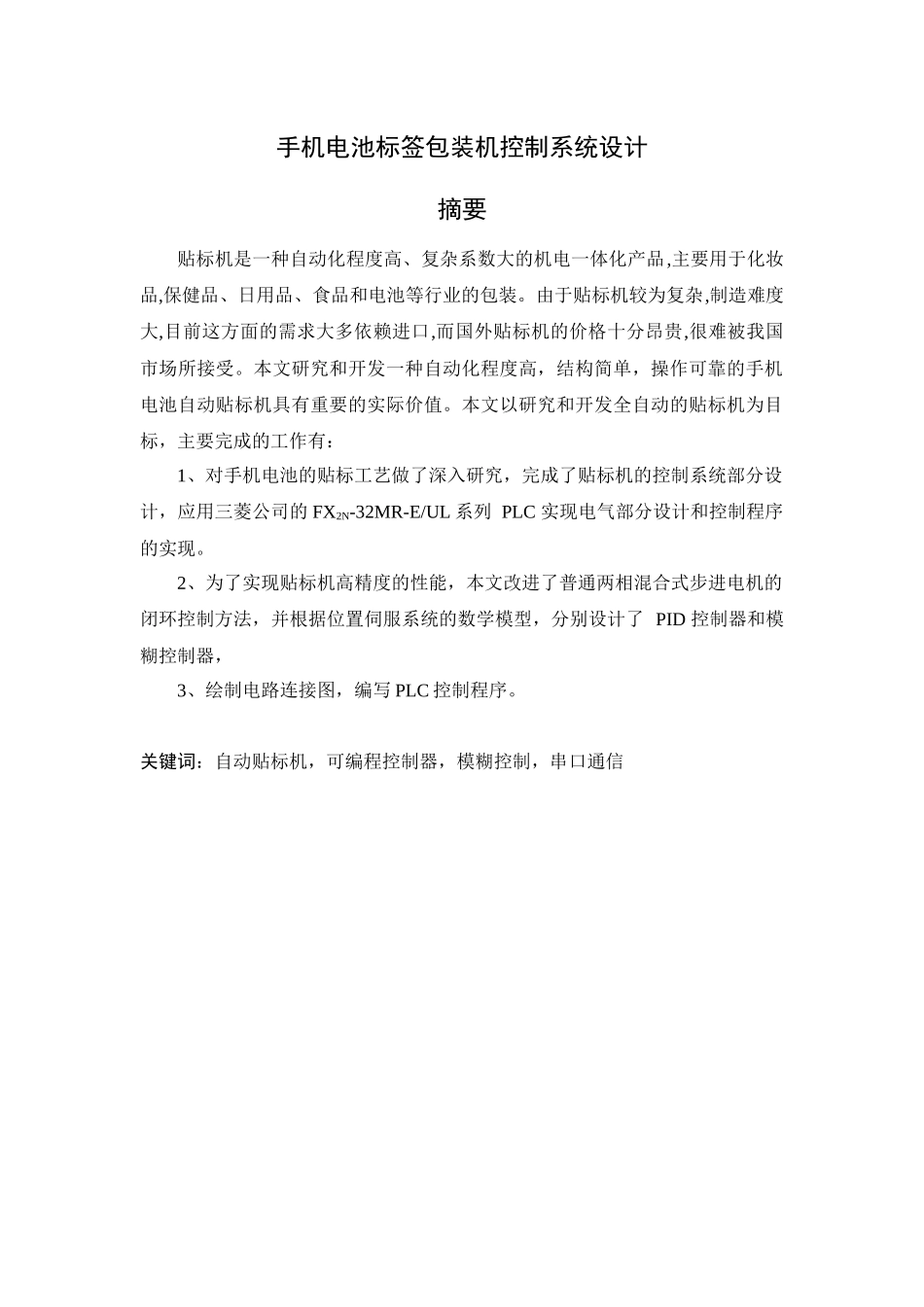

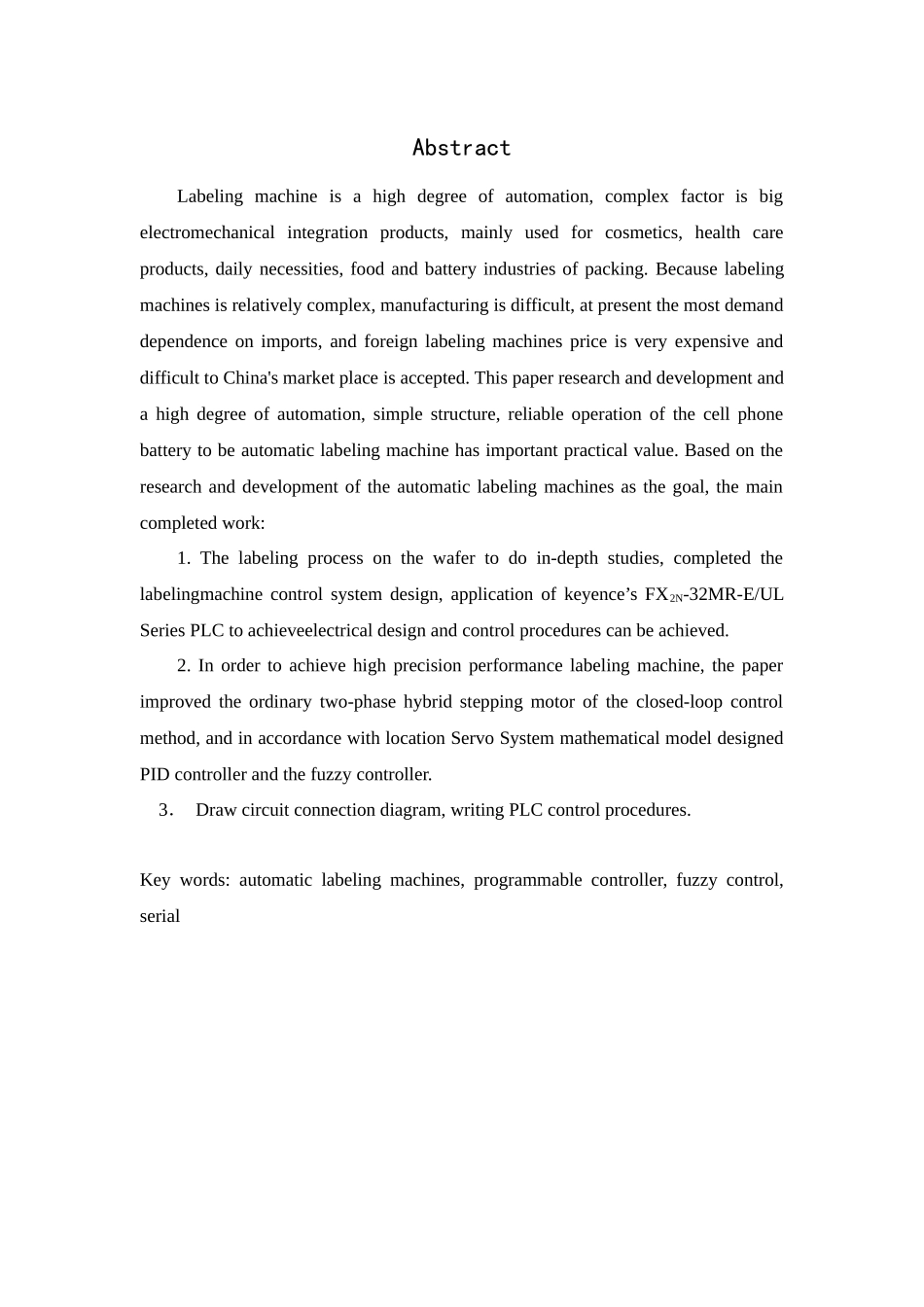

手机电池标签包装机控制系统设计摘要贴标机是一种自动化程度高、复杂系数大的机电一体化产品,主要用于化妆品,保健品、日用品、食品和电池等行业的包装。由于贴标机较为复杂,制造难度大,目前这方面的需求大多依赖进口,而国外贴标机的价格十分昂贵,很难被我国市场所接受。本文研究和开发一种自动化程度高,结构简单,操作可靠的手机电池自动贴标机具有重要的实际价值。本文以研究和开发全自动的贴标机为目标,主要完成的工作有:1、对手机电池的贴标工艺做了深入研究,完成了贴标机的控制系统部分设计,应用三菱公司的 FX2N-32MR-E/UL 系列 PLC 实现电气部分设计和控制程序的实现。2、为了实现贴标机高精度的性能,本文改进了普通两相混合式步进电机的闭环控制方法,并根据位置伺服系统的数学模型,分别设计了 PID 控制器和模糊控制器,3、绘制电路连接图,编写 PLC 控制程序。关键词:自动贴标机,可编程控制器,模糊控制,串口通信AbstractLabeling machine is a high degree of automation, complex factor is big electromechanical integration products, mainly used for cosmetics, health care products, daily necessities, food and battery industries of packing. Because labeling machines is relatively complex, manufacturing is difficult, at present the most demand dependence on imports, and foreign labeling machines price is very expensive and difficult to China's market place is accepted. This paper research and development and a high degree of automation, simple structure, reliable operation of the cell phone battery to be automatic labeling machine has important practical value. Based on the research and development of the automatic labeling machines as the goal, the main completed work:1. The labeling process on the wafer to do in-depth studies, completed the labelingmachine control system design, application of keyence’s FX2N-32MR-E/UL Series PLC to achieveelectrical design and control procedures can be achieved.2. In order to achieve high precision performance labeling machine, t...
