注塑锥齿轮三维分析及模具设计VIP免费

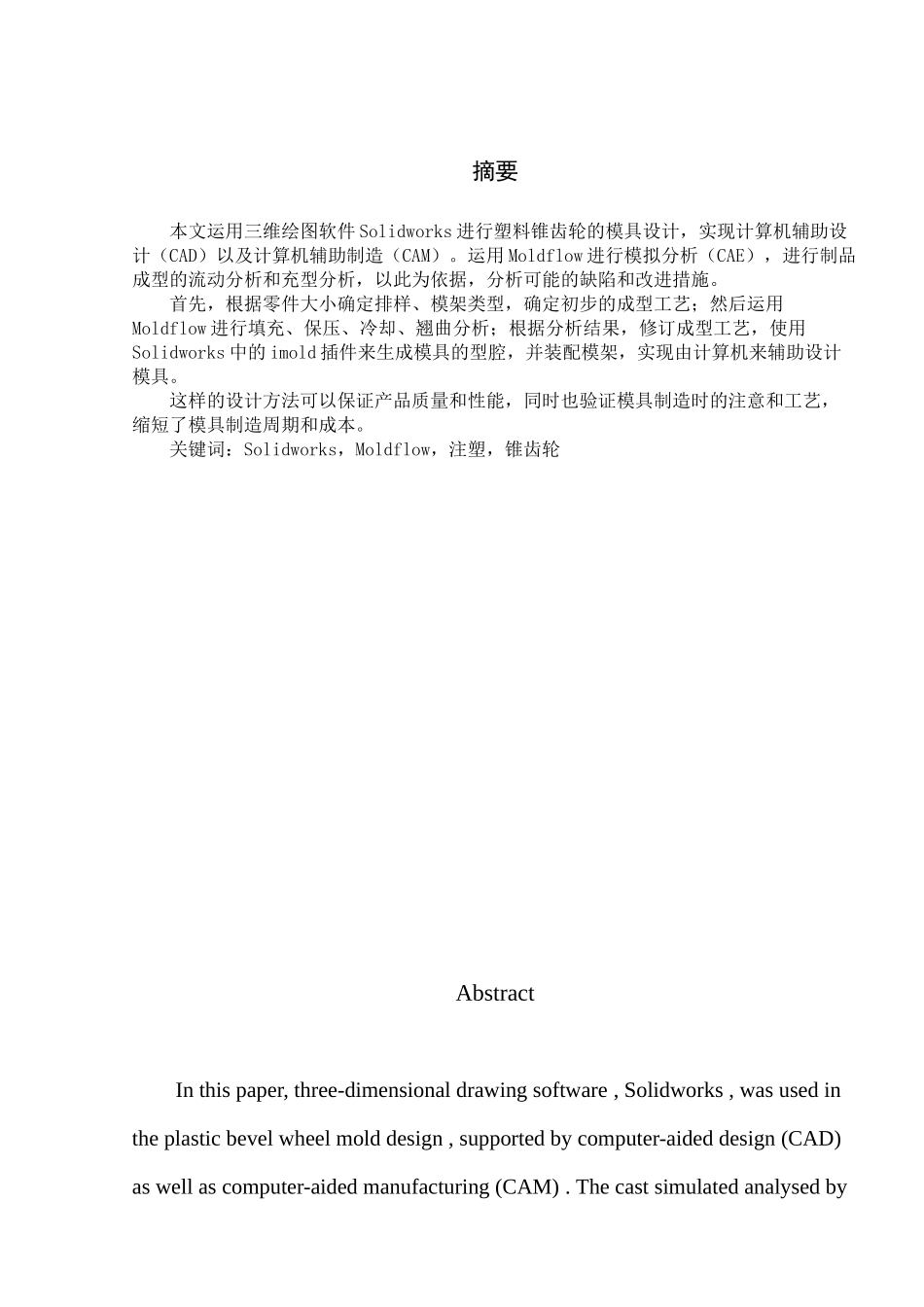

摘要本文运用三维绘图软件 Solidworks 进行塑料锥齿轮的模具设计，实现计算机辅助设计（CAD）以及计算机辅助制造（CAM）。运用 Moldflow 进行模拟分析（CAE），进行制品成型的流动分析和充型分析，以此为依据，分析可能的缺陷和改进措施。首先，根据零件大小确定排样、模架类型，确定初步的成型工艺；然后运用Moldflow 进行填充、保压、冷却、翘曲分析；根据分析结果，修订成型工艺，使用Solidworks 中的 imold 插件来生成模具的型腔，并装配模架，实现由计算机来辅助设计模具。这样的设计方法可以保证产品质量和性能，同时也验证模具制造时的注意和工艺，缩短了模具制造周期和成本。关键词：Solidworks，Moldflow，注塑，锥齿轮Abstract In this paper, three-dimensional drawing software , Solidworks , was used in the plastic bevel wheel mold design , supported by computer-aided design (CAD) as well as computer-aided manufacturing (CAM) . The cast simulated analysed by Moldflow (CAE) , to make out the ability of flow and molding , and this analysis is the basis of the possible defects . First , determine the layoutmold type , based on part size , and the initial molding process . Then using Moldflow to carry out filling, packing, cooling, warpage analysis . Based on the results, revised molding process, and use the imold plug-ins in Solidworks to generate the mold cavity ,then assemble with the carriers . So , the design was aided by the computer . In this way we can improve measures to ensure product quality and performance , also , verify the point and processes of the mold , to reduce the time and cost of the mould manufacturing . Keywords:. Solidworks , Moldflow , plastic cast , bevel wheel前言随着人类社会的进步，材料的使用也发生着变化。从石器时代开始，人类就在寻找更新、更好的材料，制作不同的器物和工具。到目前为止，人类所使用的材料可以分为四大类：木材、水泥、钢铁和塑料[1]。塑料，作为高分子聚合物，它的性能和应用可以说是无穷无尽，同时，塑...
