超快恢复二极管(参数表,封装)VIP免费

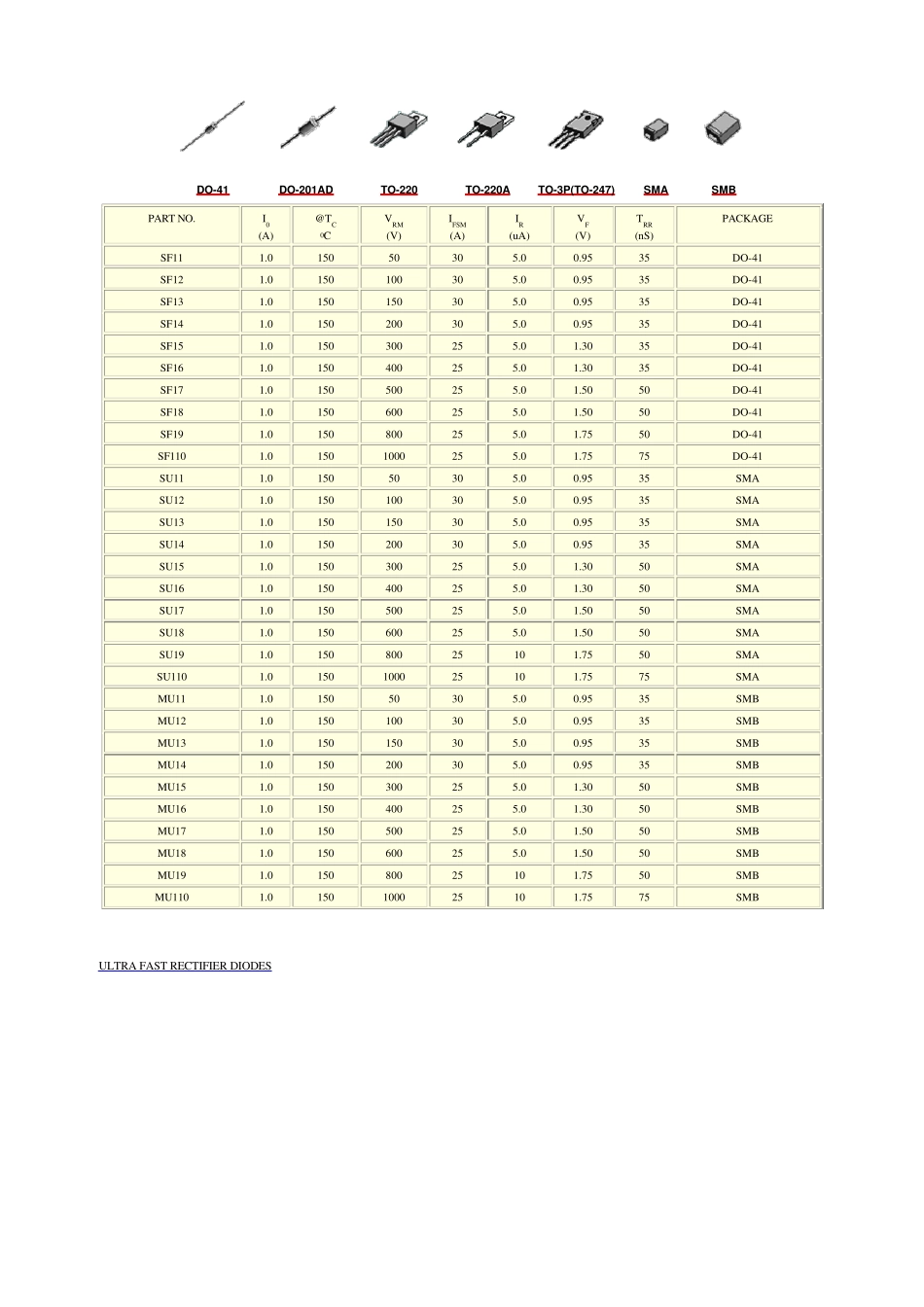

DO-41 DO-201AD TO-220 TO-220A TO-3P(TO-247) SMA SMB PART NO. I0 (A) @TC 0C VRM (V) IFSM (A) IR (uA) VF (V) TRR (nS) PACKAGE SF11 1.0 150 50 30 5.0 0.95 35 DO-41 SF12 1.0 150 100 30 5.0 0.95 35 DO-41 SF13 1.0 150 150 30 5.0 0.95 35 DO-41 SF14 1.0 150 200 30 5.0 0.95 35 DO-41 SF15 1.0 150 300 25 5.0 1.30 35 DO-41 SF16 1.0 150 400 25 5.0 1.30 35 DO-41 SF17 1.0 150 500 25 5.0 1.50 50 DO-41 SF18 1.0 150 600 25 5.0 1.50 50 DO-41 SF19 1.0 150 800 25 5.0 1.75 50 DO-41 SF110 1.0 150 1000 25 5.0 1.75 75 DO-41 SU11 1.0 150 50 30 5.0 0.95 35 SMA SU12 1.0 150 100 30 5.0 0.95 35 SMA SU13 1.0 150 150 30 5.0 0.95 35 SMA SU14 1.0 150 200 30 5.0 0.95 35 SMA SU15 1.0 150 300 25 5.0 1.30 50 SMA SU16 1.0 150 400 25 5.0 1.30 50 SMA SU17 1.0 150 500 25 5.0 1.50 50 SMA SU18 1.0 150 600 25 5.0 1.50 50 SMA SU19 1.0 150 800 25 10 1.75 50 SMA SU110 1.0 150 1000 25 10 1.75 75 SMA MU11 1.0 150 50 30 5.0 0.95 35 SMB MU12 1.0 150 100 30 5.0 0.95 35 SMB MU13 1.0 150 150 30 5.0 0.95 35 SMB MU14 1.0 150 200 30 5.0 0.95 35 SMB MU15 1.0 150 300 25 5.0 1.30 50 SMB MU16 1.0 150 400 25 5.0 1.30 50 SMB MU17 1.0 150 500 25 5.0 1.50 50 SMB MU18 1.0 150 600 25 5.0 1.50 50 SMB MU19 1.0 150 800 25 10 1.75 50 SMB MU110 1.0 150 1000 25 10 1.75 75 SMB ULTRA FAST RECTIFIER DIODES PART NO. I0 (A) @TC 0C VRM (V) IFSM (A) IR (uA) VF (V) TRR (nS) PACKAGE SF21 2.0 150 50 50 5.0 0.95 35 DO-41 SF22 2.0 150 100 50 5.0 0.95 35 DO-41 SF23 2.0 150 150 50 5.0 0.95 35 DO-41 SF24 2.0 150 200 50 5.0 0.95 35 DO-41 SF25 2.0 150 300 35 5.0 1.30 50 DO-41 SF26 2.0 150 400 35 5.0 1.30 50 DO-41 SF27 2.0 150 500 35 5.0 1.50 50 DO-41 SF28 2.0 150 600 35 5.0 1...
