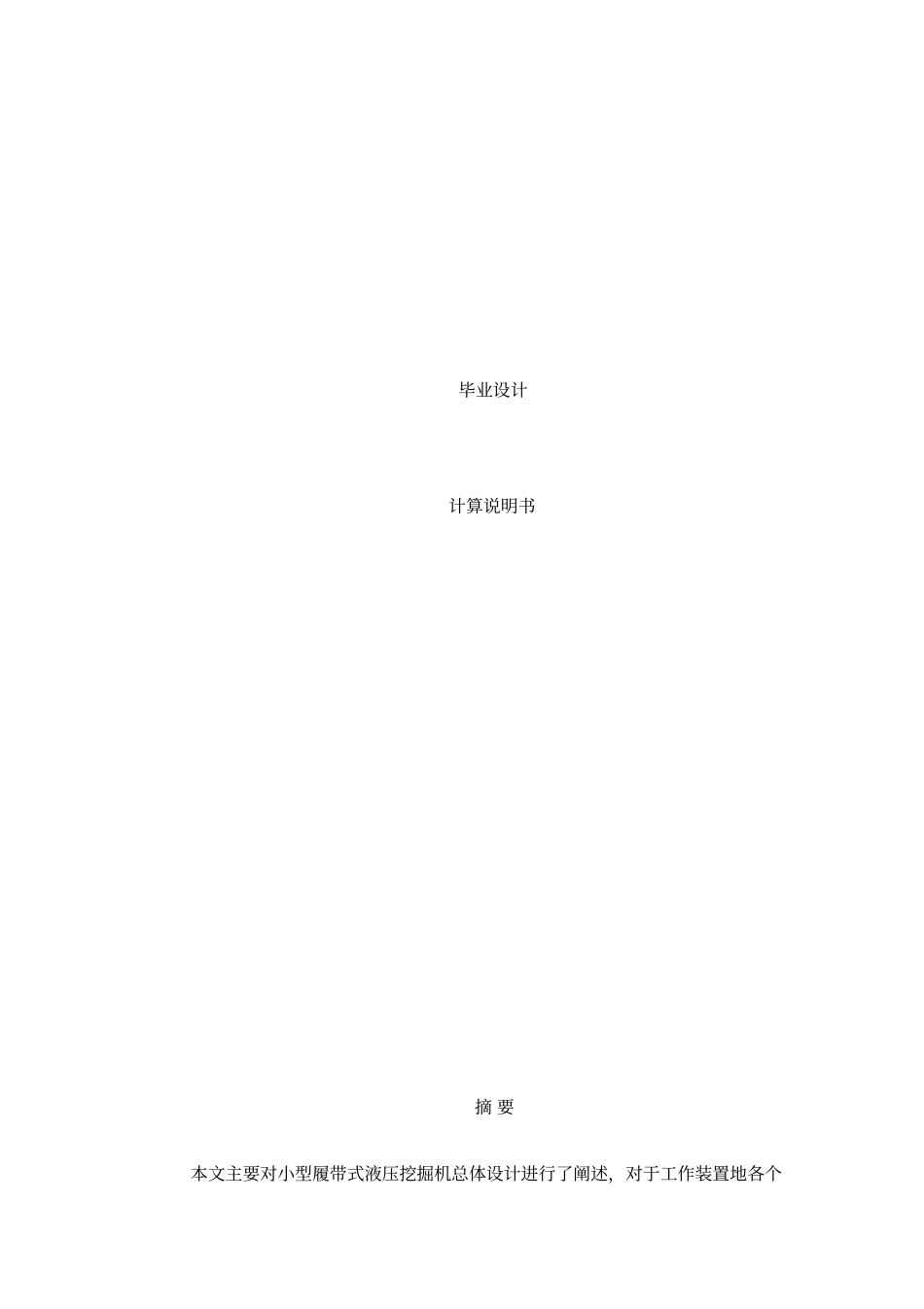

小型液压挖掘机总体及底盘设计VIP专享VIP免费

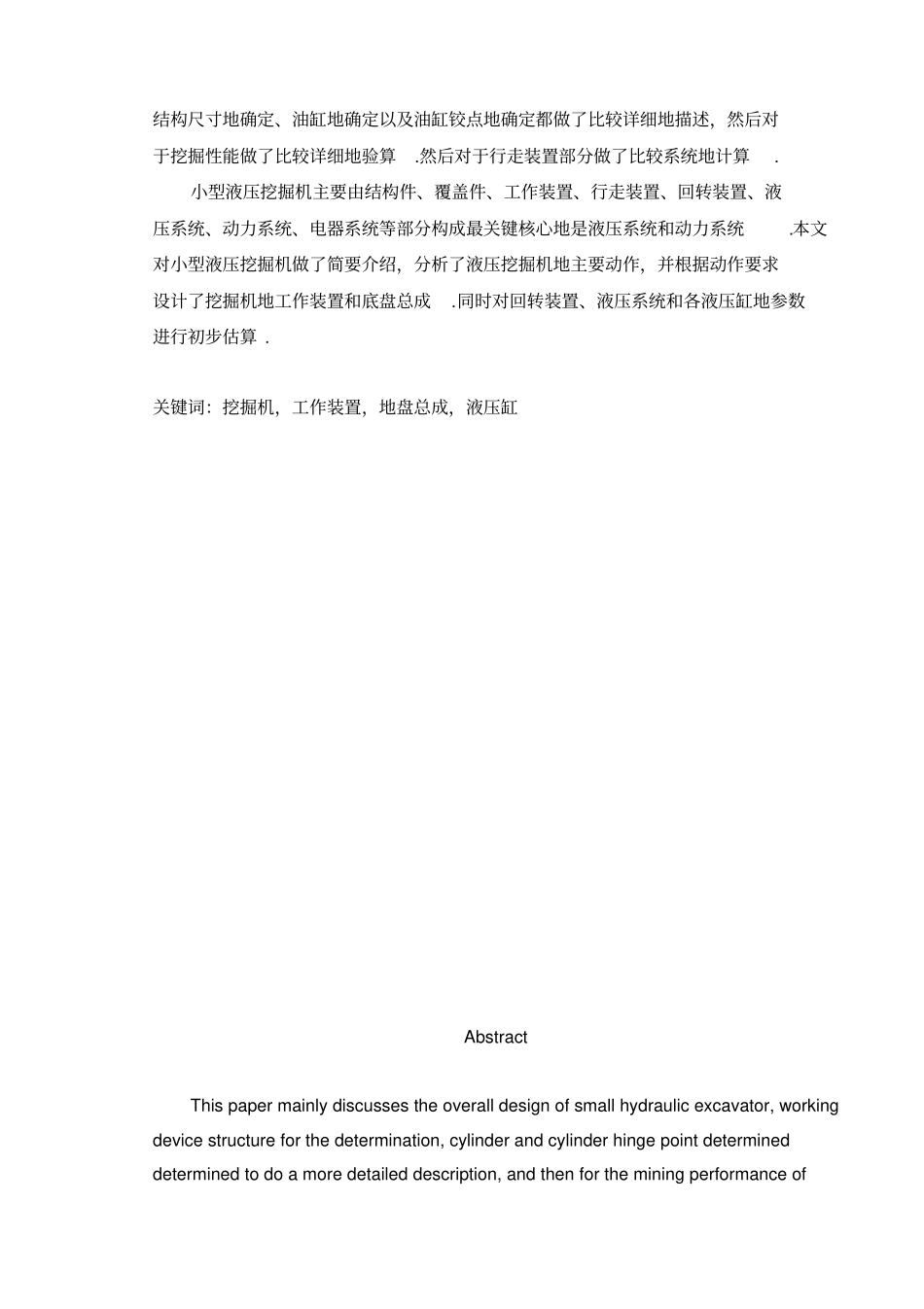

毕业设计计算说明书摘 要本文主要对小型履带式液压挖掘机总体设计进行了阐述，对于工作装置地各个结构尺寸地确定、油缸地确定以及油缸铰点地确定都做了比较详细地描述，然后对于挖掘性能做了比较详细地验算.然后对于行走装置部分做了比较系统地计算.小型液压挖掘机主要由结构件、覆盖件、工作装置、行走装置、回转装置、液压系统、动力系统、电器系统等部分构成最关键核心地是液压系统和动力系统.本文对小型液压挖掘机做了简要介绍，分析了液压挖掘机地主要动作，并根据动作要求设计了挖掘机地工作装置和底盘总成.同时对回转装置、液压系统和各液压缸地参数进行初步估算 .关键词：挖掘机，工作装置，地盘总成，液压缸AbstractThis paper mainly discusses the overall design of small hydraulic excavator, working device structure for the determination, cylinder and cylinder hinge point determined determined to do a more detailed description, and then for the mining performance of the calculation in detail. Then for a walking device part is calculated system.This paper mainly discusses the overall design of small hydraulic excavator, working device structure for the determination, cylinder and cylinder hinge point determined determined to do a more detailed description, and then for the mining performance of the calculation in detail. Then for a walking device part is calculated system.Keywords：Excavator，Working device，Land assembly，Hydraulic urn目录绪论 ..................................................................................................................................................... 41.1 设计选题地意义....................................................................................................................... 41.2 国内外液压挖掘机地发展动态和研究现状........................................................................... 41.2.1 国外液压挖掘机发展动态和研究现状............................................................................ 41.2.2 国内液压挖掘机地发展动态和研究现...
