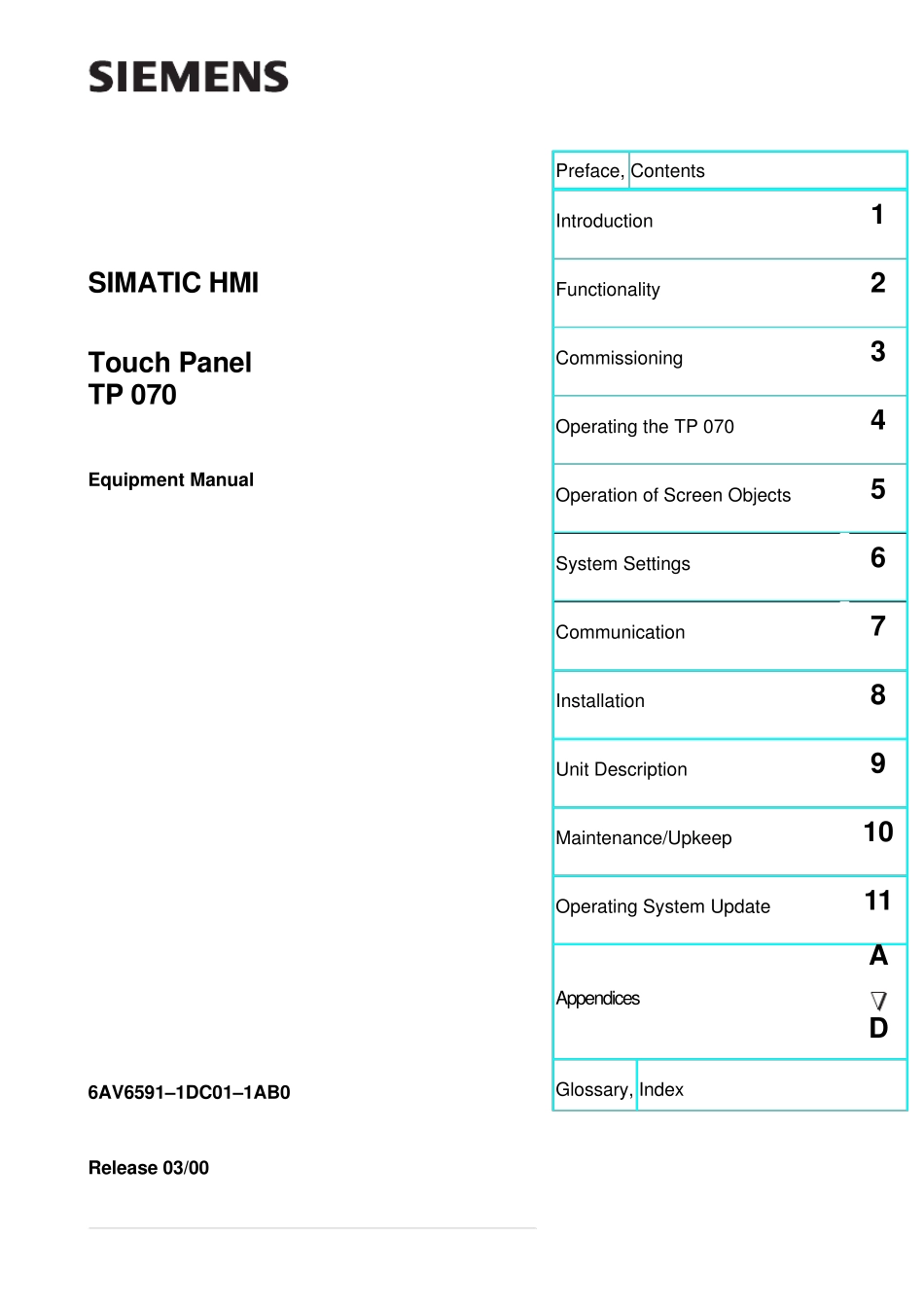

Preface, ContentsIntroduction1Functionality2Commissioning3Operating the TP 0704Operation of Screen Objects5System Settings6Communication7Installation8Unit Description9Maintenance/Upkeep10Operating System Update11AppendicesADGlossary, IndexRelease 03/006AV6591–1DC01–1AB0Touch PanelTP 070Equipment ManualSIMATIC HMIIndex-2TP 070 Equipment ManualRelease 03/00!Warningindicates that death, severe personal injury or substantial property damage can result if proper precau-tions are not taken.!Cautionindicates that minor personal injury or property damage can result if proper precautions are not taken.Notedraws your attention to particularly important information on the product, handling the product, or to aparticular part of the documentation.Qualified PersonnelEquipment may be commissioned and operated only by qualified personnel. Qualified personnel withinthe meaning of the safety notices in this manual are persons who are authorized to commission, groundand identify equipment, systems and circuits in accordance with safety engineering standards.Correct UsageNote the following:!WarningThe equipment may be used only for the applications stipulated in the catalog and in the technical descrip-tion and only in conjunction with other equipment and components recommended or approved by Sie-mens.Startup must not take place until it is established that the machine, which is to accommodate this compo-nent, is in conformity with the guideline 89/392/EEC.Faultless and safe operation of the product presupposes proper transportation, proper storage, erectionand installation as well as careful operation and maintenance.TrademarksThe registered trademarks of Siemens AG are listed in the Preface.Some of the other designations used in these documents are also registered trade...
