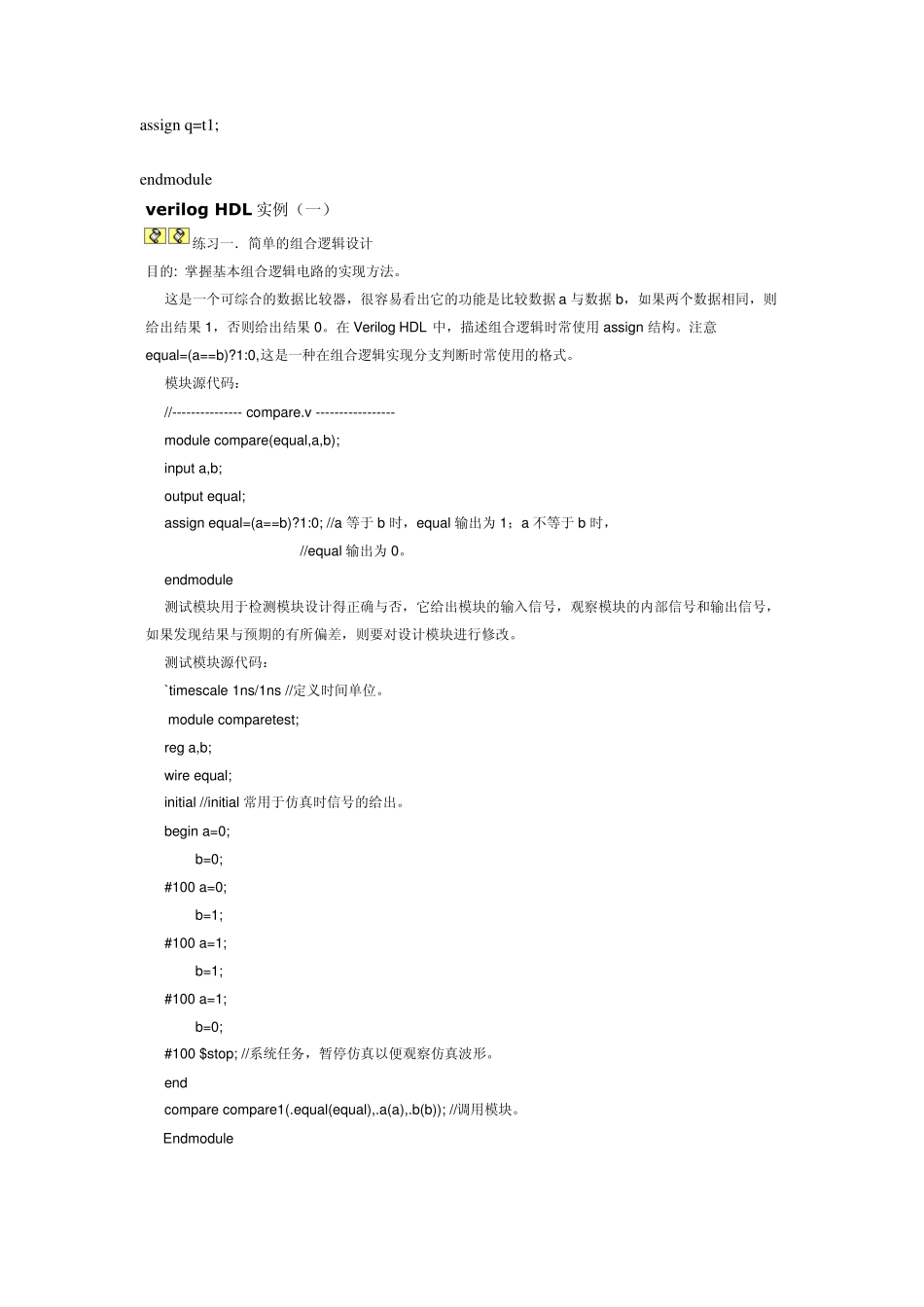

本文档含有很多Verilog HDL 例子: //与门 module zxhand2(c,a,b); input a,b; output c; assign c= a & b; endmodule //或门 module zxhor2(c,a,b); input a,b; output c; assign c= a | b; endmodule //非门 module zxhnot2(c,b); input b; output c; assign c=~ b; endmodule ////异或门 module zxhxro2(c,a,b); input b; output c; assign c=a ^ b; endmodule 两选一电路 module data_scan(d0,d1,sel,q); output q; input d0,d1,sel; wire t1,t2,t3; n1 zxhand2(t1,d0,sel); n2 zxhnot2 (t4,sel); n3 zxhand2(t2,d1,t4); n4 zxhor2(t3,t1,t2); assign q=t1; endmodu le v erilog HDL 实例(一) 练习一.简单的组合逻辑设计 目的: 掌握基本组合逻辑电路的实现方法。 这是一个可综合的数据比较器,很容易看出它的功能是比较数据 a 与数据 b,如果两个数据相同,则给出结果 1,否则给出结果 0。在 Verilog HDL 中,描述组合逻辑时常使用 assign 结构。注意equal=(a==b)?1:0,这是一种在组合逻辑实现分支判断时常使用的格式。 模块源代码: //--------------- compare.v ----------------- module compare(equal,a,b); input a,b; output equal; assign equal=(a==b)?1:0; //a 等于 b 时,equal 输出为 1;a 不等于 b 时, //equal 输出为 0。 endmodule 测试模块用于检测模块设计得正确与否,它给出模块的输入信号,观察模块的内部信号和输出信号,如果发现结果与预期的有所偏差,则要对设计模块进行修改。 测试模块源代码: `timescale 1ns/1ns //定义时间单位。 module comparetest; reg a,b; w ire equal; initial //initial 常用于仿真时信号的给出。 begin a=0; b=0; #100 a=0; b=1; #100 a=1; b=1; #100 a=1; b=0; #100 $stop; //系统任务,暂停仿真以便观察仿真波形。 end compare compare1(.equal(equal),.a(a),.b(b)); //调用模块。 Endmodule 【例3.1】4 位全加器 module adder4(cout,sum,ina,inb,cin); output[3:0] sum; output cout; input[3:0] ina,inb; input cin; assign {cout,sum}=ina+inb+cin; endmodule 【例3.2】4 位计数器 module count4(out,reset,clk); output[3:0] out; input reset,clk; reg[3:0] out; always @(posedge clk) ...
