vrml实例源代码(摆球、风扇、书柜代码)VIP免费

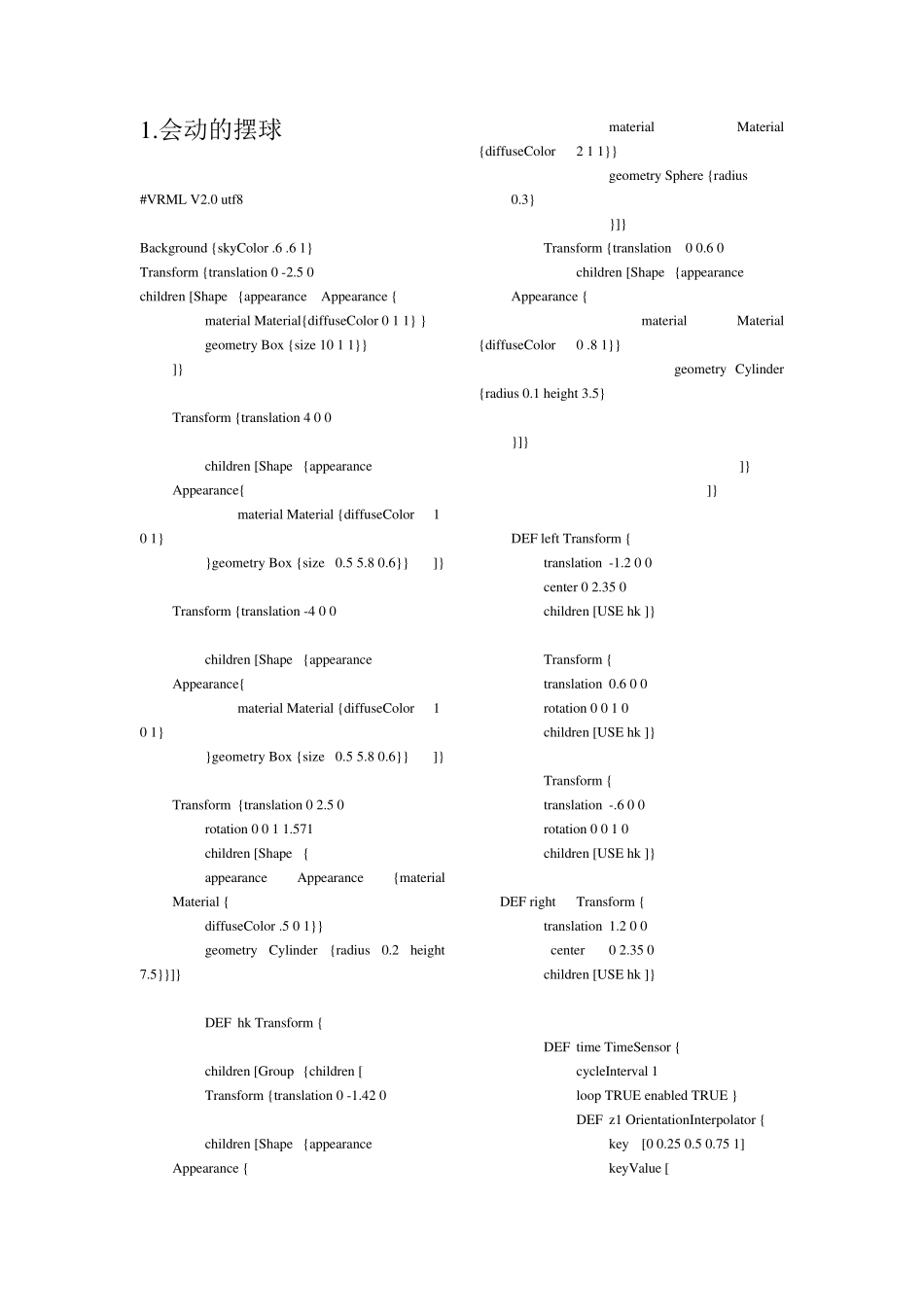

vrml实例源代码(摆球、风扇、书柜代码)_第1页
1/6

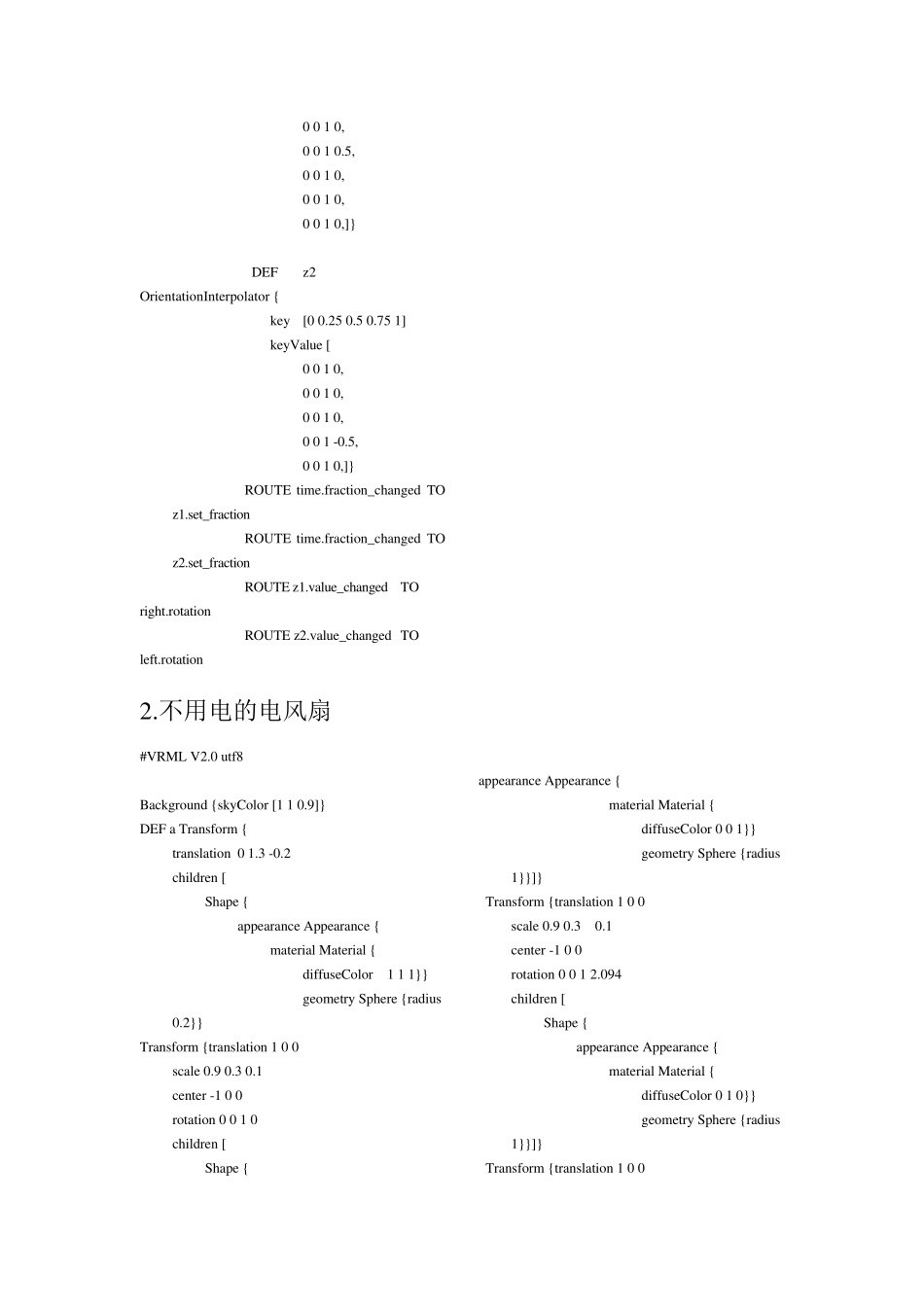

vrml实例源代码(摆球、风扇、书柜代码)_第2页
2/6

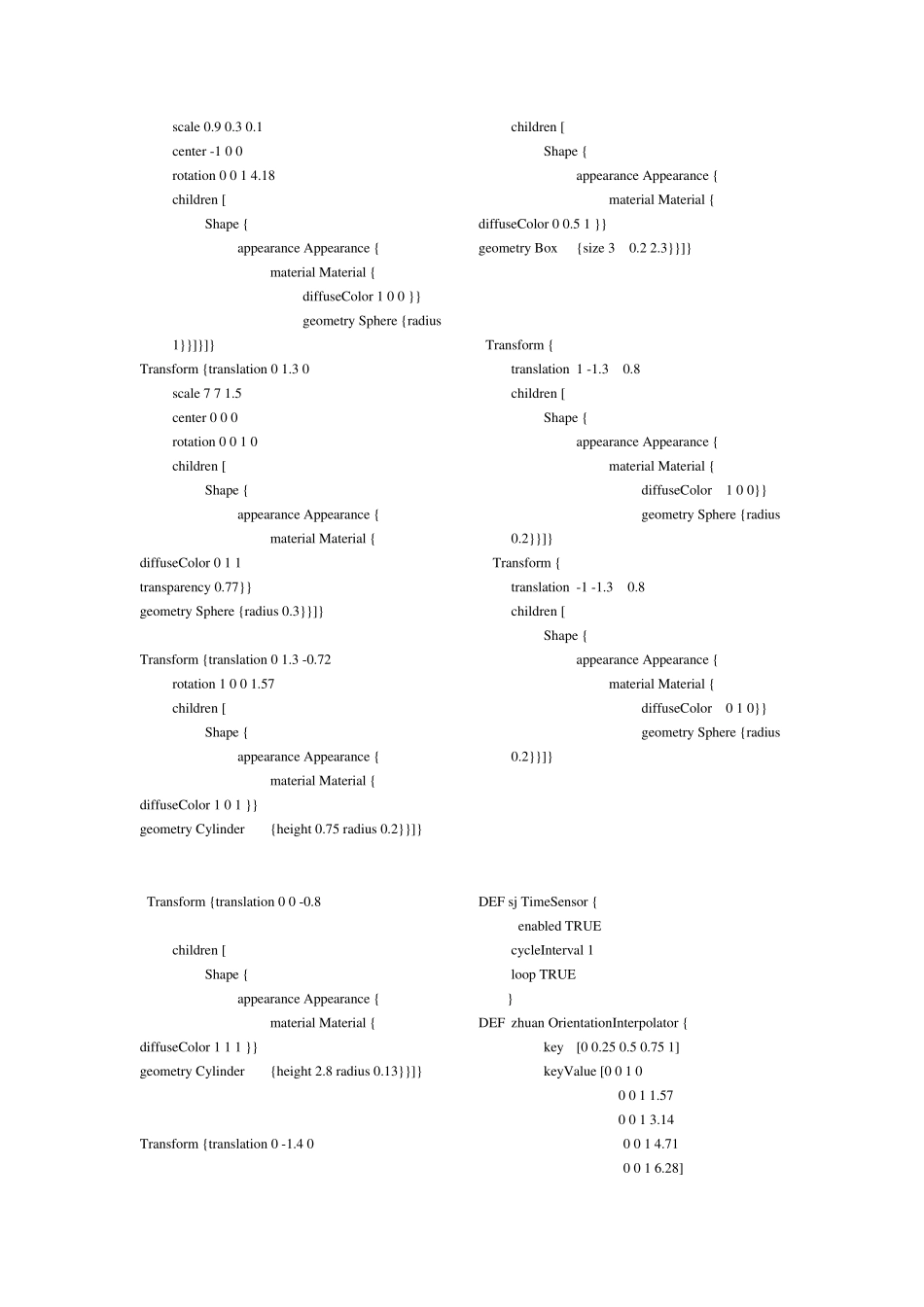

vrml实例源代码(摆球、风扇、书柜代码)_第3页
3/6
1.会动的摆球 #VRML V2.0 utf8 Background {skyColor .6 .6 1} Transform {translation 0 -2.5 0 children [Shape {appearance Appearance { material Material{diffuseColor 0 1 1} } geometry Box {size 10 1 1}} ]} Transform {translation 4 0 0 children [Shape {appearance Appearance{ material Material {diffuseColor 1 0 1} }geometry Box {size 0.5 5.8 0.6}} ]} Transform {translation -4 0 0 children [Shape {appearance Appearance{ material Material {diffuseColor 1 0 1} }geometry Box {size 0.5 5.8 0.6}} ]} Transform {translation 0 2.5 0 rotation 0 0 1 1.571 children [Shape { appearance Appearance {material Material { diffuseColor .5 0 1}} geometry Cylinder {radius 0.2 height 7.5}}]} DEF hk Transform { children [Group {children [ Transform {translation 0 -1.42 0 children [Shape {appearance Appearance { material Material {diffuseColor 2 1 1}} geometry Sphere {radius 0.3} }]} Transform {translation 0 0.6 0 children [Shape {appearance Appearance { material Material {diffuseColor 0 .8 1}} geometry Cylinder {radius 0.1 height 3.5} }]} ]} ]} DEF left Transform { translation -1.2 0 0 center 0 2.35 0 children [USE hk ]} Transform { translation 0.6 0 0 rotation 0 0 1 0 children [USE hk ]} Transform { translation -.6 0 0 rotation 0 0 1 0 children [USE hk ]} DEF right Transform { translation 1.2 0 0 center 0 2.35 0 children [USE hk ]} DEF time TimeSensor { cycleInterval 1 loop TRUE enabled TRUE } DEF z1 OrientationInterpolator { key [0 0.25 0.5 0.75 1] keyValue [ 0 0 1 0, 0 0 1 0.5, 0 0 1 0, 0 0 1 0, 0 0 1 0,]} DEF z2 OrientationInterpolator { key [0 0.25 0.5 0.75 1] keyValue [ 0 0 1 0, 0 0 1 0, 0 0 1 0, 0 0 1 -0.5, 0 0 1 0,]} ROUTE time.fraction_changed TO z1.set_fraction ROUTE time.fraction_chang...

1、当您付费下载文档后,您只拥有了使用权限,并不意味着购买了版权,文档只能用于自身使用,不得用于其他商业用途(如 [转卖]进行直接盈利或[编辑后售卖]进行间接盈利)。
2、本站所有内容均由合作方或网友上传,本站不对文档的完整性、权威性及其观点立场正确性做任何保证或承诺!文档内容仅供研究参考,付费前请自行鉴别。
3、如文档内容存在违规,或者侵犯商业秘密、侵犯著作权等,请点击“违规举报”。

碎片内容

vrml实例源代码(摆球、风扇、书柜代码)
