LV215VW_803022013德国大众高压测试标准VIP免费

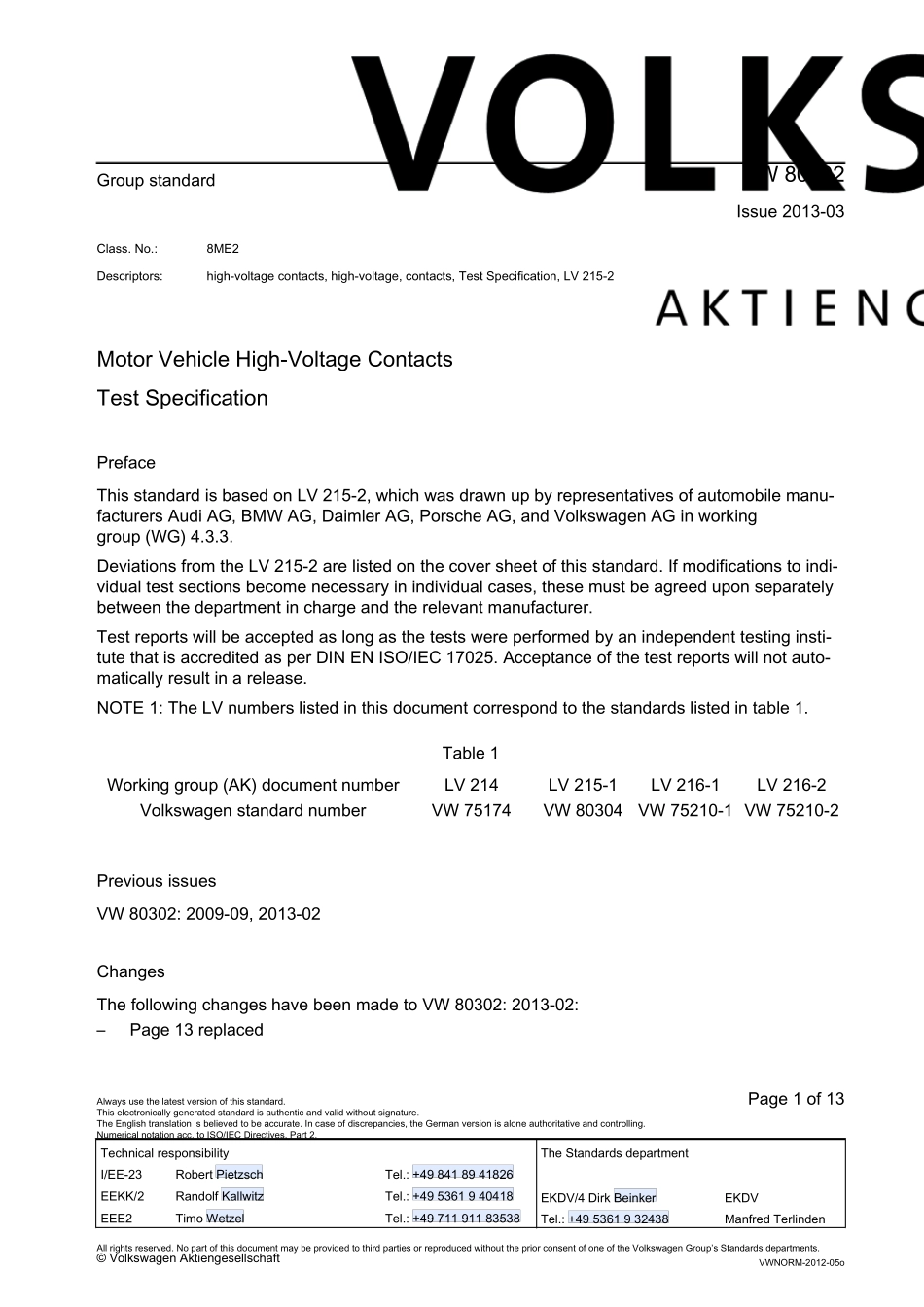

Group standardVW 80302Issue 2013-03Class. No.:8ME2Descriptors:high-voltage contacts, high-voltage, contacts, Test Specification, LV 215-2Motor Vehicle High-Voltage ContactsTest SpecificationPrefaceThis standard is based on LV 215-2, which was drawn up by representatives of automobile manu‐facturers Audi AG, BMW AG, Daimler AG, Porsche AG, and Volkswagen AG in workinggroup (WG) 4.3.3.Deviations from the LV 215-2 are listed on the cover sheet of this standard. If modifications to indi‐vidual test sections become necessary in individual cases, these must be agreed upon separatelybetween the department in charge and the relevant manufacturer.Test reports will be accepted as long as the tests were performed by an independent testing insti‐tute that is accredited as per DIN EN ISO/IEC 17025. Acceptance of the test reports will not auto‐matically result in a release.NOTE 1: The LV numbers listed in this document correspond to the standards listed in table 1.Table 1Working group (AK) document numberLV 214LV 215-1LV 216-1LV 216-2Volkswagen standard numberVW 75174VW 80304VW 75210-1 VW 75210-2Previous issuesVW 80302: 2009-09, 2013-02ChangesThe following changes have been made to VW 80302: 2013-02:–Page 13 replacedAlways use the latest version of this standard.This electronically generated standard is authentic and valid without signature.The English translation is believed to be accurate. In case of discrepancies, the German version is alone authoritative and controlling.Numerical notation acc. to ISO/IEC Directives, Part 2.Page 1 of 13Technical responsibilityThe Standards departmentI/EE-23Robert PietzschTel.: +49 841 89 41826EEKK/2Randolf KallwitzTel.: +49 5361 9 40418EEE2Timo WetzelTel.: +49 711 911 83538EKDV/4 Dirk BeinkerEKDVTel.: +49 ...
