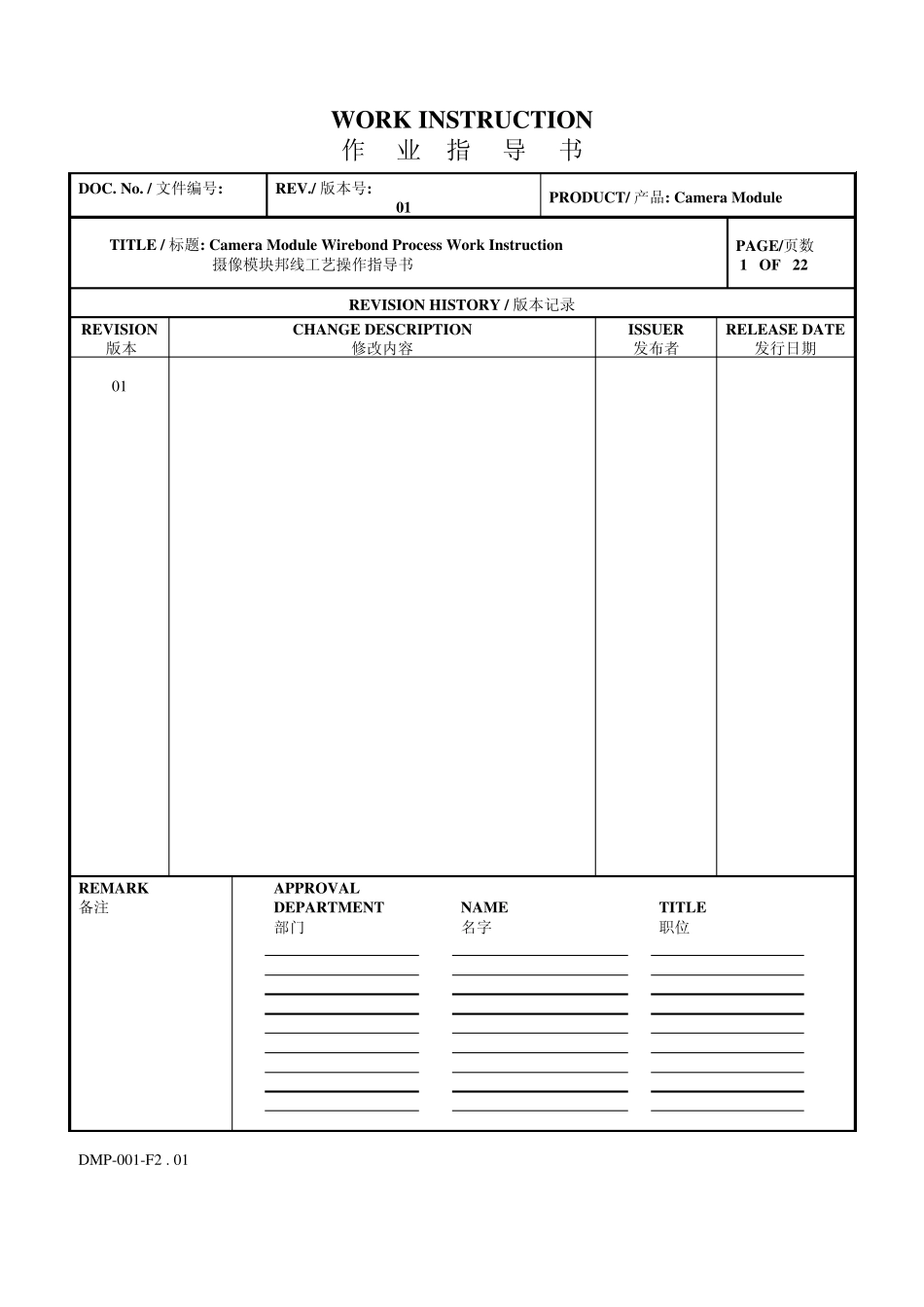

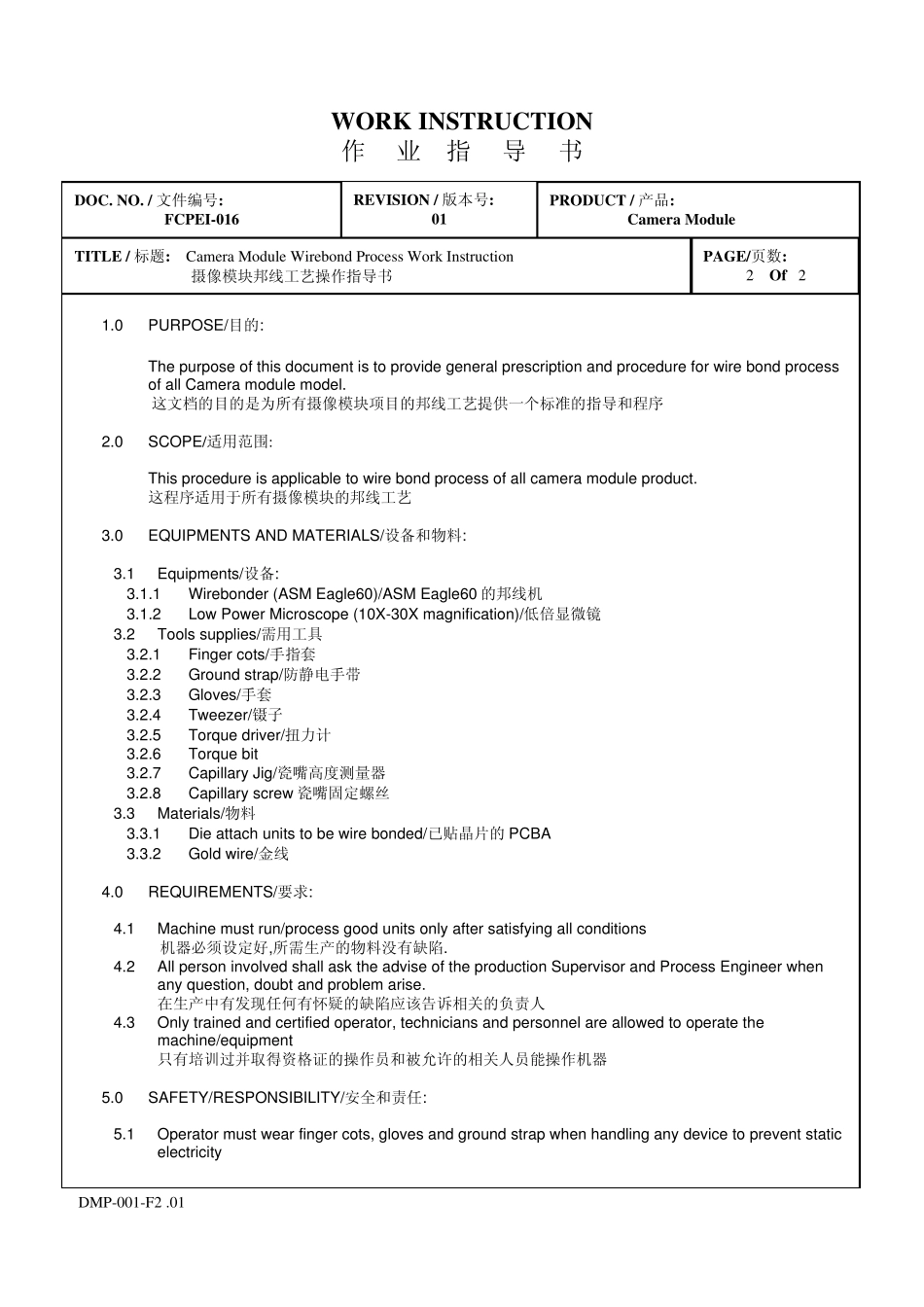

WORK INSTRUCTION 作 业 指 导 书 DOC. No. / 文件编号: REV./ 版本号: 01 PRODUCT/ 产品: Camera Modu le TITLE / 标题: Camera Modu le Wirebond Process Work Instru ction 摄像模块邦线工艺操作指导书 PAGE/页数 1 OF 22 REVISION HISTORY / 版本记录 REVISION 版本 CHANGE DESCRIPTION 修改内容 ISSUER 发布者 RELEASE DATE 发行日期 01 REMARK 备注 APPROVAL DEPARTMENT NAME TITLE 部门 名字 职位 DMP-001-F2 . 01 WORK INSTRUCTION 作 业 指 导 书 DMP-001-F2 .01 DOC. NO. / 文件编号: FCPEI-016 REVISION / 版本号: 01 PRODUCT / 产品: Camera Module TITLE / 标题: Camera Modu le Wirebond Process Work Instru ction 摄像模块邦线工艺操作指导书 PAGE/页数: 2 Of 2 1.0 PURPOSE/目的: The purpose of this document is to provide general prescription and procedure for wire bond process of all Camera module model. 这文档的目的是为所有摄像模块项目的邦线工艺提供一个标准的指导和程序 2.0 SCOPE/适用范围: This procedure is applicable to wire bond process of all camera module product. 这程序适用于所有摄像模块的邦线工艺 3.0 EQUIPMENTS AND MATERIALS/设备和物料: 3.1 Equipments/设备: 3.1.1 Wirebonder (ASM Eagle60)/ASM Eagle60 的邦线机 3.1.2 Low Power Microscope (10X-30X magnification)/低倍显微镜 3.2 Tools supplies/需用工具 3.2.1 Finger cots/手指套 3.2.2 Ground strap/防静电手带 3.2.3 Gloves/手套 3.2.4 Tweezer/镊子 3.2.5 Torque driver/扭力计 3.2.6 Torque bit 3.2.7 Capillary Jig/瓷嘴高度测量器 3.2.8 Capillary screw 瓷嘴固定螺丝 3.3 Materials/物料 3.3.1 Die attach units to be wire bonded/已贴晶片的PCBA 3.3.2 Gold wire/金线 4.0 REQUIREMENTS/要求: 4.1 Machine must run/process good units only after satisfying all conditions 机器必须设定好,所需生产的物料没有缺陷. 4.2 All person involved shall ask the advise of the production Supervisor and Process Engineer when any question, doubt and problem arise. ...
