KW玉柴船用发电机组技术规格书全解

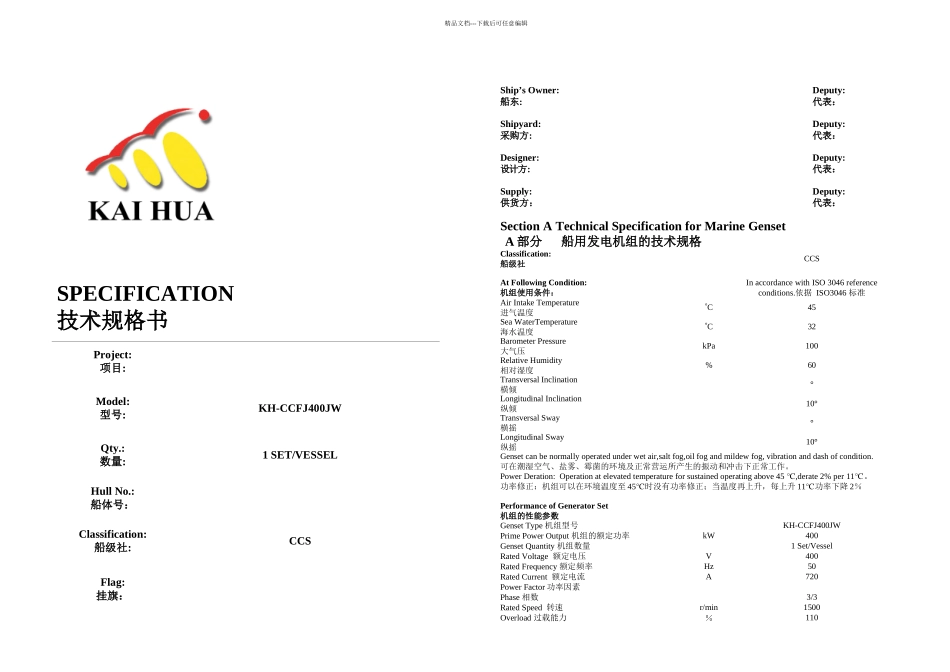

精品文档---下载后可任意编辑SPECIFICATION技术规格书Project:项目:Model:型号:KH-CCFJ400JWQty.:数量:1 SET/VESSELHull No.:船体号：Classification:船级社:CCSFlag:挂旗：Ship’s Owner:船东:Deputy:代表：Shipyard:采购方:Deputy:代表：Designer:设计方:Deputy:代表：Supply:供货方：Deputy:代表：Section A Technical Specification for Marine GensetA 部分 船用发电机组的技术规格Classification:船级社CCSAt Following Condition:机组使用条件：In accordance with ISO 3046 reference conditions.依据 ISO3046 标准Air Intake Temperature进气温度C45Sea WaterTemperature海水温度C32Barometer Pressure大气压kPa100Relative Humidity相对湿度%60Transversal Inclination横倾°Longitudinal Inclination纵倾10°Transversal Sway横摇°Longitudinal Sway纵摇10°Genset can be normally operated under wet air,salt fog,oil fog and mildew fog, vibration and dash of condition.可在潮湿空气、盐雾、霉菌的环境及正常营运所产生的振动和冲击下正常工作。Power Deration: Operation at elevated temperature for sustained operating above 45 ,derate 2% per 11℃℃。功率修正：机组可以在环境温度至 45℃时没有功率修正；当温度再上升，每上升 11℃功率下降 2％Performance of Generator Set机组的性能参数Genset Type 机组型号KH-CCFJ400JWPrime Power Output 机组的额定功率kW400Genset Quantity 机组数量1 Set/VesselRated Voltage 额定电压V400Rated Frequency 额定频率Hz50Rated Current 额定电流A720Power Factor 功率因素Phase 相数3/3Rated Speed 转速r/min1500Overload 过载能力％110精品文档---下载后可任意编辑Momentary Frequency Variation瞬态频率调整率±10%0-100%Em’cy Load -0Frequency Variation in Steady State稳态频率调整率 1％Recovery Time恢复时间Second秒≤5Momentary Voltage Variation瞬态电压调整率≥-15%, ≤+20%Voltage Regulation in Steady State稳态电压调整率≤%Voltage Variation in Steady State稳态电压波动率±1%Recovery Time恢复时间Second秒≤1.5Range of Voltage Regulation at Unload:空载调压范围：95%∽105% of ratedvoltage额定电压的 95%105%∽Overload...
