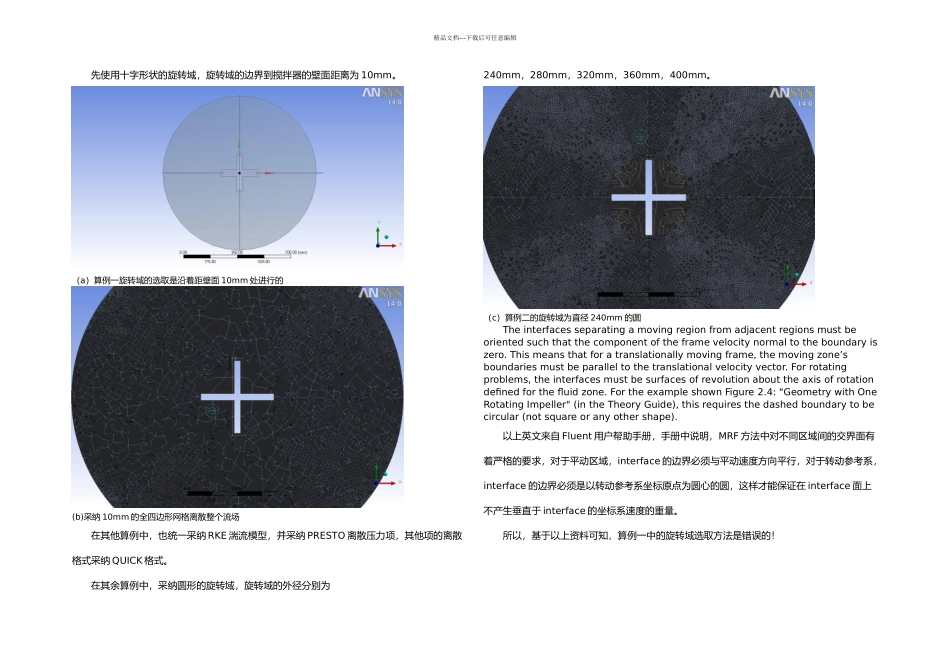

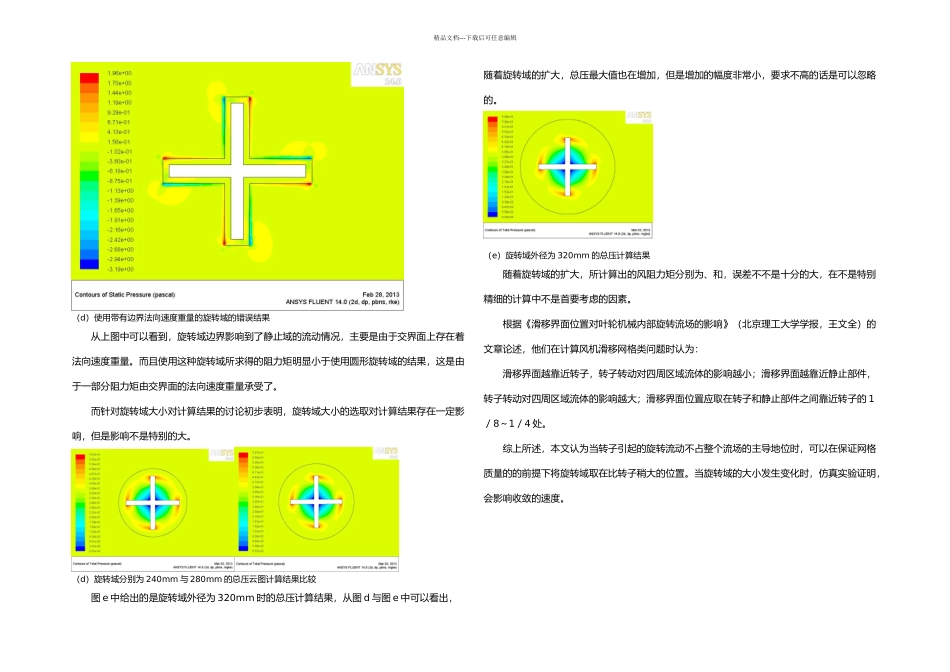

精品文档---下载后可任意编辑先使用十字形状的旋转域,旋转域的边界到搅拌器的壁面距离为 10mm。(a)算例一旋转域的选取是沿着距壁面 10mm 处进行的(b)采纳 10mm 的全四边形网格离散整个流场在其他算例中,也统一采纳 RKE 湍流模型,并采纳 PRESTO 离散压力项,其他项的离散格式采纳 QUICK 格式。在其余算例中,采纳圆形的旋转域,旋转域的外径分别为240mm,280mm,320mm,360mm,400mm。(c)算例二的旋转域为直径 240mm 的圆The interfaces separating a moving region from adjacent regions must be oriented such that the component of the frame velocity normal to the boundary is zero. This means that for a translationally moving frame, the moving zone’s boundaries must be parallel to the translational velocity vector. For rotating problems, the interfaces must be surfaces of revolution about the axis of rotation defined for the fluid zone. For the example shown Figure 2.4: "Geometry with One Rotating Impeller" (in the Theory Guide), this requires the dashed boundary to be circular (not square or any other shape).以上英文来自 Fluent 用户帮助手册,手册中说明,MRF 方法中对不同区域间的交界面有着严格的要求,对于平动区域,interface 的边界必须与平动速度方向平行,对于转动参考系,interface 的边界必须是以转动参考系坐标原点为圆心的圆,这样才能保证在 interface 面上不产生垂直于 interface 的坐标系速度的重量。所以,基于以上资料可知,算例一中的旋转域选取方法是错误的!精品文档---下载后可任意编辑(d)使用带有边界法向速度重量的旋转域的错误结果从上图中可以看到,旋转域边界影响到了静止域的流动情况,主要是由于交界面上存在着法向速度重量。而且使用这种旋转域所求得的阻力矩明显小于使用圆形旋转域的结果,这是由于一部分阻力矩由交界面的法向速度重量承受了。而针对旋转域大小对计算结果的讨论初步表明,旋转域大小的选取对计算结果存在一定影响,但是影响不是特别的大。(d)旋转域分别为 240mm 与 280mm 的总压云图计算结果比较图 e 中给出的是旋转域外径为 320mm 时的总压计算结果,从图 d 与图 e 中可以看出,随着旋转域的扩...
