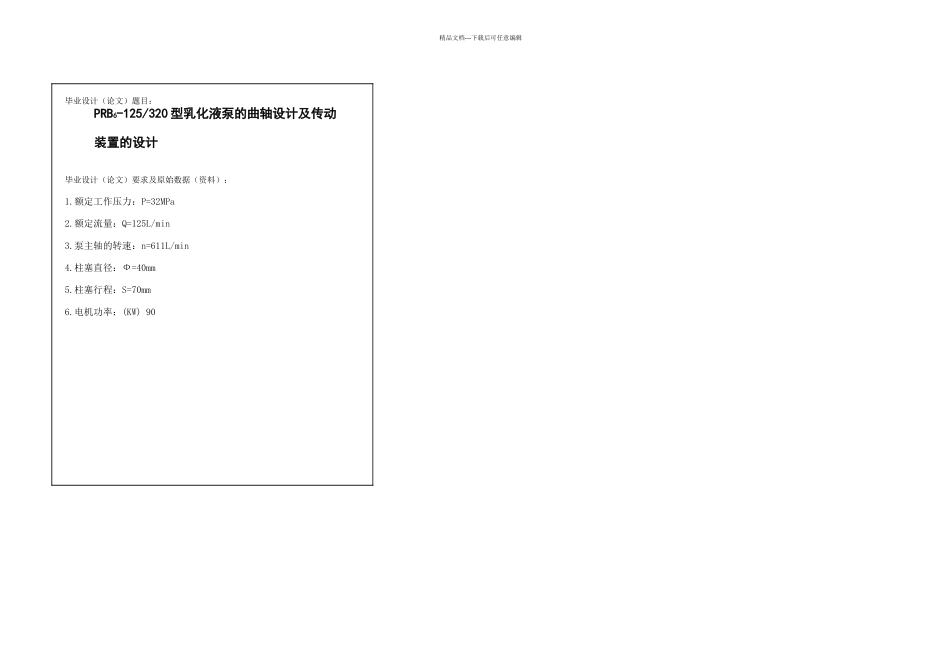

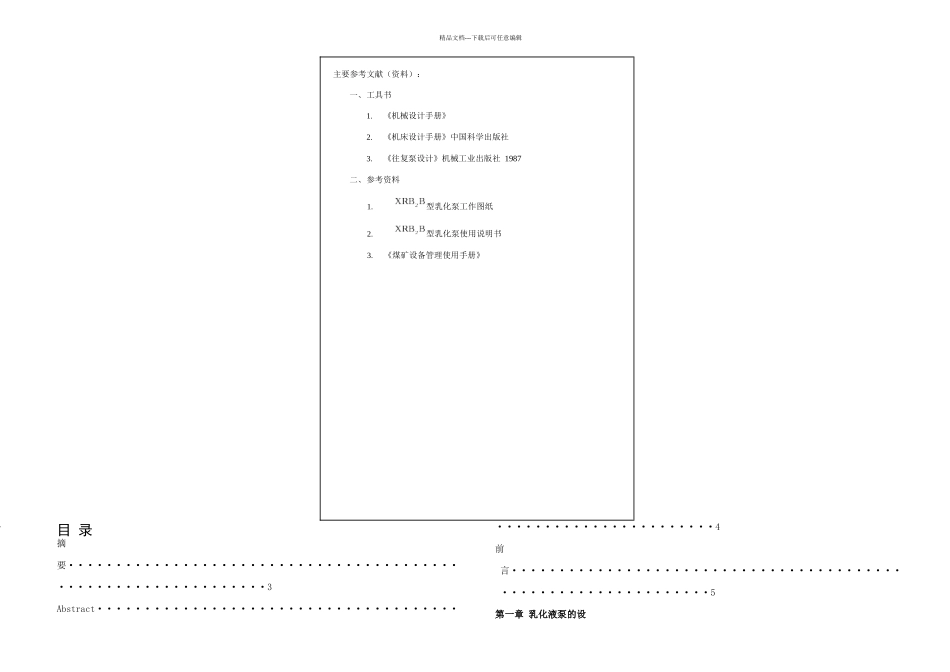

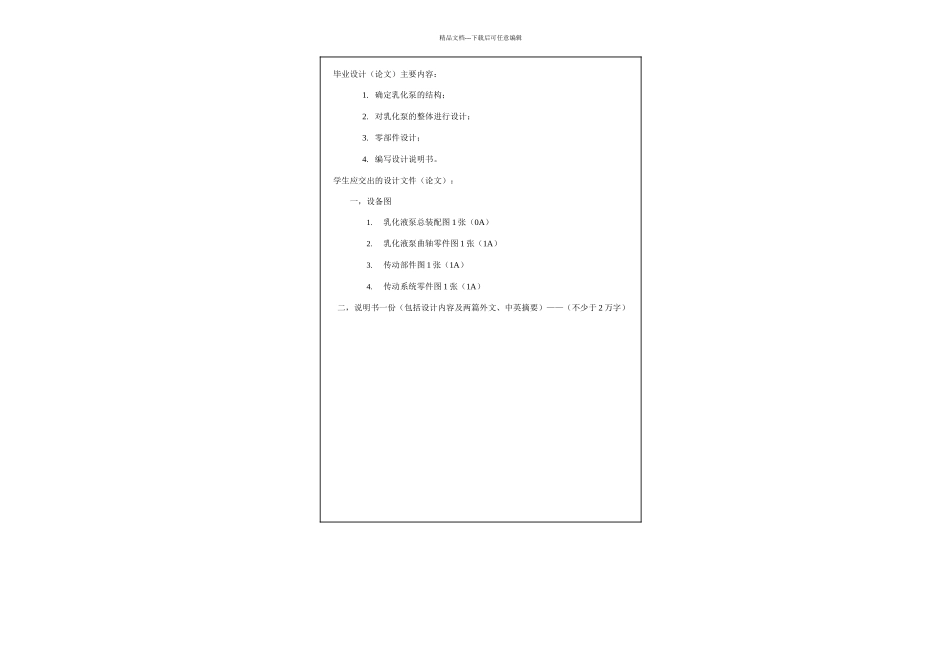

精品文档---下载后可任意编辑毕业设计（论文）题目：PRB6-125/320 型乳化液泵的曲轴设计及传动装置的设计毕业设计（论文）要求及原始数据（资料）：1.额定工作压力：P=32MPa2.额定流量：Q=125L/min3.泵主轴的转速：n=611L/min4.柱塞直径：Ф=40mm5.柱塞行程：S=70mm6.电机功率：(KW) 90精品文档---下载后可任意编辑毕业设计（论文）主要内容：1. 确定乳化泵的结构；2. 对乳化泵的整体进行设计；3. 零部件设计；4. 编写设计说明书。学生应交出的设计文件（论文）：一，设备图1.乳化液泵总装配图 1 张（0A）2.乳化液泵曲轴零件图 1 张（1A）3.传动部件图 1 张（1A）4.传动系统零件图 1 张（1A） 二，说明书一份（包括设计内容及两篇外文、中英摘要）——（不少于 2 万字）精品文档---下载后可任意编辑主要参考文献（资料）：一、工具书1.《机械设计手册》2.《机床设计手册》中国科学出版社3.《往复泵设计》机械工业出版社 1987二、参考资料1.型乳化泵工作图纸2.型乳化泵使用说明书3.《煤矿设备管理使用手册》目 录摘 要·······························································3Abstract·····························································4前 言·······························································5第一章 乳化液泵的设精品文档---下载后可任意编辑计··············································6一、概述···························································6二、乳化液泵的总体设计·············································6（一）乳化液泵泵型及总体结构形式的选择························6（二）液力端结构形式的选择····································7（三）传动端结构形式的选择····································8（四）型乳化液泵结构参数的选择与确定···············...
