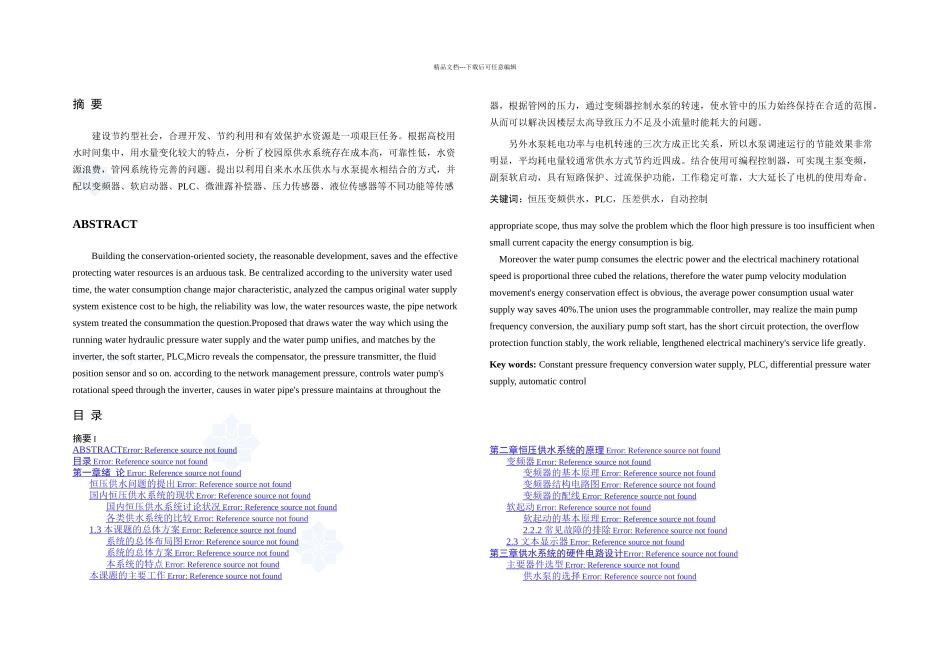

精品文档---下载后可任意编辑摘 要建设节约型社会，合理开发、节约利用和有效保护水资源是一项艰巨任务。根据高校用水时间集中，用水量变化较大的特点，分析了校园原供水系统存在成本高，可靠性低，水资源浪费，管网系统待完善的问题。提出以利用自来水水压供水与水泵提水相结合的方式，并配以变频器、软启动器、PLC、微泄露补偿器、压力传感器、液位传感器等不同功能等传感器，根据管网的压力，通过变频器控制水泵的转速，使水管中的压力始终保持在合适的范围。从而可以解决因楼层太高导致压力不足及小流量时能耗大的问题。另外水泵耗电功率与电机转速的三次方成正比关系，所以水泵调速运行的节能效果非常明显，平均耗电量较通常供水方式节约近四成。结合使用可编程控制器，可实现主泵变频，副泵软启动，具有短路保护、过流保护功能，工作稳定可靠，大大延长了电机的使用寿命。关键词：恒压变频供水，PLC，压差供水，自动控制ABSTRACTBuilding the conservation-oriented society, the reasonable development, saves and the effective protecting water resources is an arduous task. Be centralized according to the university water used time, the water consumption change major characteristic, analyzed the campus original water supply system existence cost to be high, the reliability was low, the water resources waste, the pipe network system treated the consummation the question.Proposed that draws water the way which using the running water hydraulic pressure water supply and the water pump unifies, and matches by the inverter, the soft starter, PLC,Micro reveals the compensator, the pressure transmitter, the fluid position sensor and so on. according to the network management pressure, controls water pump's rotational speed through the inverter, causes in water pipe's pressure maintains at throughout the appropriate scope, thus may solve the problem which the floor high pressure is too insufficient when small current capacity the energy consumption is big. Moreover the water pump consume...
