机械毕业设计搪玻璃反应釜说明书

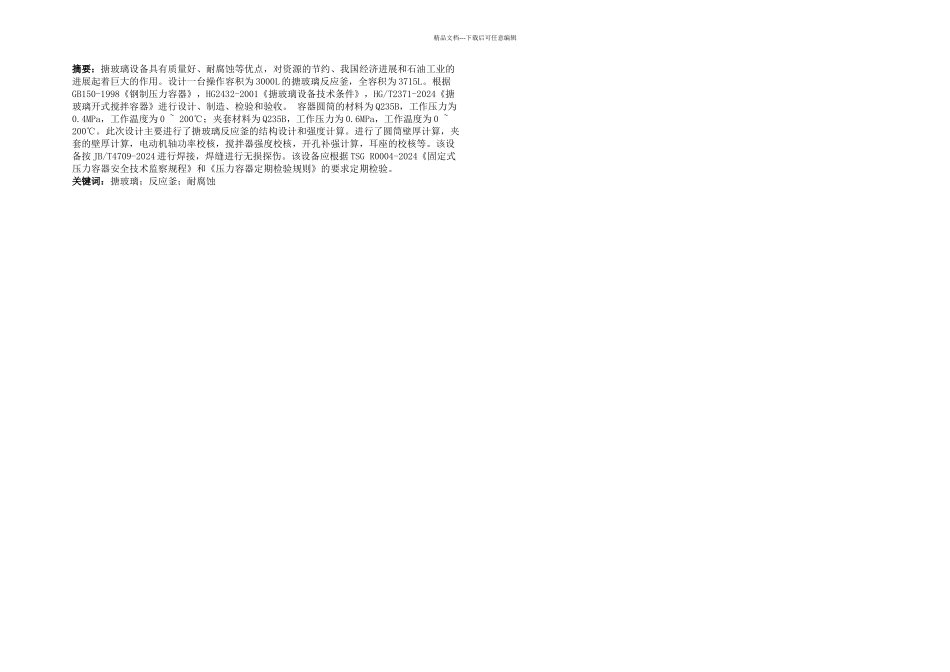

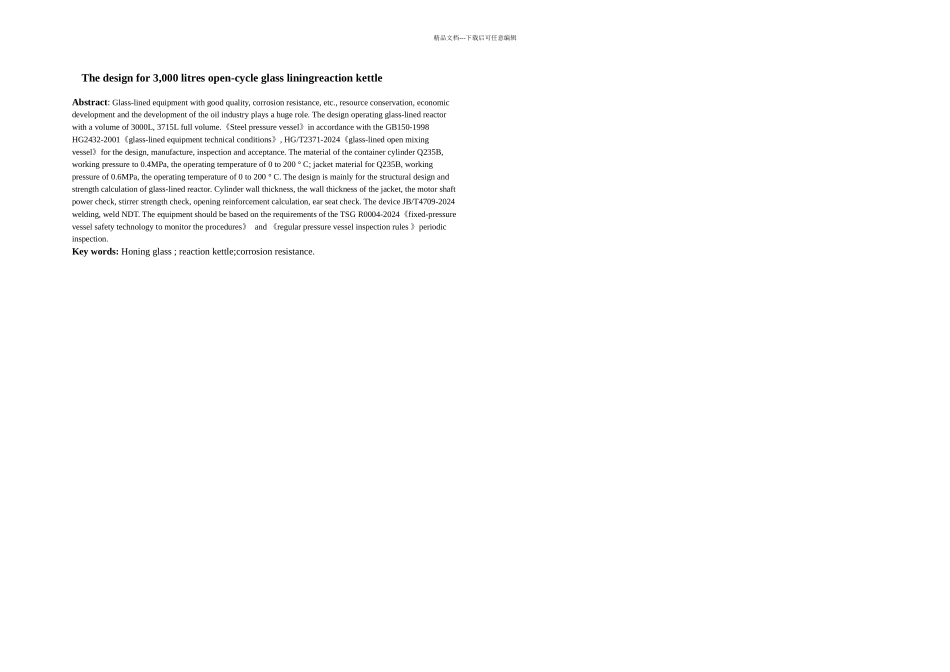

精品文档---下载后可任意编辑摘要：搪玻璃设备具有质量好、耐腐蚀等优点，对资源的节约、我国经济进展和石油工业的进展起着巨大的作用。设计一台操作容积为 3000L 的搪玻璃反应釜，全容积为 3715L。根据GB150-1998《钢制压力容器》，HG2432-2001《搪玻璃设备技术条件》，HG/T2371-2024《搪玻璃开式搅拌容器》进行设计、制造、检验和验收。 容器圆筒的材料为 Q235B，工作压力为0.4MPa，工作温度为 0 ~ 200℃；夹套材料为 Q235B，工作压力为 0.6MPa，工作温度为 0 ~ 200℃。此次设计主要进行了搪玻璃反应釜的结构设计和强度计算。进行了圆筒壁厚计算，夹套的壁厚计算，电动机轴功率校核，搅拌器强度校核，开孔补强计算，耳座的校核等。该设备按 JB/T4709-2024 进行焊接，焊缝进行无损探伤。该设备应根据 TSG R0004-2024《固定式压力容器安全技术监察规程》和《压力容器定期检验规则》的要求定期检验。关键词：搪玻璃；反应釜；耐腐蚀精品文档---下载后可任意编辑The design for 3,000 litres open-cycle glass liningreaction kettleAbstract: Glass-lined equipment with good quality, corrosion resistance, etc., resource conservation, economic development and the development of the oil industry plays a huge role. The design operating glass-lined reactor with a volume of 3000L, 3715L full volume.《Steel pressure vessel》in accordance with the GB150-1998 HG2432-2001《glass-lined equipment technical conditions》, HG/T2371-2024《glass-lined open mixing vessel》for the design, manufacture, inspection and acceptance. The material of the container cylinder Q235B, working pressure to 0.4MPa, the operating temperature of 0 to 200 ° C; jacket material for Q235B, working pressure of 0.6MPa, the operating temperature of 0 to 200 ° C. The design is mainly for the structural design and strength calculation of glass-lined reactor. Cylinder wall thickness, the wall thickness of the jacket, the motor shaft power check, stirrer strength check, opening reinforcement calculation, ear seat check. The device J...
