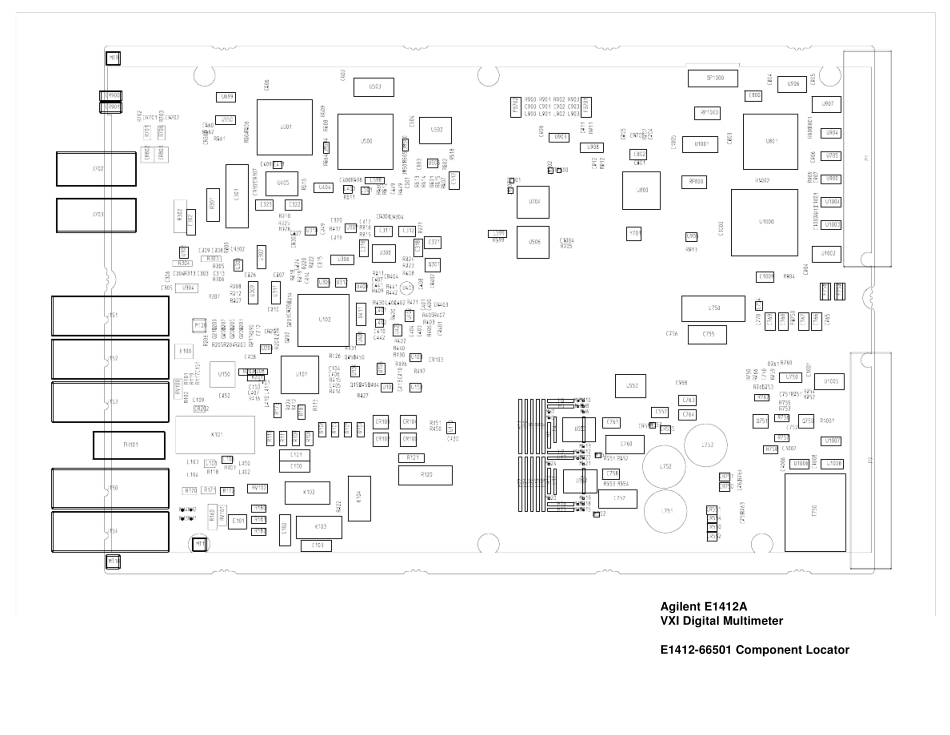

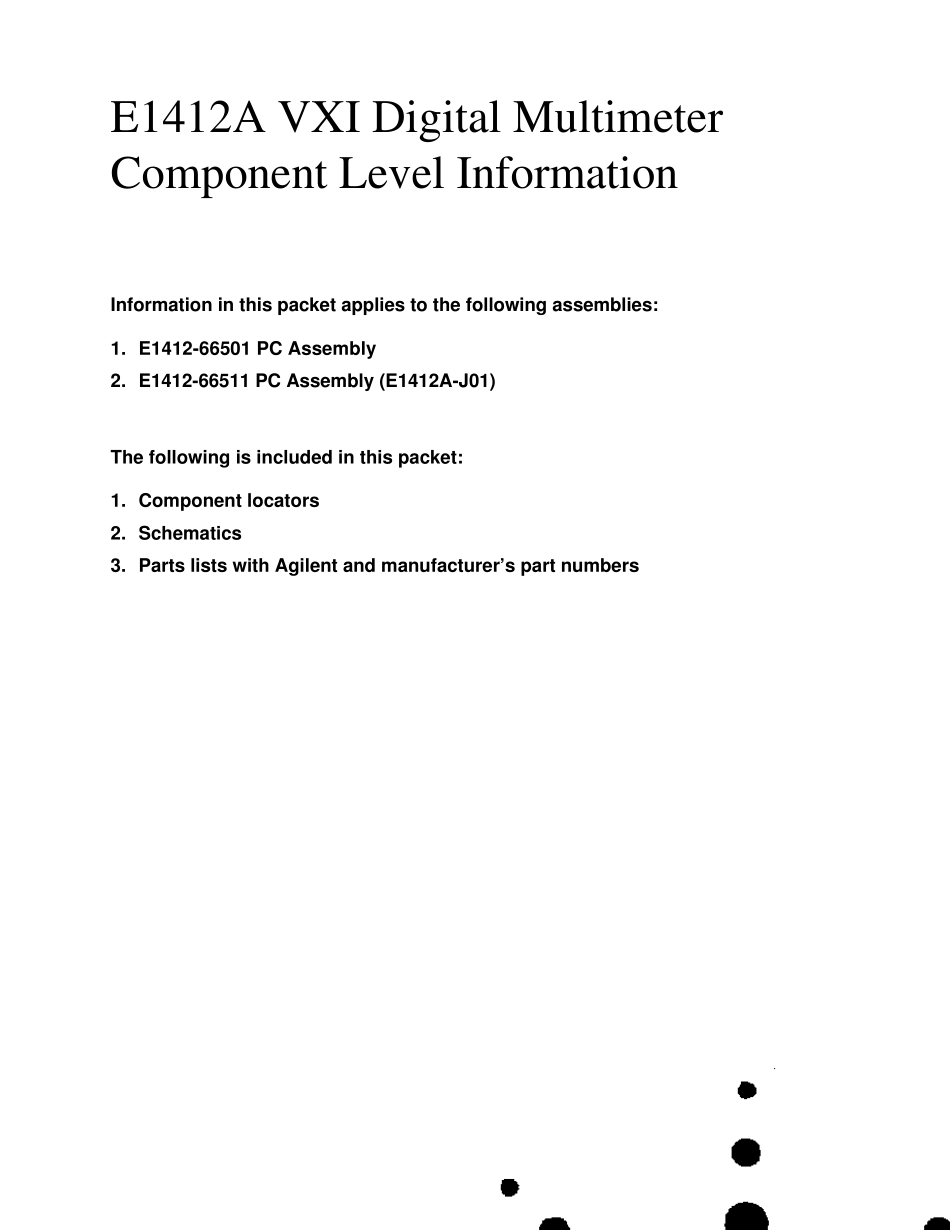

Agilent E1412A Component Lev el InformationE1412A VXI Digital Mu ltimeter Component Lev el InformationInformation in this packet applies to the following assemblies:1. E1412-66501 PC Assembly2. E1412-66511 PC Assembly (E1412A-J01)The following is included in this packet:1. Component locators2. Schematics3. Parts lists with Agilent and manufacturer’s part numbersAgilent E1412AVXI Digital Mu ltimeterE1412-66501 Component LocatorAgilent E1412AVXI Digital Mu ltimeterE1412-66501 Inpu t ProtectionPage 1 of 10Agilent E1412AVXI Digital MultimeterE1412-66501 Function Sw itchingPage 2 of 10Agilent E1412AVXI Digital Mu ltimeterE1412-66501 DC Amp & OhmsPage 3 of 10Agilent E1412AVXI Digital Mu ltimeterE1412-66501 AC Circu itPage 4 of 10Agilent E1412AVXI Digital MultimeterE1412-66501 A/D ConverterPage 5 of 10Agilent E1412AVXI Digital Mu ltimeterE1412-66501 Floating LogicPage 6 of 10Agilent E1412AVXI Digital MultimeterE1412-66501 Pow er SuppliesPage 7 of 10Agilent E1412AVXI Digital Mu ltimeterE1412-66501 Ou tgu ard 8051 & ACTEL 1010Page 8 of 10Agilent E1412AVXI Digital Mu ltimeterE1412-66501 Ou tgu ard Backplane Interface andLED LogicPage 9 of 10Agilent E1412AVXI Digital Mu ltimeterE1412-66501 Ou tgu ard TTL Trig, IRQ Mask, LA Logic and ACTEL 1020Page 10 of 10E1412-66501 / E1412-66511 Parts ListReference DesignatorQTYAgilentPart Nu mberDescriptionMPNManu factu rerC100, C102, C10330160-6839CAP-FXD 470pF +-2pct 630 V POLYP-FL2222-462-90005ECPT1-10267GBFC246290005VISHAY BC COMPONENTSELECTRONIC CONCEPTSVISHAYC1000-C1008, C751, C756,C801, C803, C904-C908180160-5945CAP-FXD 0.01u F +-10pct 50 V CER X7R08055C103KAT A223858016627C0805C103K5RACC2012X7R1H103KGRM216R71H103KA01JVJ0805Y103KXAMTAVXYAGEOKEMET ELECTRONICSTDKMURATA MANUFACTURINGVISHAYC1009, C311, C312, C322,C323, C557, C800, C80...
