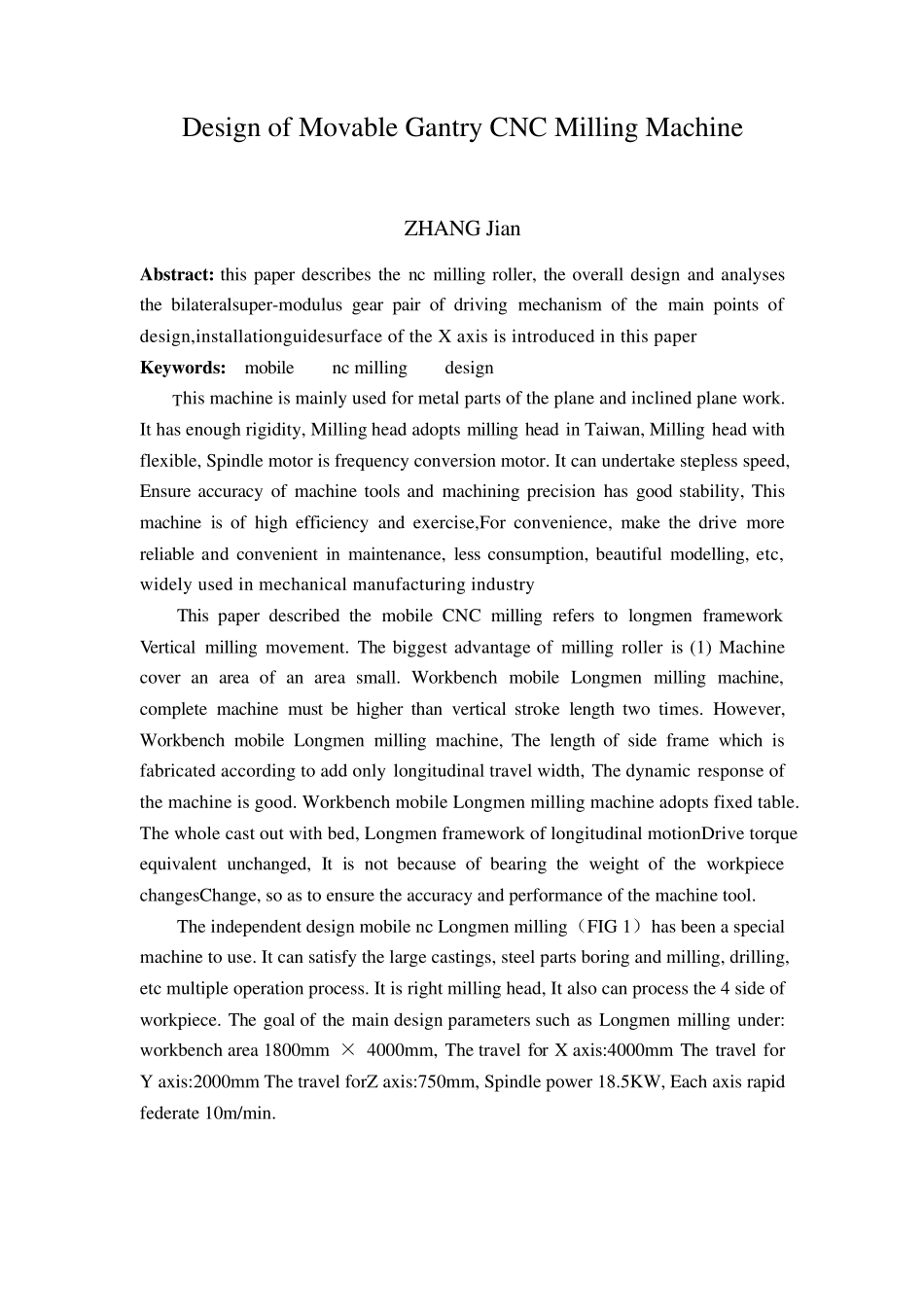

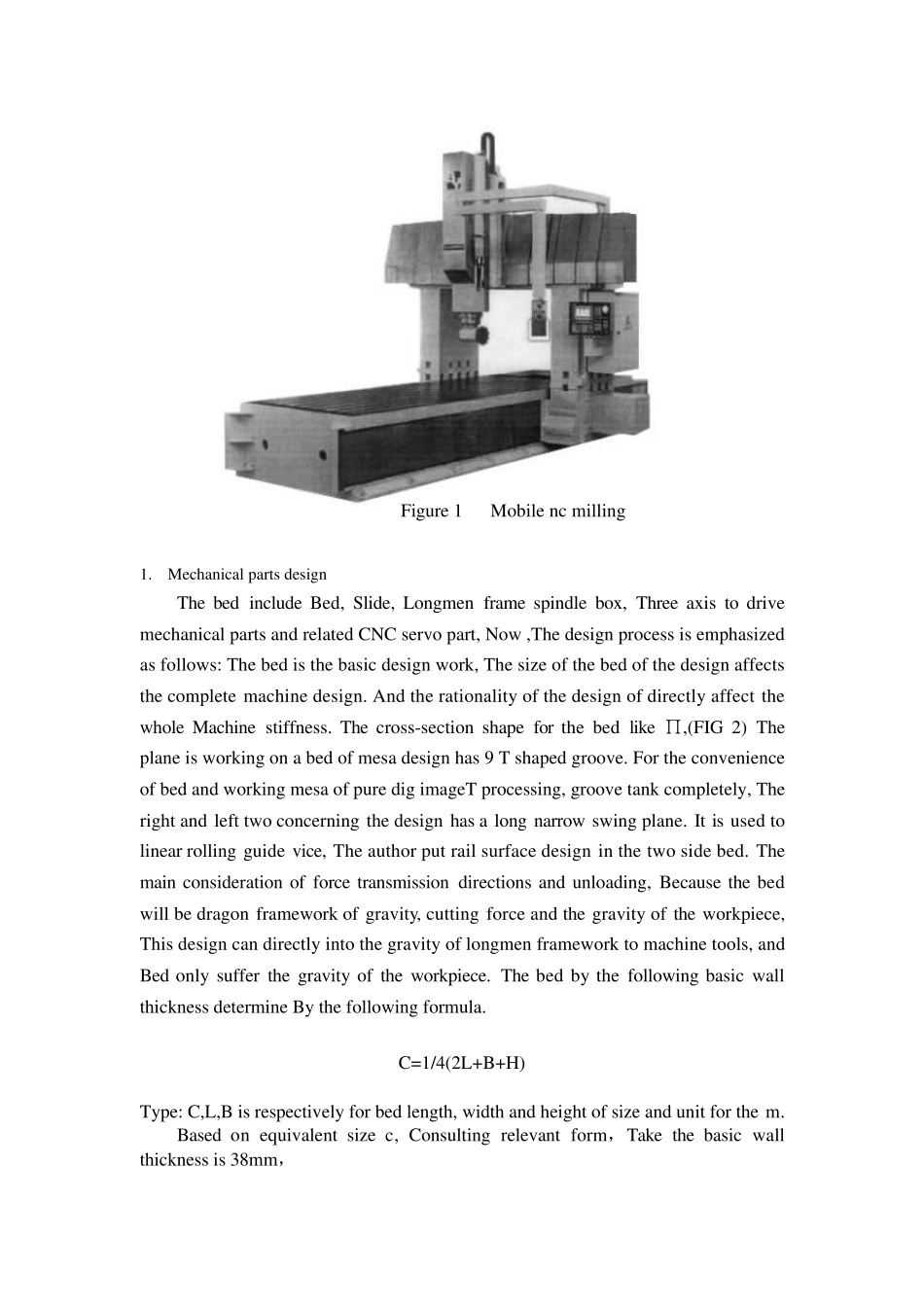

Design of Movable Gantry CNC Milling Machine ZHANG Jian Abstract: this paper describes the nc milling roller, the overall design and analyses the bilateralsuper-modulus gear pair of driving mechanism of the main points of design,installationguidesurface of the X axis is introduced in this paper Keywords: mobile nc milling design This machine is mainly used for metal parts of the plane and inclined plane work. It has enough rigidity, Milling head adopts milling head in Taiwan, Milling head with flexible, Spindle motor is frequency conversion motor. It can undertake stepless speed, Ensure accuracy of machine tools and machining precision has good stability, This machine is of high efficiency and exercise,For convenience, make the drive more reliable and convenient in maintenance, less consumption, beautiful modelling, etc, widely used in mechanical manufacturing industry. This paper described the mobile CNC milling refers to longmen framework Vertical milling movement. The biggest advantage of milling roller is (1) Machine cover an area of an area small. Workbench mobile Longmen milling machine, complete machine must be higher than vertical stroke length two times. However, Workbench mobile Longmen milling machine, The length of side frame which is fabricated according to add only longitudinal travel width, The dynamic response of the machine is good. Workbench mobile Longmen milling machine adopts fixed table. The whole cast out with bed, Longmen framework of longitudinal motionDrive torque equivalent unchanged, It is not because of bearing the weight of the workpiece changesChange, so as to ensure the accuracy and performance of the machine tool. The independent design mobile nc Longmen milling（FIG 1）has be...
