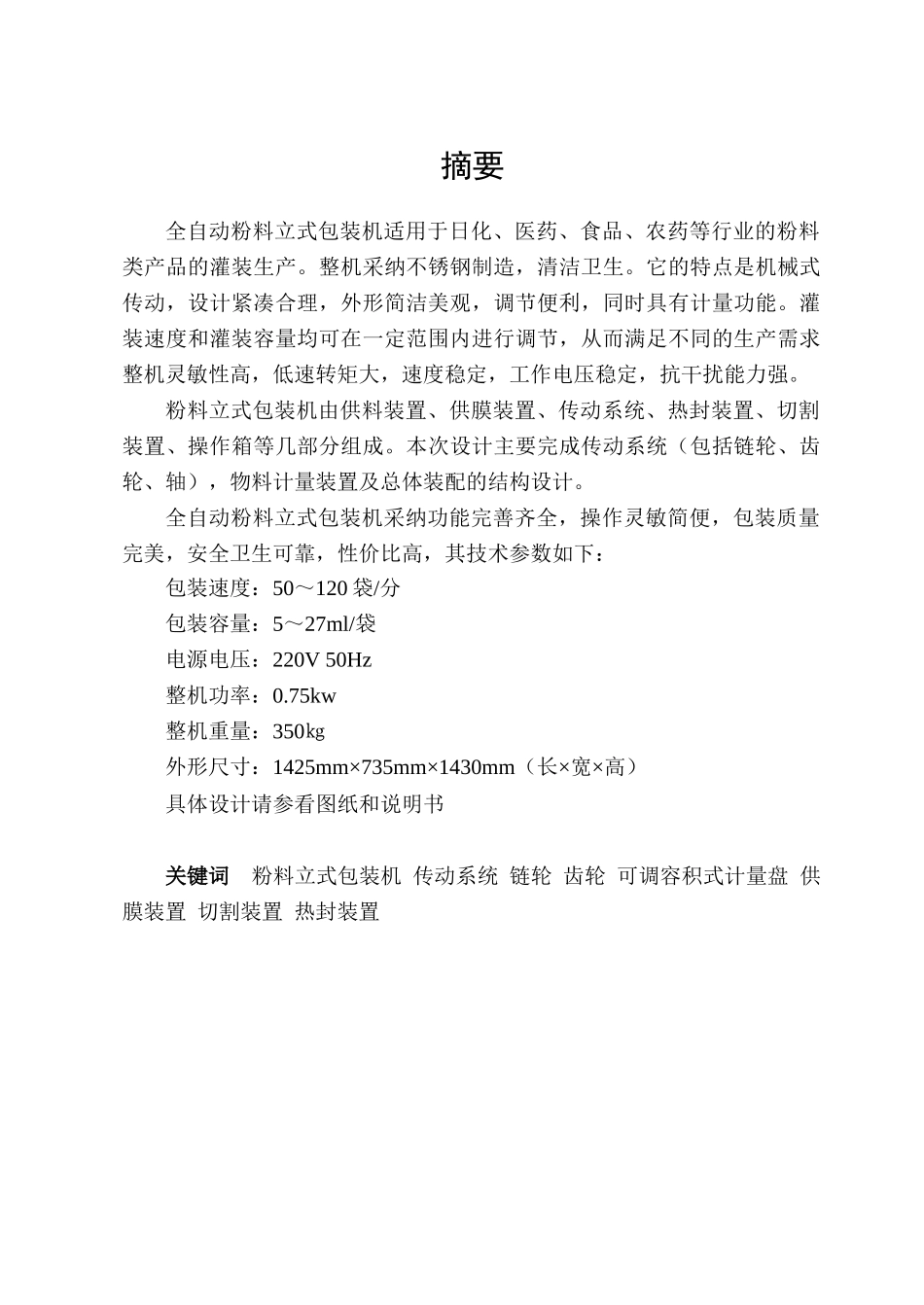

摘要全自动粉料立式包装机适用于日化、医药、食品、农药等行业的粉料类产品的灌装生产。整机采纳不锈钢制造，清洁卫生。它的特点是机械式传动，设计紧凑合理，外形简洁美观，调节便利，同时具有计量功能。灌装速度和灌装容量均可在一定范围内进行调节，从而满足不同的生产需求整机灵敏性高，低速转矩大，速度稳定，工作电压稳定，抗干扰能力强。粉料立式包装机由供料装置、供膜装置、传动系统、热封装置、切割装置、操作箱等几部分组成。本次设计主要完成传动系统（包括链轮、齿轮、轴），物料计量装置及总体装配的结构设计。全自动粉料立式包装机采纳功能完善齐全，操作灵敏简便，包装质量完美，安全卫生可靠，性价比高，其技术参数如下：包装速度：50～120 袋/分包装容量：5～27ml/袋电源电压：220V 50Hz整机功率：0.75kw整机重量：350㎏外形尺寸：1425mm×735mm×1430mm（长×宽×高）具体设计请参看图纸和说明书关键词 粉料立式包装机 传动系统 链轮 齿轮 可调容积式计量盘 供膜装置 切割装置 热封装置AbstractFull-automatic powder vertical modle packing machine is used for the consecutive filling of granuar products with varied viscosity in daily chemical industy, medicine,foodstuffs,pesticide and petrochemical industry. The whole machine,made of stainless steel,is clean and hygienic,and fully in compliance with the GMP requirements for medicine production.Its features are as follows: compact and reasonable design,and simple and attractive appearance,easy adjustments and accurate filling can be achieved and counting is provided.The filling range and speed could be adjusted and very simple .It has characteristics of start buffering,high flexibility,large torque at lower velocity,stable speed,,constant working voltage and antidisturbance. Full-automatic powder vertical modle packing machine is composed by material providing installlation,membrane providing installation,transmission system,sealing installation,cutting installation operating box and so on. This design mainly completes the transmission system...
